10. INSTALLATION OF THE
K2950SCHEDESS_02 KIT – COIN
OPERATED DRYERS
Install the CO6 connector only on coin
operated dryers. On the contrary, do not
install this connector, as the cable 3 and 0F
conducts 230V tension. These two cables are
used to supply the coin mechanism coil or the
electronic coin mechanism board. These two
cables must not be used for other purposes.
The coin mechanism wiring is composed by
two parts, one wiring inside the IM7 board
box (code: 6111123X, 6 poles green
connector), the other wiring is developed
outside the IM7 box and it reachs the
payment systems.
First of all, install the wiring identified by the
code 611123X inside the IM7 box, connecting
the green connector to the slot called CN19.

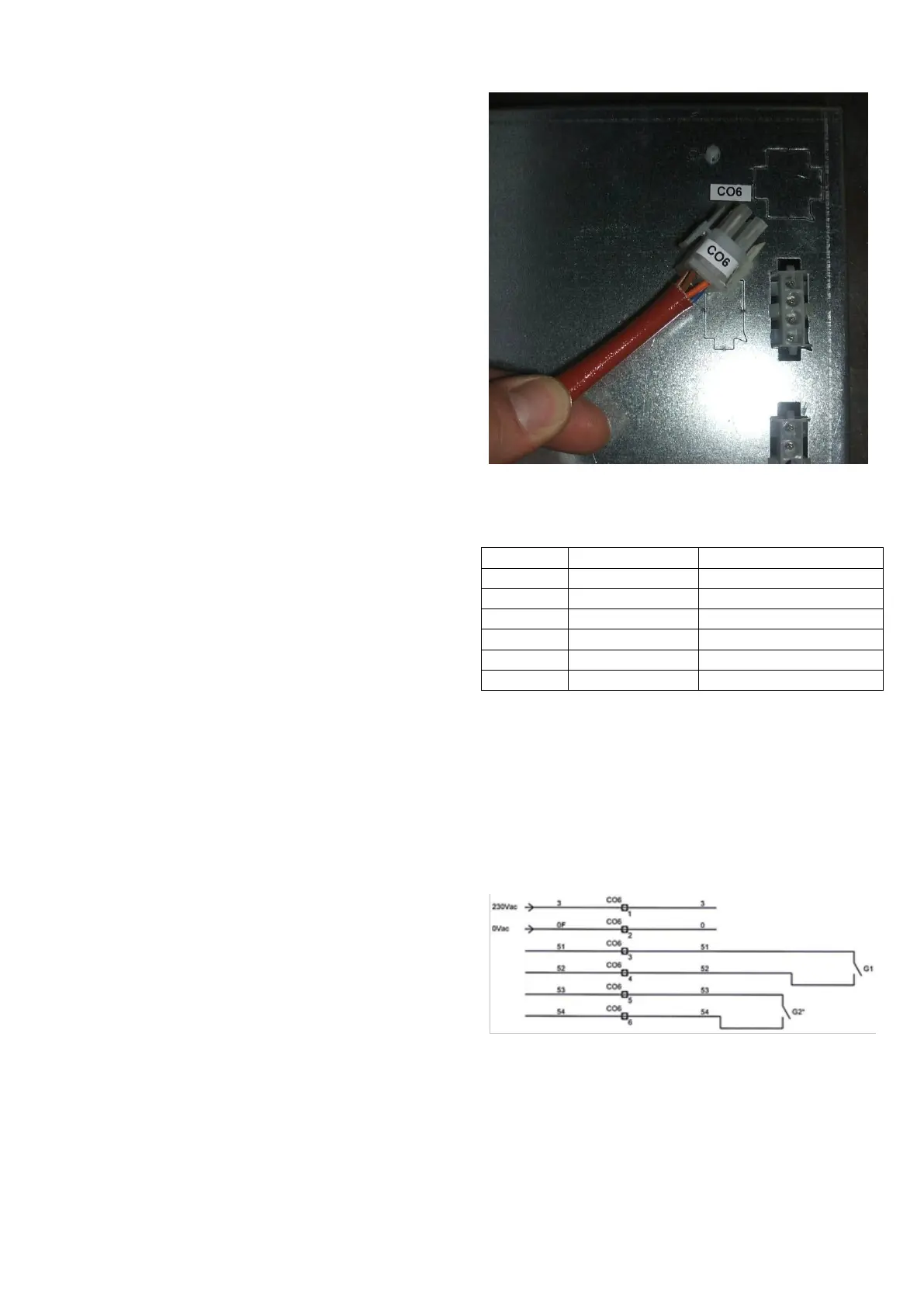

Pass the CO6 white female connector
through the dedicated hole (above CO5). The
cable nr 3 and nr 0 of the inside wiring must
be connected as show in the next table. The
cable nr 0 must be connected to the terminal
nr 2 of the connector CO9. The cable nr 3
must be connected to the terminal nr 3 of the
CO12.
Connect the sheathed wiring to the CO6
connector and reach the coin mechanism
installed on the machine.
The wiring of the connector CO6 must follow
the below chart:
Wire Nr
Coming from
Going to
" 3
CO6 – Pos 1
230V (max 0,5 A)
0F
CO6 – Pos 2
Neutral
43
CO6 – Pos 3
Common Coin 1
44
CO6 – Pos 4
Back Coin 1
45
CO6 – Pos 5
Common Coin 2
46
CO6 – Pos 6
Back Coin 2
Below the diagram.
Please note the “G1” and “G2” are two
different entrances dedicated to two different
payment systems. The entrance can be
programmed using the coin menu from the
control board. In the programming menu, the
entrances are called COIN 1 and COIN 2.
