Imesa ECC - Keypad and Display; Installation

K2950SCHEDESS_01 – K2950SCHEDESS_02 (E141203X)
25/08/2015
10
LABEL
FUNCTIONS
VE
Ventilation
RMVE
Fan thermal protections
SX
(*)
Left drum rotation
DX
(*)
Right drum rotation
RMMO
(*)
Drum thermal protections
(*) only in case of reversing drum
c) Insulate the cable which bring the 230V
common to the 95 NC contact of the
RMVE thermal device. In case the
machine is reversing drum equipped, open
the series with the 95NC second contact of
the RMMO thermal device.
ATTENTION
Original cable must only be insulated,
they must not be cut from the original
wiring. They should stay into the electric
board even if not used.

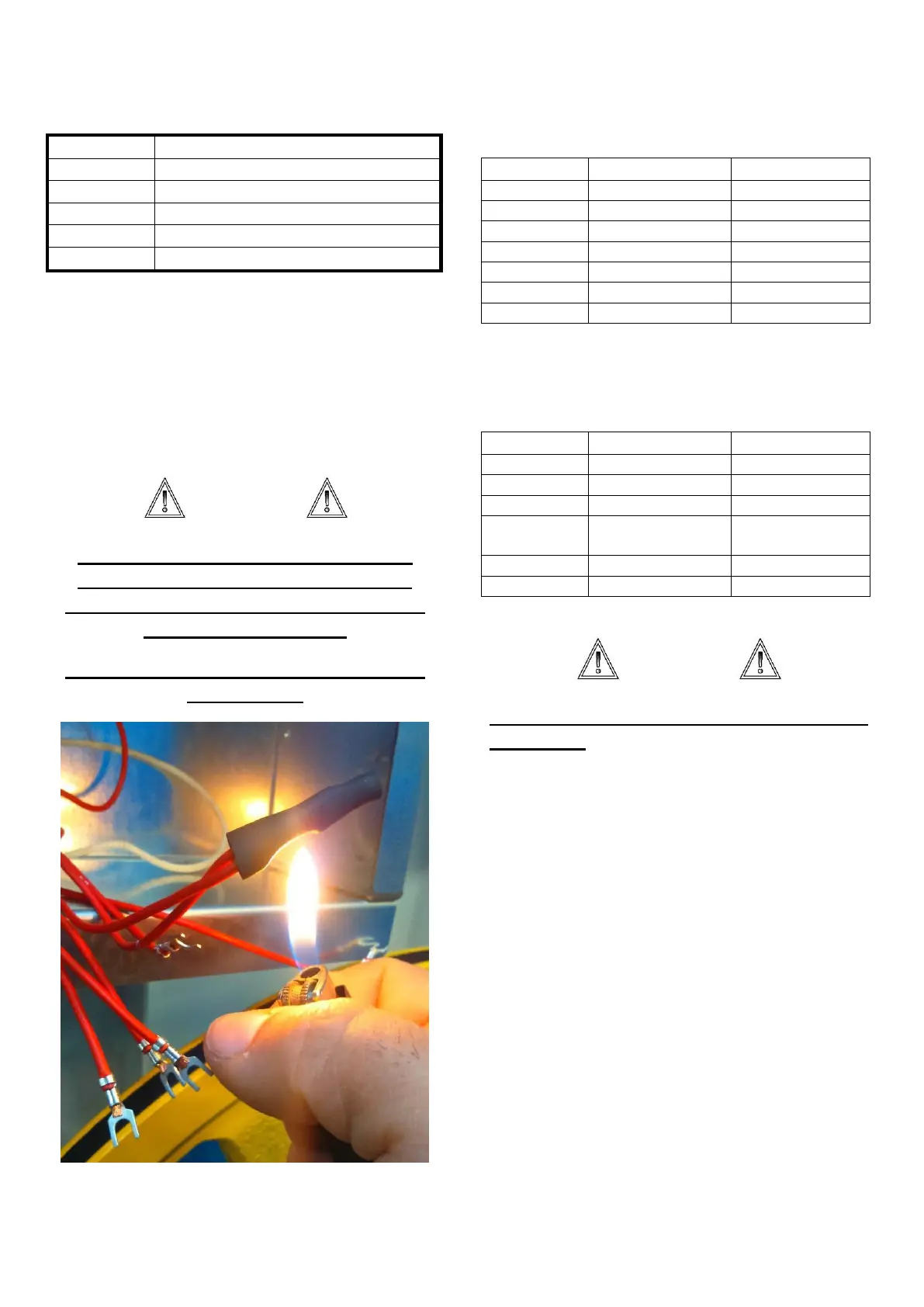

To insulate the cable use a shrink tubing
and a lighter.
d) The cables coming from the connector
CO9 must be wired as per the bellow table:
Cable No.
Coming from
Going to
53
CO9 – Pos 3
95NC - RMVE
54
CO9 – Pos 4
21NC – SX
55
CO9 – Pos 5
22NC – DX
56
CO9 – Pos 6
97NO – RMVE
57
CO9 – Pos 7
97NO – RMMO
58
CO9 – Pos 8
98NO – RMMO
59
CO9 – Pos 9
98NO – RMVE
e) The kit is comprehensive of single
connectors to be used to interconnect the
contactors and the main terminals:
Cable No.
Coming from
Going to
61
A2 – VE
96NO – RMVE
62
A2 – SX
21NC – DX
63
A1 – DX
22NC – SX
0C
N (blue main
inlet terminal)
95NC - RMMO
0D
A2 – DX
A1 – SX*
0D
A1 – SX *
96NC - RMMO
ATTENTION
If the machine is not reversing drum
equipped, the contactors SX and DX and
the thermal contactor RMMO are not
present. Therefore the cables referring to
the contactors SX, DX and RMMO must be
insulated, as not used.
Please go back to paragraph 7 to fit the new
temperature probe.
9. KEYPAD AND DISPLAY
INSTALLATION
a) Stick the keypad (code: 4141103X) on
the dedicated squared iron support (code:
2141141X). The flat cable must be
passed through the dedicated hole,
paying attention not to arm it.
