K2950SCHEDESS_01 – K2950SCHEDESS_02 (E141203X)
9
d) See the contactor connection instructions
given at the paragraph 8.

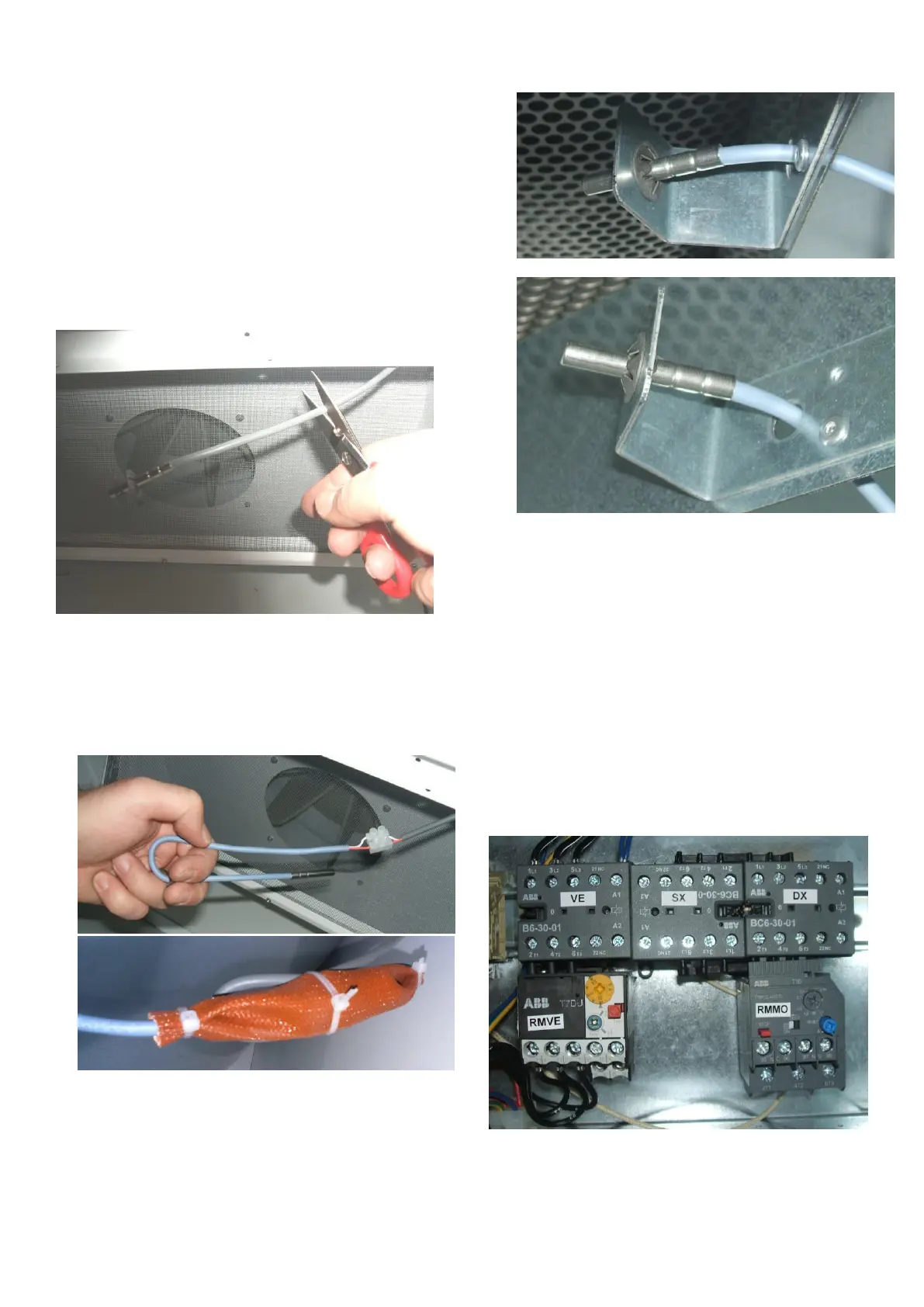

e) Remove the original probe saving the
cable: only the last 15 cm of the cable
must be cut. Save the probe bulb and the
elastic washers needed to fix the new
probe to the dedicated bracket.
f) Join the new probe using the supplied two
ways borne. The cable colours have no
effect. Protect the borne with the red glass-
silicone sheath, to avoid the contacts
oxidation.
g) Fix the new probe in the previous position
using the elastic washers and recover the
exceeding cable.
8. INSTALLATION OF THE KIT
K2950SCHEDESS_01 – CONTACTORS
CONNECTION
a) Pass the cables through the dedicated
place behind the electric board. Enter
inside the electric board using the heating
wiring opening.
b) Label the contactors and the thermal
protections devices as shown by the next
picture:
