K2950SCHEDESS_01 – K2950SCHEDESS_02 (E141203X)
8

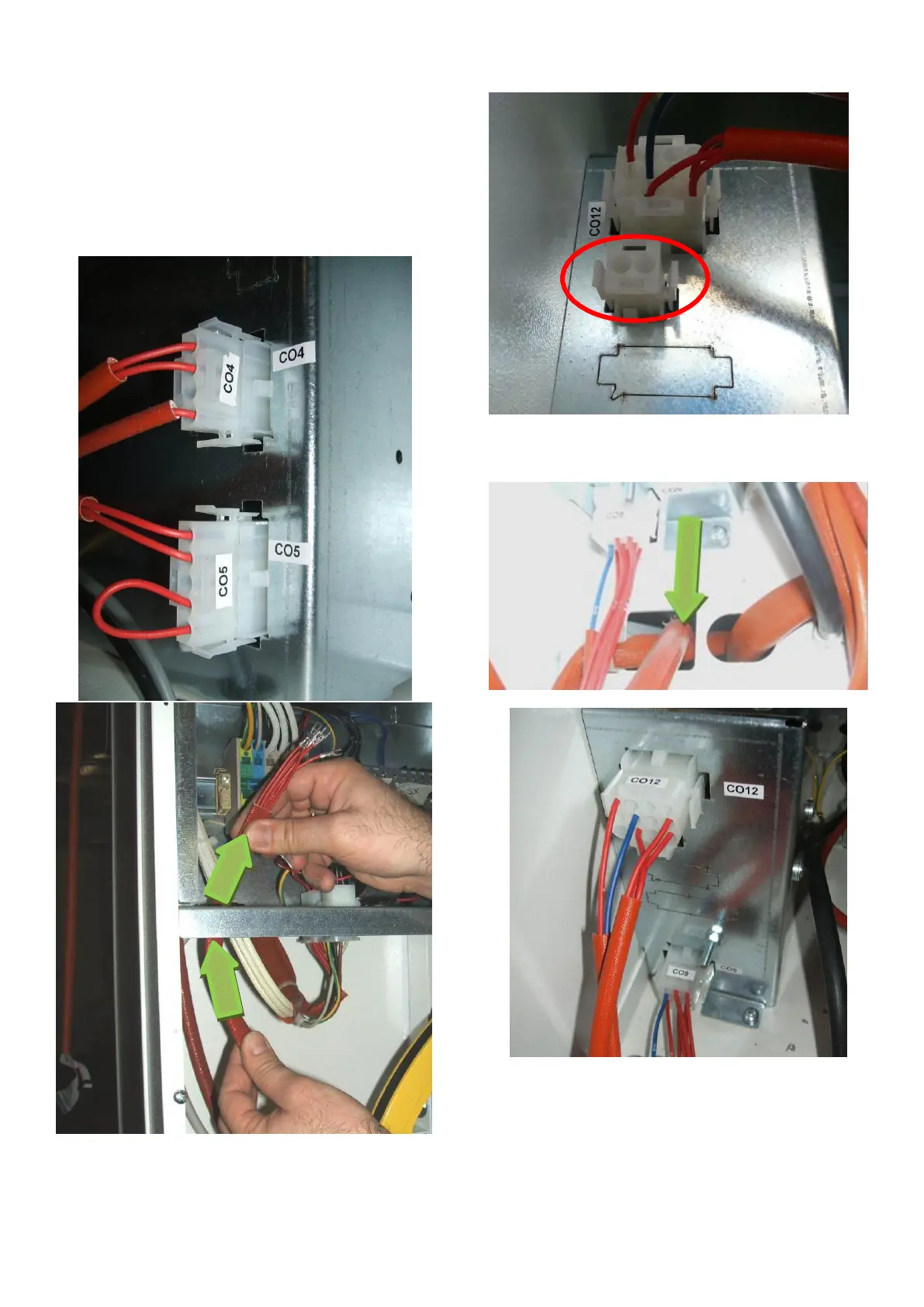

b) Connect the “CO” male connectors to the
correspondent “CO” female connectors of
the IM 7 board box. The 2 poles connector
near CO12 will not be used; it must be
closed with the supplied white empty
connector.
c) Pass the wiring coming out for the CO9
connector through the back box holes.
To Next Page
