K2950SCHEDESS_01 – K2950SCHEDESS_02 (E141203X)
7

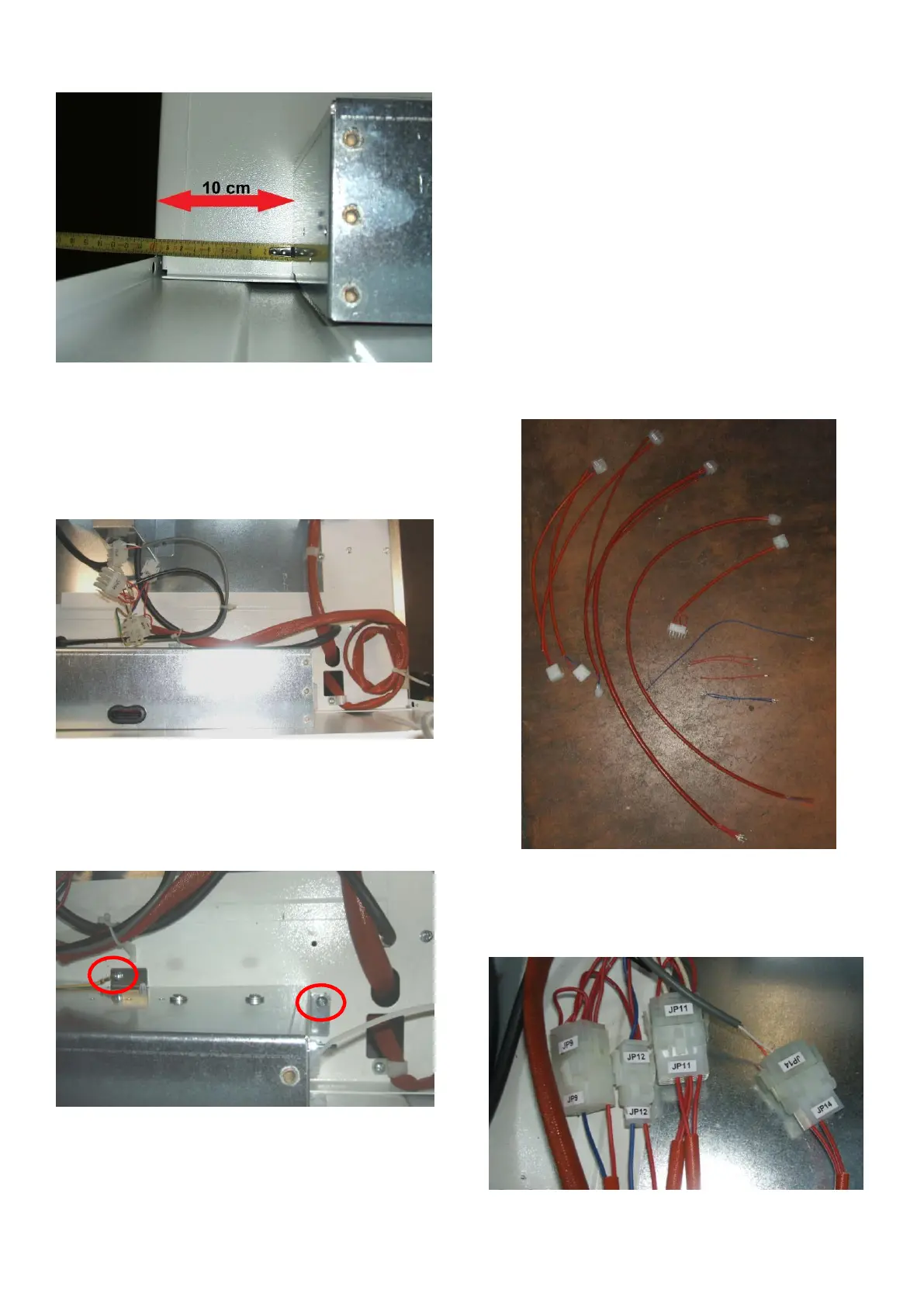

h) Use the plastic ring support to maintain
order in the original wiring. To fix the new
plastic ring to the shelf, hole the shelf using
a 4mm drill. The new wiring hold will keep
also the new wiring.
i) Fast the IM7 control board using the
supplied self-drilling screw. Be sure the
box is grounded by means of the
connector eyelet.
7. INSTALLATION OF THE KIT
K2950SCHEDESS_01 – ECC/IM7
CABLING (6141102X)
The wiring supplied with the kit is completed
with some interconnections to adapt the old
machine connection to the new IM 7 control.
The wiring code 6141102X was supplied
complete of labelled connectors and
numbered cables. Each connector and cable
can be easily recognized if compared with the
electric diagram reported at the end of these
instructions.
a) Connect the JP female connectors of the
new wiring to the JP male connects of the
old wiring.
