Immergas VICTRIX 24 kW - VICTRIX 24 kW Main Components

5
STVkW ed 07/08 VICTRIX 24 kW Export
Technical Documentation
Technical Documentation

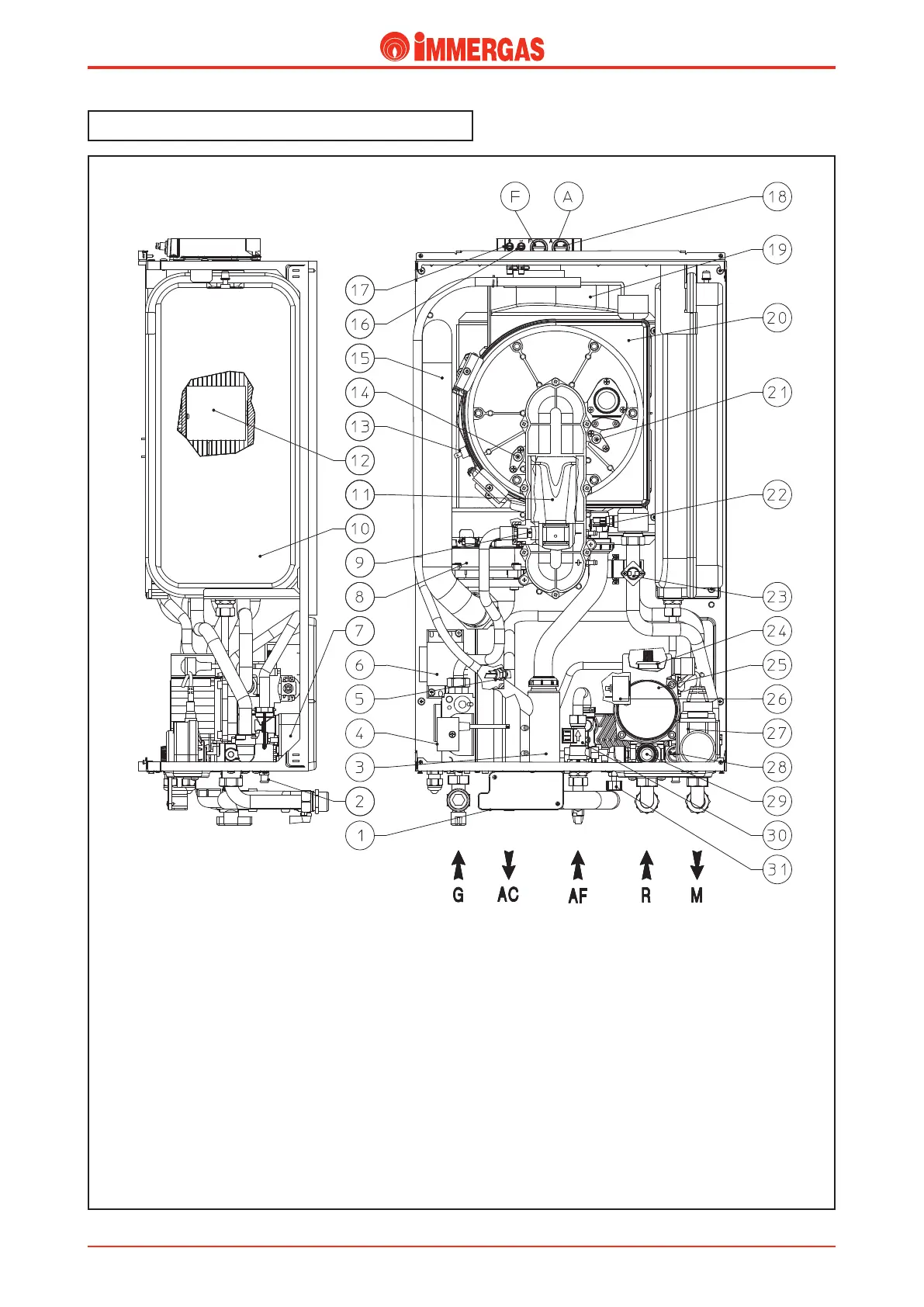

VICTRIX 24 kW main components.
Legend:
1 - Electrical connection terminal block
(extra low voltage)
2 - System draining cock
3 - Condensate siphon
4 - Gas valve
5 - D.H.W. probe
6 - Voltage transformer
7 - D.H.W. exchanger
8 - Fan
9 - Gas nozzle
10 - System expansion vessel
11 - Venturi
12 - Burner
13 - Flue safety thermostat
14 - Detection electrode
15 - Air intake pipe
16 - Pressure point, negative signal
17 - Pressure point, positive signal
18 - Testing holes (air A) - (fumes F)
19 - Draught diverter
20 - Condensation module
21 - Ignition electrodes
22 - Delivery probe
23 - Safety thermostat
24 - Automatic air vent
25 - Boiler circulator
26 - System pressure switch
27 - 3-way valve (motorised)
28 - Automatic by-pass
29 - 3-bar safety valve
30 - D.H.W. ow switch
31 - System lling valve
