Immergas VICTRIX 24 kW - VICTRIX 24 kW X Main Components

6
STVkW ed 07/08 VICTRIX 24 kW Export
Technical DocumentationTechnical Documentation

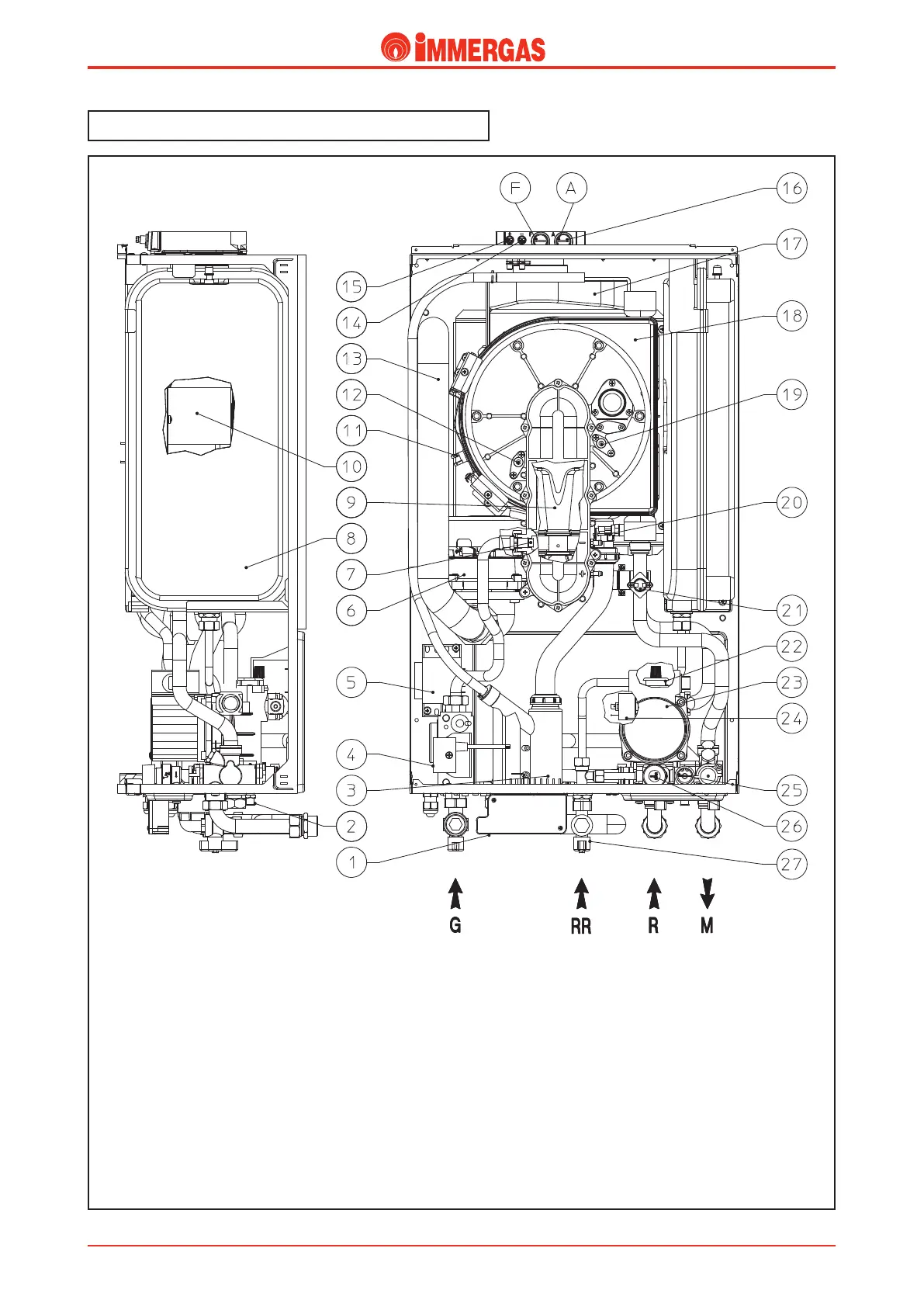

VICTRIX 24 kW X main components.
Legend:
1 - Electrical connection terminal block
(extra low voltage)
2 - System draining cock
3 - Condensate siphon
4 - Gas valve
5 - Voltage transformer
6 - Fan
7 - Gas nozzle
8 - System expansion vessel
9 - Venturi
10 - Burner
11 - Flue safety thermostat
12 - Detection electrode
13 - Air intake pipe
14 - Pressure point, negative signal
15 - Pressure point, positive signal
16 - Testing holes (air A) - (fumes F)
17 - Draught diverter
18 - Condensation module
19 - Ignition electrodes
20 - Delivery probe
21 - Safety thermostat
22 - Automatic air vent
23 - Boiler circulator
24 - System pressure switch
25 - Automatic by-pass
26 - 3-bar safety valve
27 - System lling valve
