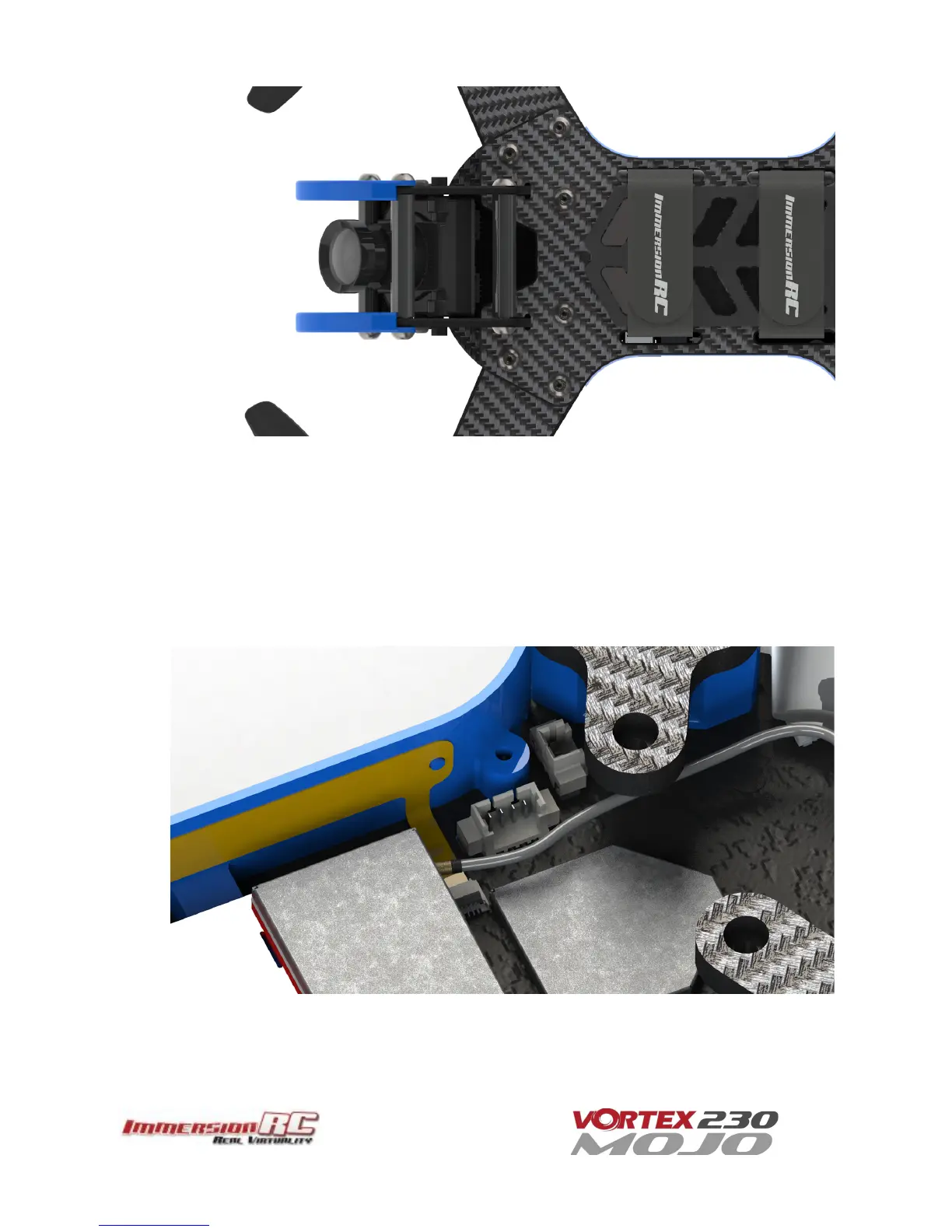

4) Receiver Connector (All Protocols, CPPM, SBus, DSMX™, etc.)
The Vortex 230 Mojo has a single connector for all supported receivers. 5V and 3.3V power supplies are
available, to support most of the commonly used receivers on the market today. In most cases, one of
the supplied cables will suffice, but if a cable must be built, the pinout is (from left to right) Signal, GND,
+3.3V and +5V.




