Immersion RC Vortex 230 Mojo - Arm a Ssembly; Camera Mounting



Arm Assembly
When changing an arm, a soldering iron is required, to remove the ESC + and - battery cables, along with the
signal cable.
Note: The choice of soldered connections here, instead of the much more convenient connector option
may not seem ideal, but this is the best way to transmit the 30+ Amps of battery juice to the ESCs and
motors without losses.

Camera Mounting
Flight Camera
The Vortex 230 Mojo is equipped with a state-of-the-art FatShark CCD camera featuring a Sony CCD and Sony
chipset which puts it a step up over other popular FPV cameras.


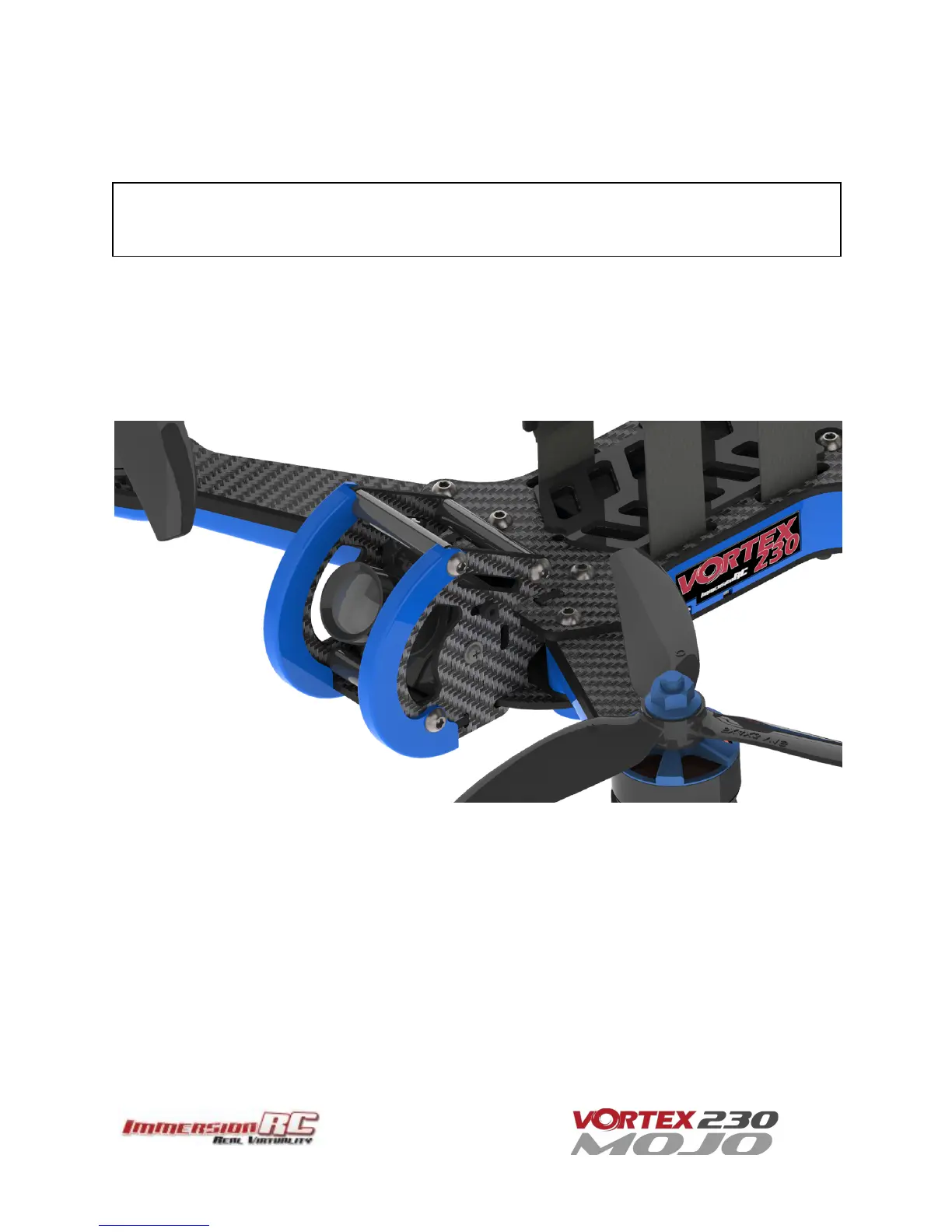

Note that the camera tilt is adjustable. Loosen the two upper-screws and tilt the camera to the desired angle,
before re-tightening them.
OSD Camera Control: The Vortex 230 Mojo is able to control the camera settings directly from the Vortex OSD,
so no need for external cables with switches etc. to set it up.



9


