DI-AC Media Flat-Filter
IMS’ DI-AC Filters are 1.12 oz Woven White Nylon monofilament providing excellent air-flow and filtration for particles as
small as 55 micron.
Pleated Cartridge Filter
IMS Pleated Filters are Ø5-½” x 6” or 12” long (Standard lengths) Closed-end Cartridges with a Spun-bond 225 Thread-
count Non-woven White Polyester Pleated media exhibiting excellent air-flow and filtration for particles as small as 2-
microns. Cartridges provide either 5.5-ft² (6” tall) or 11-ft² (12” tall) filter area. Each Cartridge has a Galvanized Steel
Closed-End Bottom Cap & Open-ended Top Cap with two Mounting Studs and is supplied with a Mounting Gasket.
Options to our Standard Cartridges include, but are not limited to: PTFE-coated media, High-temperature rated media,
Food-grade media and Stainless-steel End Caps as well as various Cartridge lengths to suit special cloth-to-air ratio
applications providing up to 22-ft² filter area.
The Filter may be adequately cleaned with a vacuum cleaner, blast of air, or (in extreme cases) washed with a mild
detergent and warm water. Please refer to the Filter Maintenance section of this Manual for further details.
DO NOT SUBSTITUTE FILTER MEDIA WITHOUT DISCUSSING YOUR APPLICATION
WITH A IMS APPLICATION ENGINEER OR CUSTOMER-SERVICE REPRESENTATIVE
GASKETS
Filters & Tubesheets
PLVP, VP and Standard models utilize Flat disc-type Filters. Proper
Membrane-type Filter installation incorporates a
Gasket (e-shaped cross-section) placed around the periphery of Filter to
make an air-tight seal between the Loader Body & Cover Assembly.

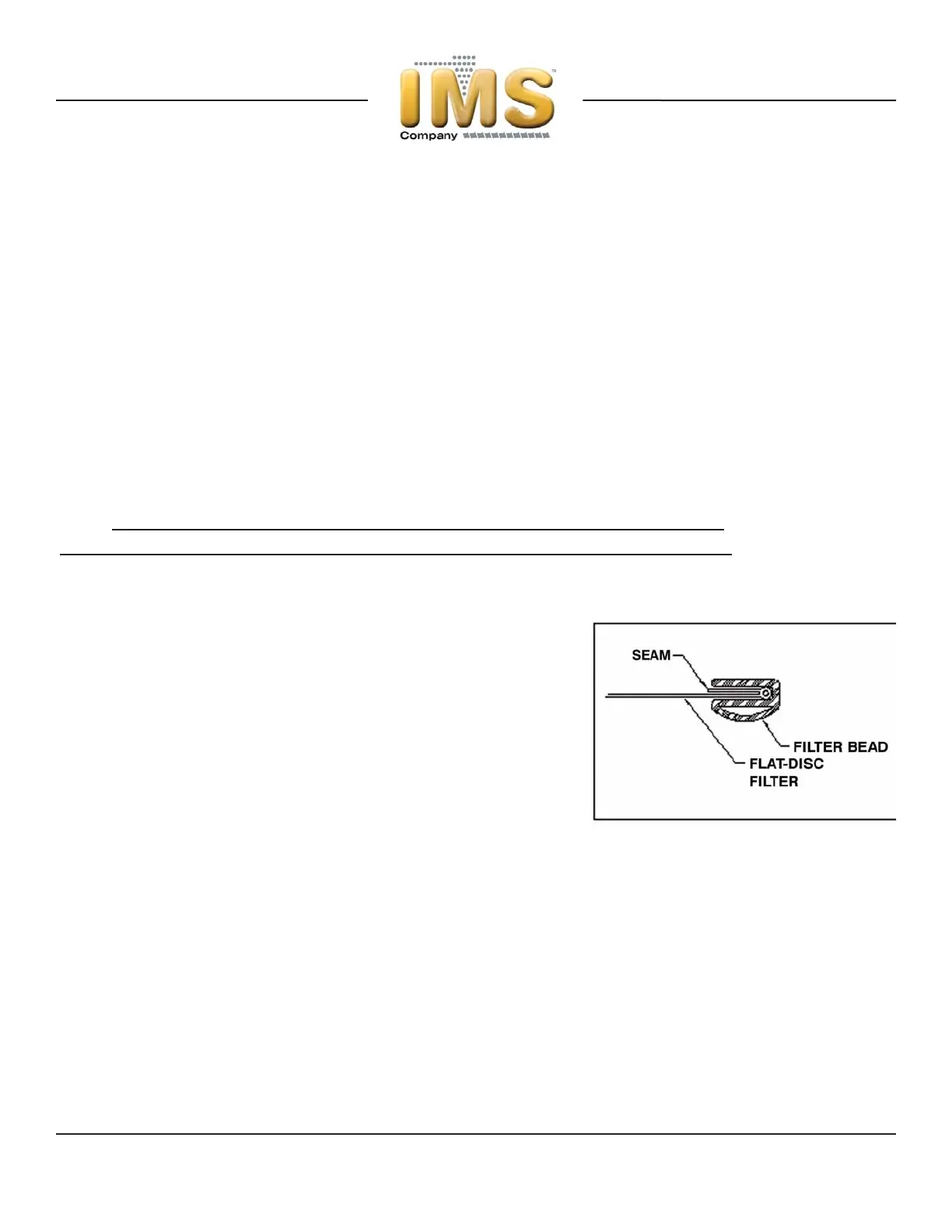

When re-installing Flat-Disc type Filters ensure the Filter’s periphery is first
installed in the slot of the Gasket with Filter seam-side facing up/smooth-side
down (away from the motor). The Gasket orientation will be flat-side facing
up/curved-side down (see diagram).
PL model loaders have cylindrical Pleated Filter Cartridge(s) installed. Each Cartridge is first mounted onto the
Tubesheet using the Filter-mount Gasket provided. The Tubesheet will a Body-to-Lid Gasket (e-shaped cross-section)
installed on the perimeter of the Tubesheet prior placing Filter/Tubesheet Assembly into the Loader’s Body. The Loader’s
Lid can now be set in pace and secured with the draw-type Latches.
When re-installing Cartridge-type Filters, mounted on a Tubesheet, the Tubesheet Gasket is installed with the flat-side
facing up (towards the Motor – away from Loader Body).
Motor
Motor-mount Gasket is affixed to the top surface of the Lid. The Motor is then installed atop Gasket to seal.
The Gasket ensures proper channeling of the Vacuum-conveying air up through Cover & Motor Assemblies.
© Copyright 2007 IMS Company. All rights reserved. An ISO 9001:2000 Registered Quality Company
11
