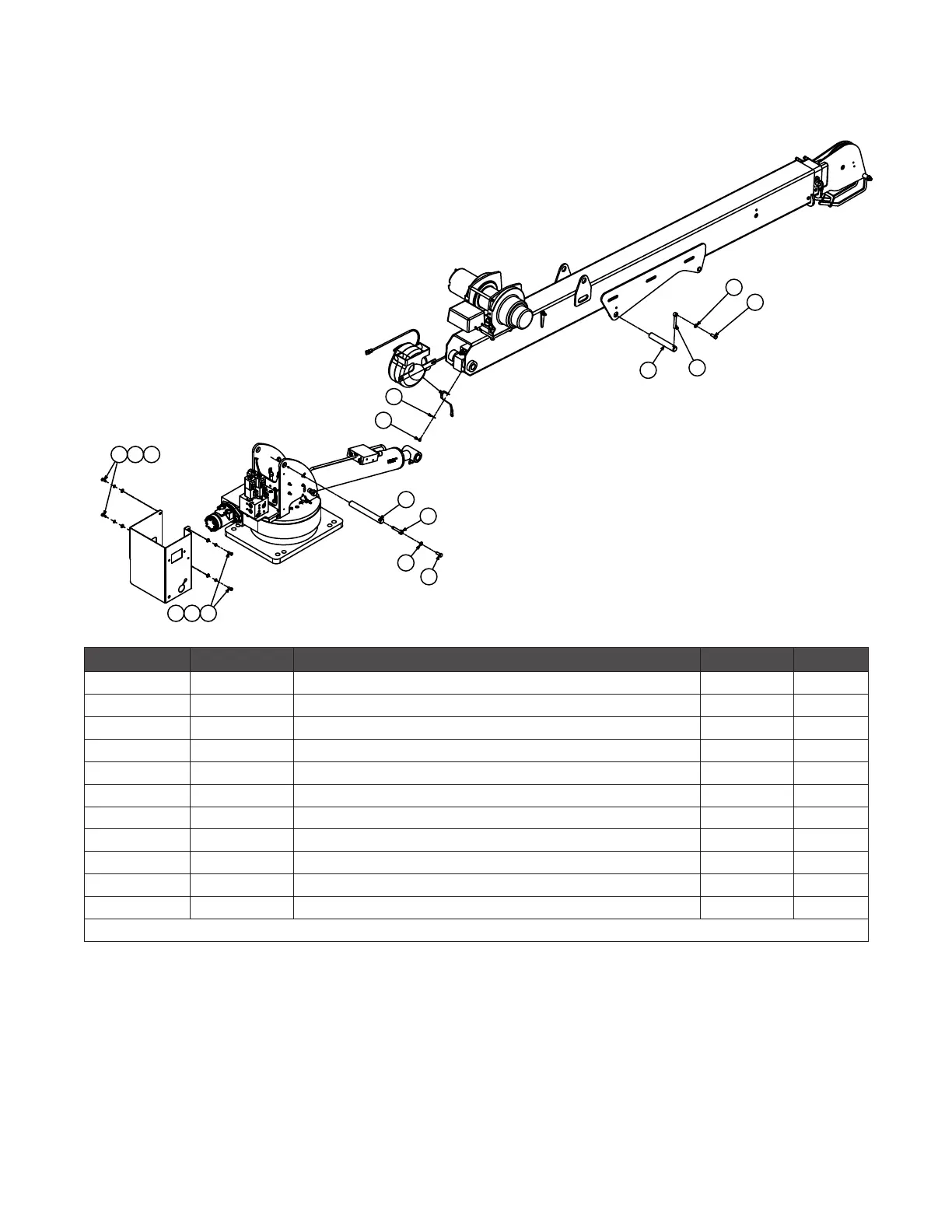

IMT 4004i Parts & Specifications

Parts 37 Section - 4
4004i - Manual # 99904386
99904327-1
ITEM NO. PART NO. DESCRIPTION KIT NO. QT Y.
3. 51721321 KIT-HRDW 3203I CRANE & WINCH 1
14. 72060002 CAP SCR .25-20X .75 HH GR5 Z 3 4
15. 72060046 CAP SCR .38-16X 1.00 HH GR5 Z 3 2
22. 72063001 WASHER .25 FLAT 3 7
23. 72063002 WASHER .31 FLAT 3 3
25. 72063049 WASHER .25 LOCK 3 6
26. 72063051 WASHER .38 LOCK 3 2
31. 72601941 SCR-MACH .25-20X .38 BTNHD ZC 3 1
37. 60140618 PIN-TYPE NN 1.00 X 8.25 1
38. 71415014 KEEPER-PIN .38 2
39. 60140617 PIN-TYPE NN 1.00 X 6.50 1
REV. X CN885
NOTES:
1. Use anti-seez on pins.
2. All electrical grounds must be free of paint, grease, and oil.
3. If required use (72063033) machny bushings between mast and boom when installing pin, 60140618.
26
15
26
15
12
23
31
14 25 22
142522
39
38
37
38
