IMT 4004i Parts & Specifications

Parts 56 Section - 4
4004i - Manual # 99904386

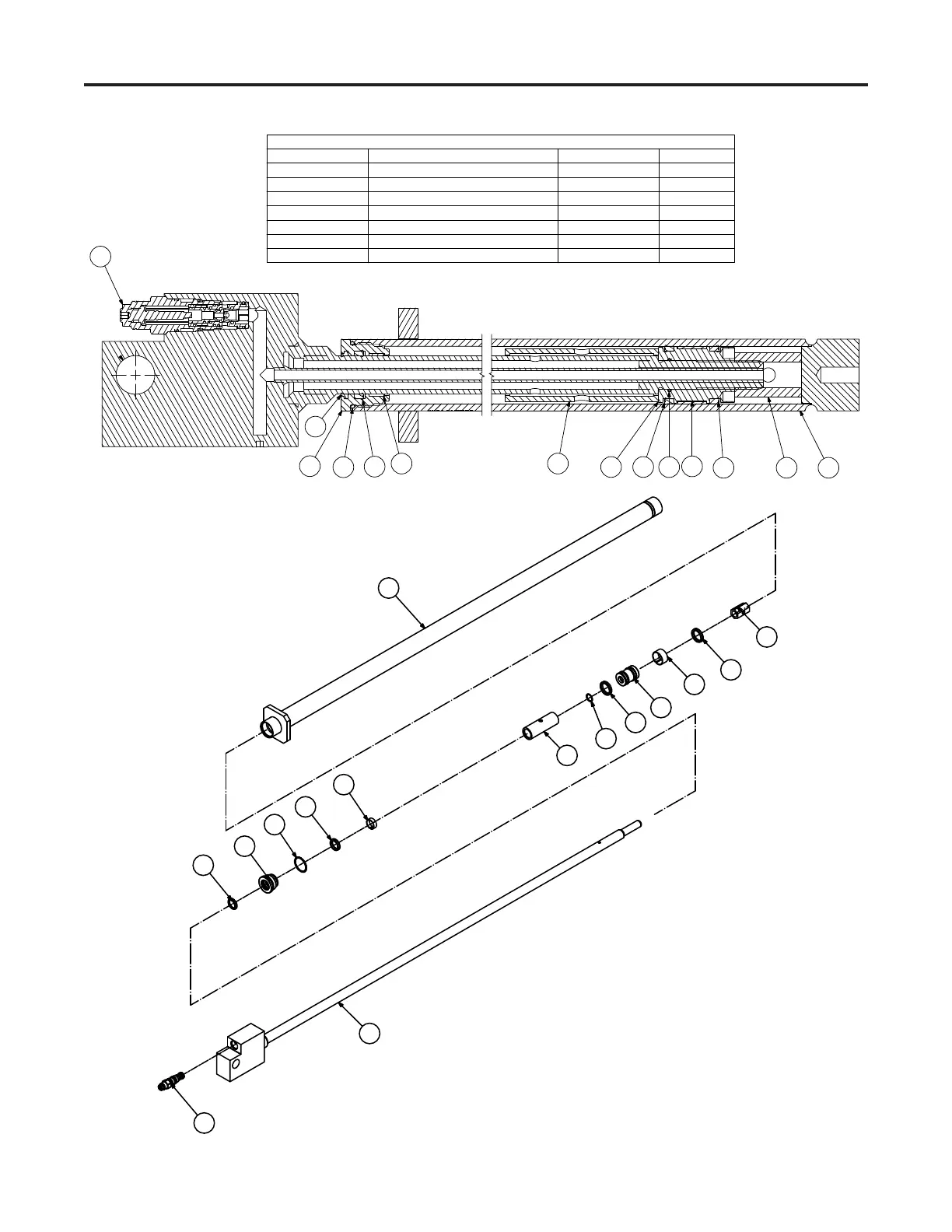

Cylinder, Extension (51722111)
SECTION A-A
8
CYLINDER DATA
EXTEND:
RETRACT:
CASE:
ROD:
STINGER:
CYL. STROKE:
LOCKNUT TORQUE: CAP SCR TORQUE:
CARTRIDGE TORQUE:
HEAD TORQUE:
PISTON TORQUE:
BRG. SPAN:
TEST PSI:
OPER. PSI:
DRY WEIGHT:
1.77 SQ IN X 0.37 GAL
0.98 SQ IN X 0.20 GAL
Ø1.88 OD X Ø1.50B X 58.25LG
Ø1.00 OD X 61.38LG
Ø0.75 X 2.750LG
48.00"
100-130 FT-LB
36.45 LBS
11.7%
3000 PSI
2500 PSI
100-130 FT-LB
200 FT-LB
30-35 FT-LB
NA
4
15
11
12
10 6
7
13
9
13
5
3
14
11
4
15
12
10
6
13
7
9
13
5
8
3
2
14
