12 Page 12 - 4 Tank Sentinel Setup Programming Guide
LN Line (leak) Tests Menu ( Continued... )
* Only the No. of lines that are programmed in System menu are displayed
FAIL OG (Will go Active when any (3 gph, 0.2 gph, and 0.1 gph)
LINE TEST FAIL OUTPUT GROUP Line Leak Test fails)
LINE 1
LINE 2 * Press ( M ) key to select a LINE#.
:
* Use UP/DOWN ▲ ▼ keys to show more choices.
LINE 8
*
LINE TEST FAIL OUTPUT GROUP N (32 Output Groups (OGs) available... See Worksheet 12-1)
NONE Not assigned to an Output Group (OG).
GROUP A-FF One OG selected (A=1st OG, FF=32nd OG)
ALL GROUPS All OGs selected
Use UP/DOWN ▲ ▼ keys to choose an OG.
Press
ENTER to accept this data.
FAULT OG (Will go active when a fault (TS-LLD flashing alarm
LINE TEST FAIL OUTPUT GROUP error-code) occurs)
LINE 1
LINE 2 * Press ( M ) key to select a LINE#.
:
* Use UP/DOWN ▲ ▼ keys to show more choices.
LINE 8
*
LINE TEST FAULT OUTPUT GROUP N (32 Output Groups (OGs) available... See Worksheet 12-1)
NONE Not assigned to an Output Group (OG).
GROUP A-FF One OG selected (A=1st OG, FF=32nd OG)
ALL GROUPS All OGs selected
Use UP/DOWN ▲ ▼ keys to choose an OG.
Press
ENTER to accept this data.

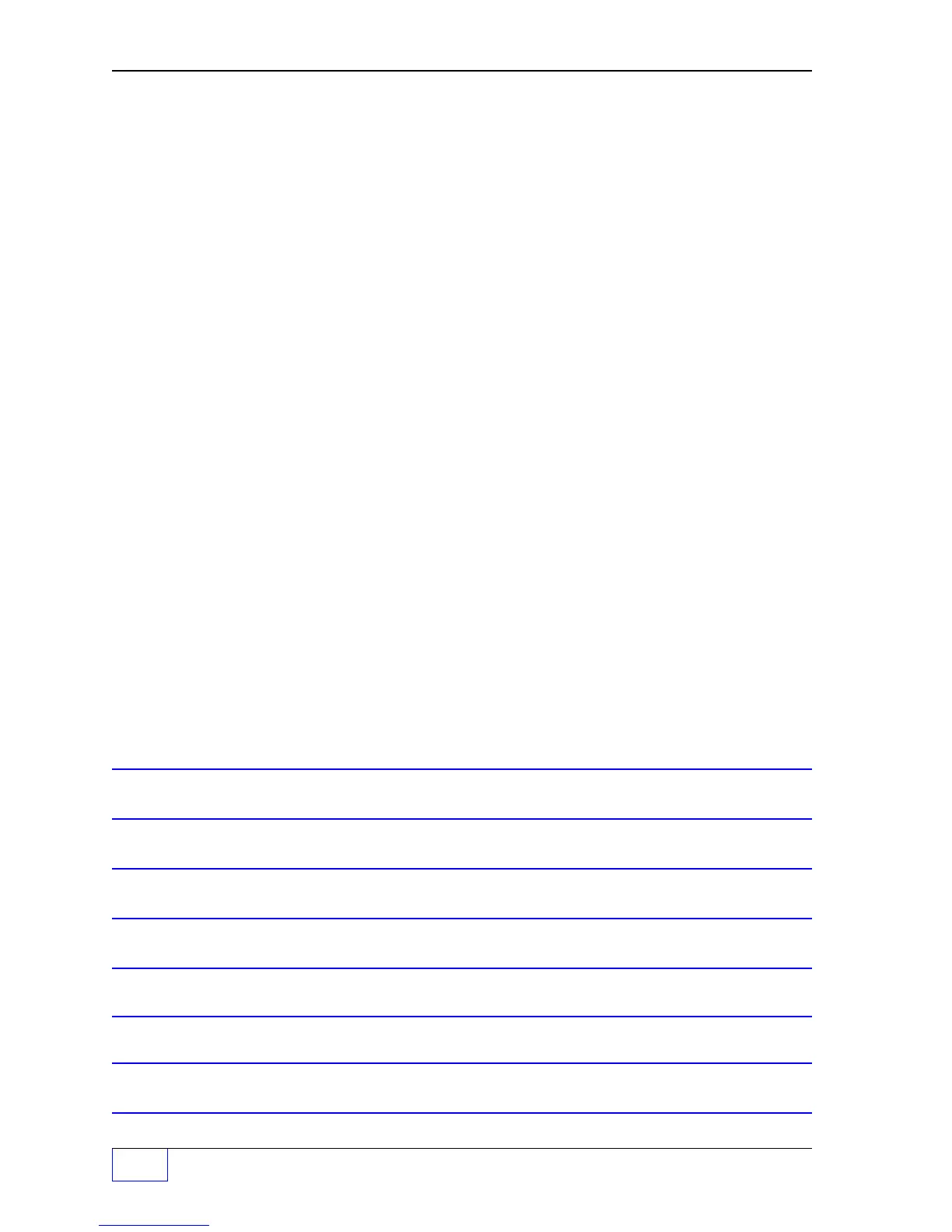

— Your Notes —
