Using Keyrah V3
3. Using Keyrah V3
3.1 Keyboards
3.1.1 Matrix Connectors

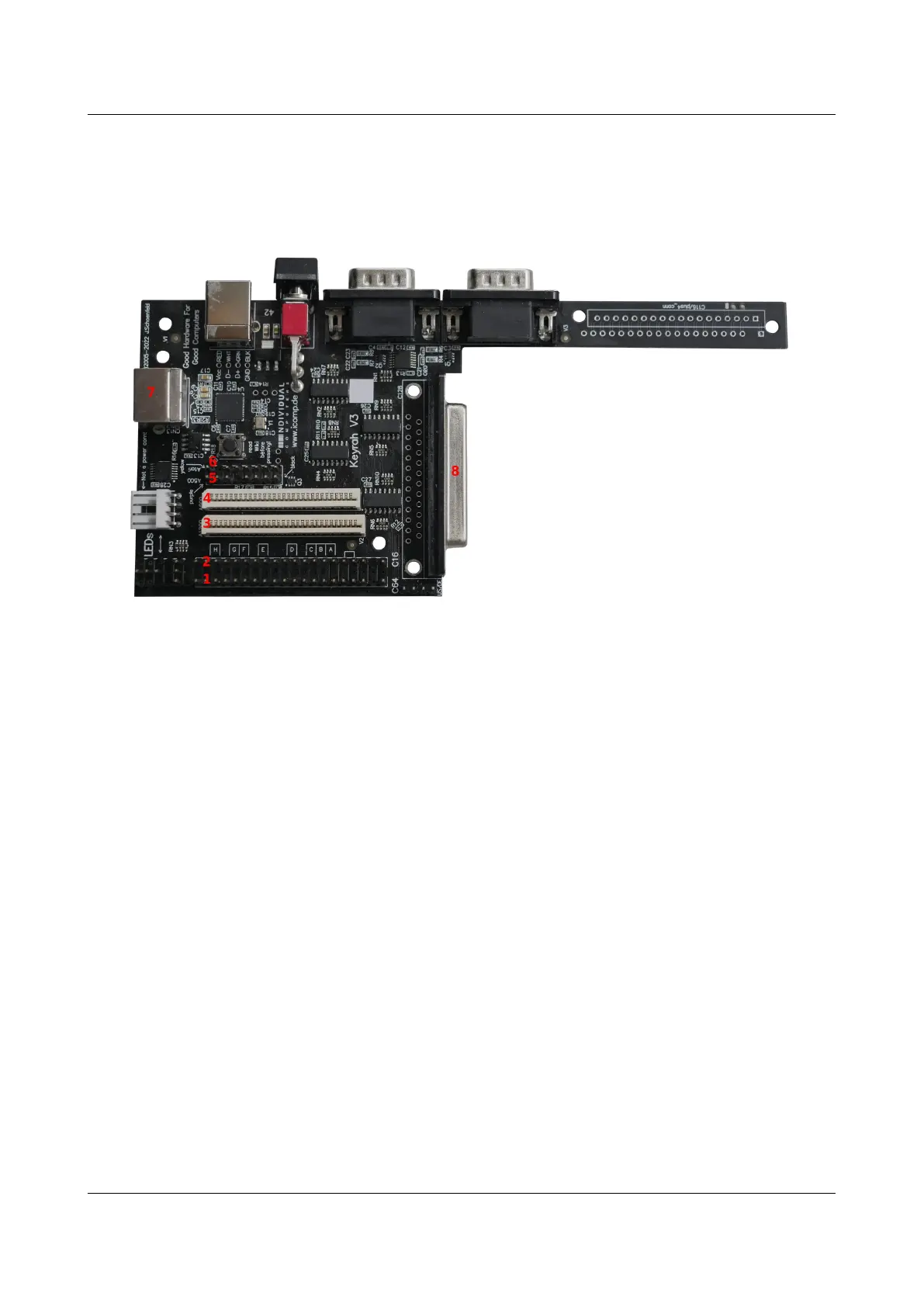

Some keyboards can be connected to one of the matrix connectors on the Keyrah v3 board:
• (1) VIC20, C64
• (2) C16
• (3) Amiga 1200
• (4) Amiga 600
3.1.2 Serial Connectors
• (5) Amiga 500, Amiga 2000
• (6) Atari ST
3.1.3 PS/2 Connector
(7) The PS/2 connector can be used for these keyboards:
• Amiga 4000,
• Amiga 2000, A3000 via DIN to PS/2 Adapter
• PC (AT) via DIN to PS/2 Adapter
• PC (XT) via DIN to PS/2 Adapter
• PS/2
