Using Keyrah V3
3.3 Joystick Ports

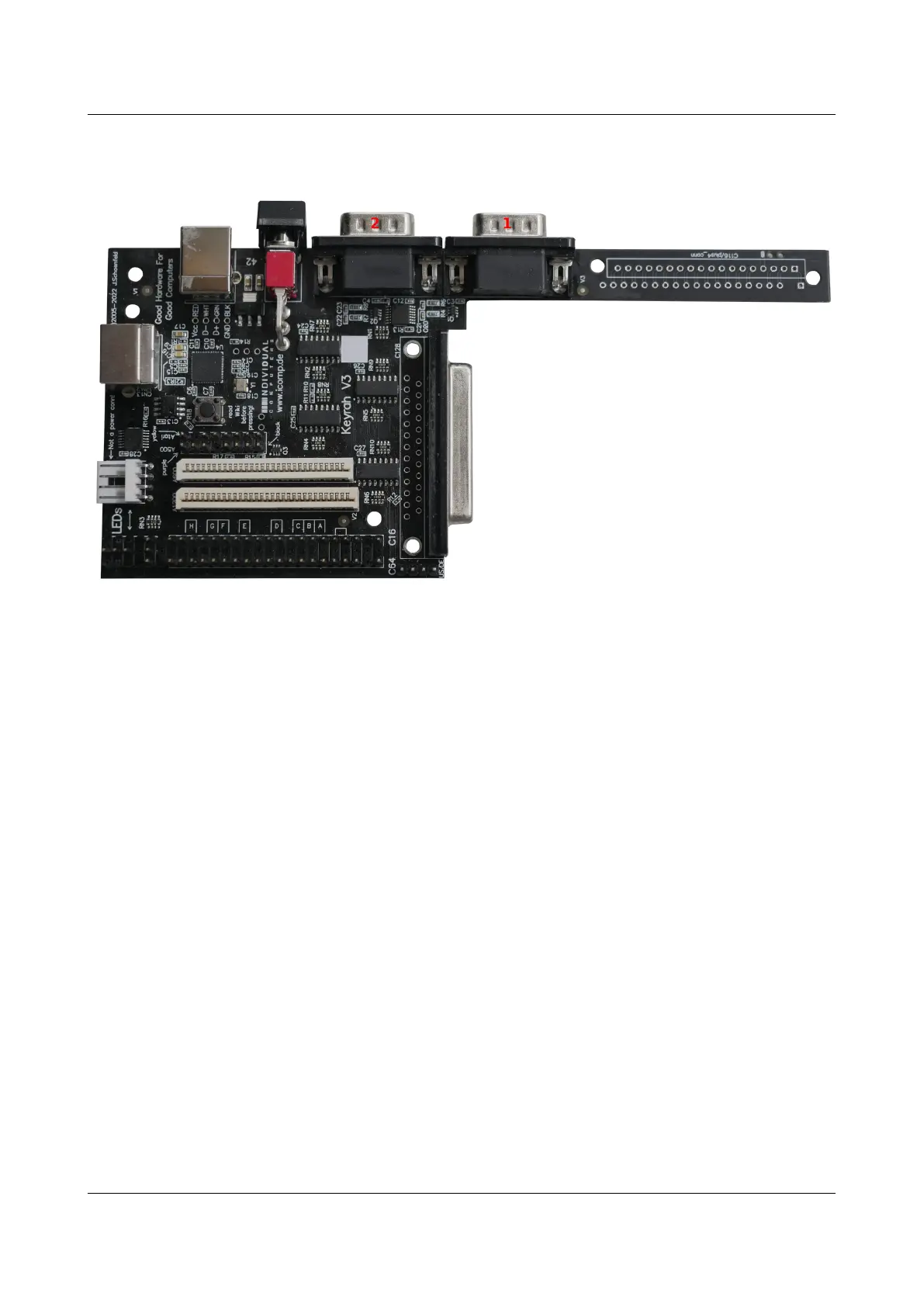

Each Joystick Port will appear as a separate HID game controller.
(1) The connector further from the power switch is “Port 1”
(2) The connector next to the power switch is “Port 2”
The following devices are currently supported:
• Standard DE9 joysticks
◦ The directions are mapped to the 1
st
and 2
nd
controller axis.
◦ The button is mapped to the 1
st
controller button.
◦ Additionally “C64 GS Style” 2
nd
and 3
rd
joystick button (connected between POTX/Y
and VCC) will be mapped to 2
nd
and 3
rd
controller button
• Standard “Commodore” paddles (470 kOhm)
◦ The paddles are mapped to the 3
rd
and 4
th
controller axis.
◦ Note that the paddle buttons will appear as “left” and “right” just like on a C64
9
