Using Keyrah V3
3.5 Jumpers
3.5.1 Keymap select

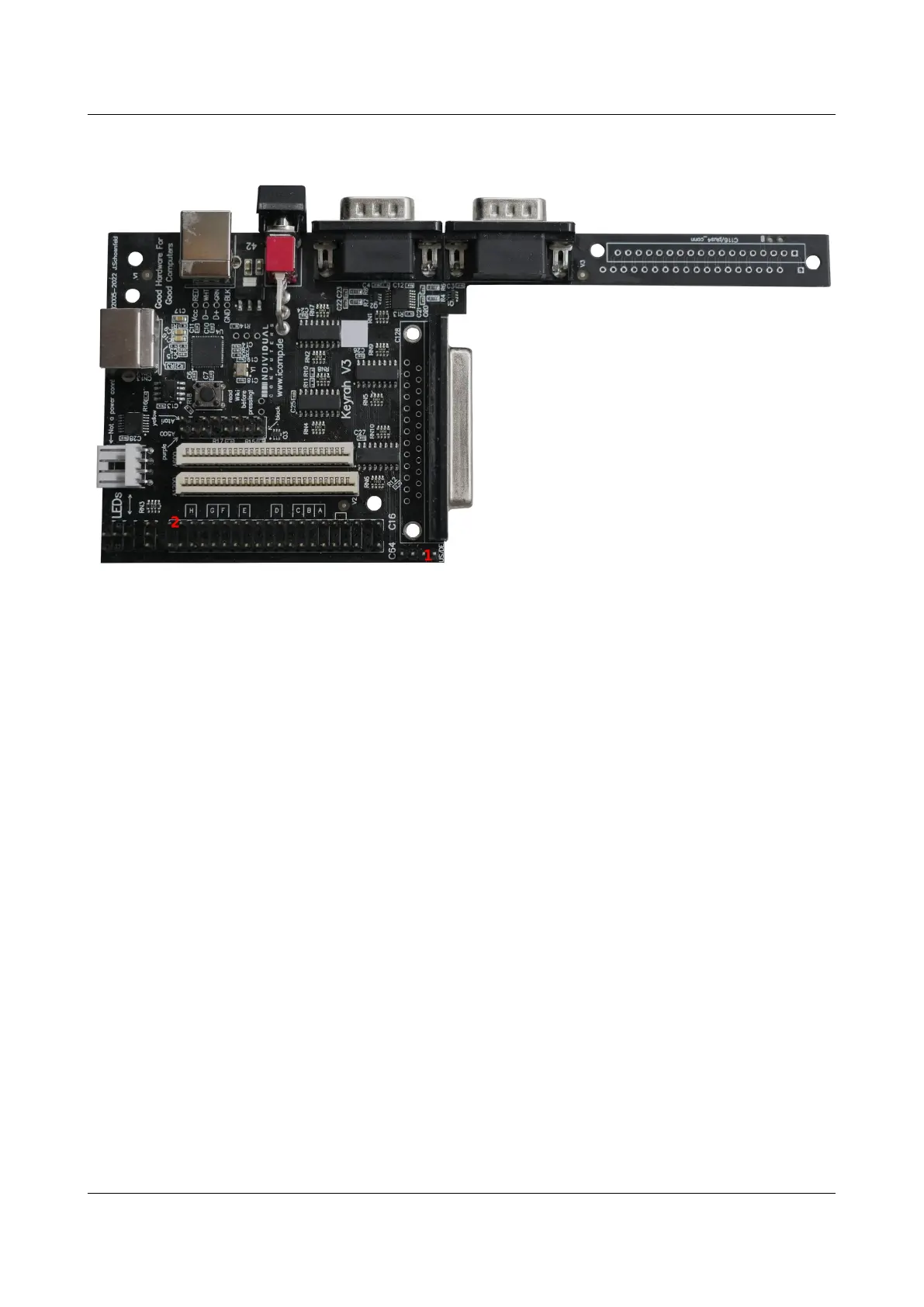

(1) The jumper marked EN/DE selects an alternative keymap (see 3.6 Keyboard Mapping). When
the Jumper is closed the german keymap is selected, when it is open the english keymap is selected.
3.5.2 Keyboard type
(2) Since not every keyboard can be automatically detected, the type can be forced by putting
jumpers on the C16 connector:
20 | o |
19 | o | \ Jumper Pos H
18 | o | /
17 | o | \ Jumper Pos G
16 | o | \ / Jumper Pos F
15 | o | /
14 | o | \ Jumper Pos E
13 | o | /
12 | o |
11 | o | \ Jumper Pos D
10 | o | /
9 | o | \ Jumper Pos C
8 | o | / \ Jumper Pos B
7 | o | \ / Jumper Pos A
6 | o | /
5 | o | \ Jumper “Manual keyboard select”
4 | o | /
3 | o |
2 | |
1 | o |
12
