INDUCS INSTINCT Hob 5 - Dimensions: INSTINCT Wok3.5, INSTINCT Wok 5, INSTINCT Wok 8

16 INSTINCT User Manual rev 01 04/18
Installation Section 2

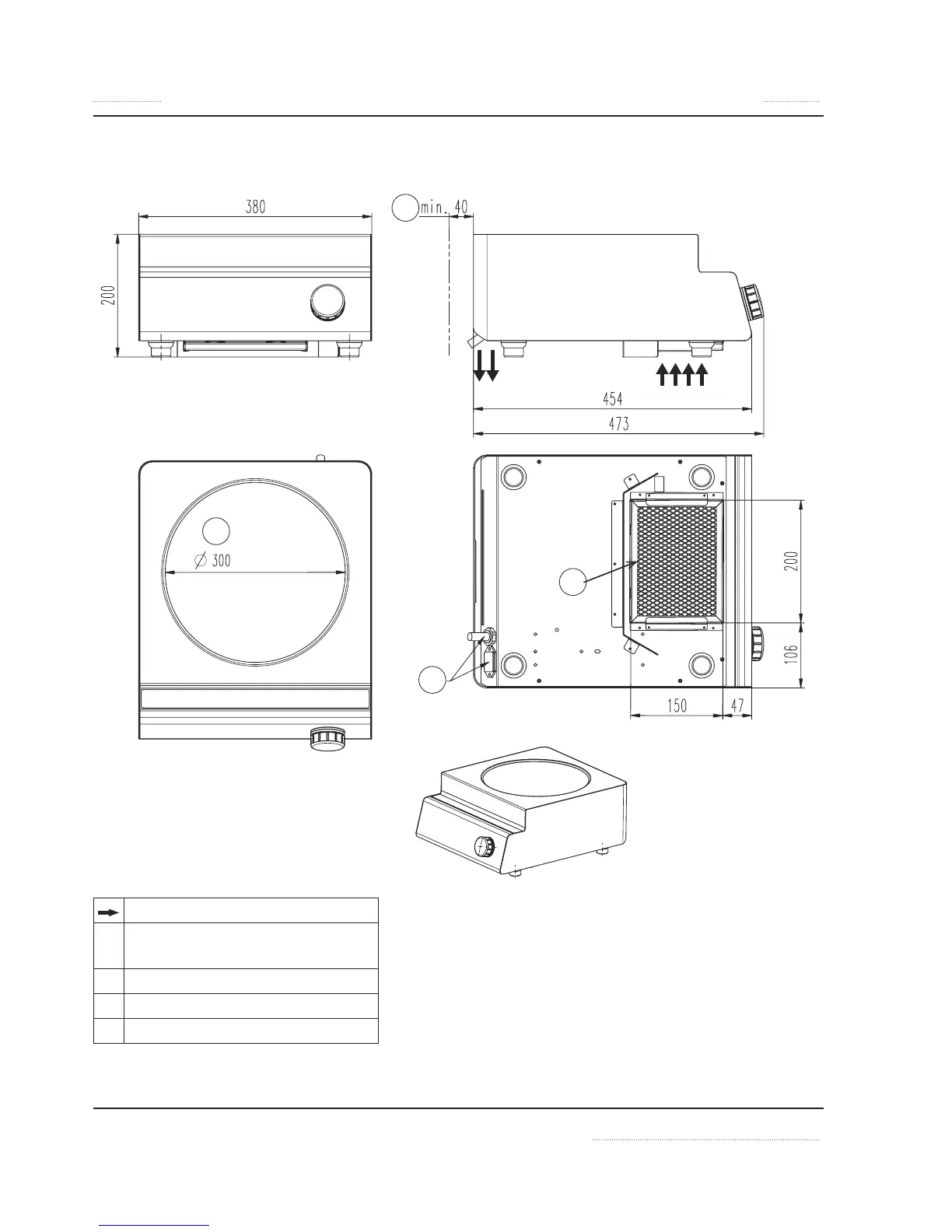

DIMENSIONS: INSTINCT WOK3.5, INSTINCT WOK 5, INSTINCT WOK 8
[14.96]
[5.91]
[1.85]
[7.87][4.17]
[7.87]
1
[1.57]
[18.62]
[17.87]
2
3
4
[11.81]
Indicates the direction of airflow
1 Distance to wall or other obstruc-
tion, minimum = 40mm [1.57”]
2 Ceran Glass Wok Bowl Diameter
3 Power Cable Connection
4 Air Filter
