CHILD
WITH INBUILT HARNESS
Determine whether your child requires the additional padding provided with this restraint, to
ensure a safe and snug t in the restraint. Refer to page 6 for suggested padding combinations.
SELECTION OF APPROPRIATE PADDING COMBINATIONS
Figure 1

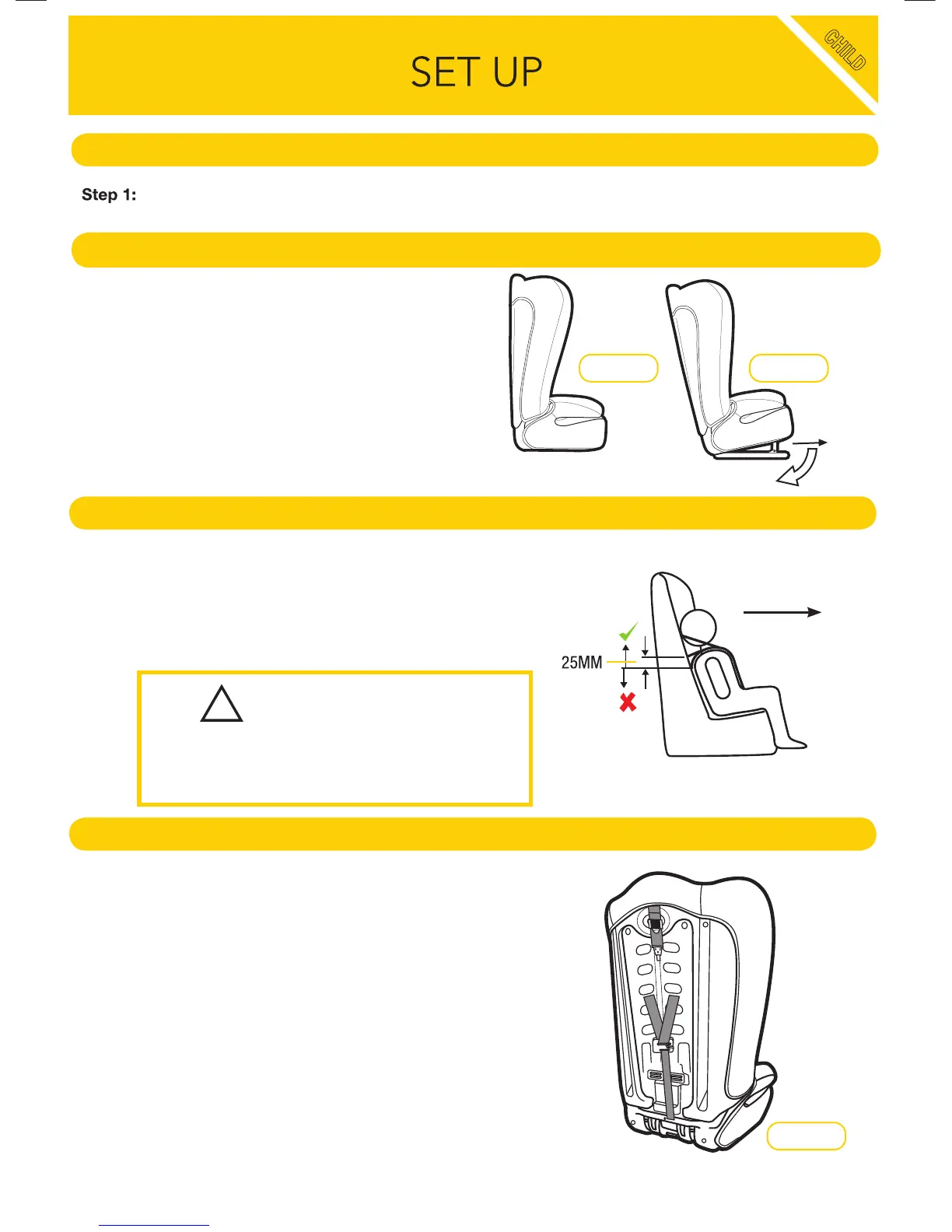

ADJUSTING RECLINE ANGLE
Determine which seat angle is prefered for the
comfort of your child.
TO RECLINE
Pull down the recline base and ensure the
support is forward (in position).
CORRECT SHOULDER HEIGHT
The correct height for the shoulder straps is very
important for the optimum performance of the
restraint. The shoulder straps must be in the slots
which are nearest to the child’s shoulders, but not
more than 25mm below the child’s shoulders (see
gure 13).
Front of vehicle
IMPORTANT
!
The shoulder straps must be in the slots which
are nearest to the child’s shoulders, but not more
than 25mm below the child’s shoulders.
RECLINEUPRIGHT
SHOULDER SLOT HEIGHT
From the rear of the restraint, remove each shoulder
harness through the gates in the “G” connecting
plate (see Figures 1, 2, 3 & 4).
Step 1:
With the child correctly sitting in the restraint, check
which set of slots (in the plastic shell of the restraint)
are the level with but not more than 25mm below the
child’s shoulders.
Step 2:
Pull the shoulder harness straps through the
shoulder slot holes in the seat body and cover. They
are now loose in the front of the seat (see Figure 5).
Step 3:
Push the ends of the shoulder harness straps
through the appropriate shoulder slot holes in the
cover and seat body for the child’s shoulder height.
(see above for correct shoulder height for forward
facing).
11
