BOOSTER
WITH LAP-SASH SEAT BELT
USING LAP-SASH SEAT BELT
The red “Booster Seat belt Path” labels are located
each side of the Booster seat and at the head of the
Booster seat (as shown on page 19).
USE
Pull the lap belt tight by rst pulling on the lap belt in
the direction of arrow 1 (refer Figure 1). Pull the sash
belt tight in the direction of arrow 2 while holding the
belts tight, place the Safe Grip (red belt clamp) (B) on
the sash section as close as possible to the buckle
tongue (A). (Refer to Figure 2 and instruction for
installing the Safe Grip red belt clamp below).
the backrest.
Position the lap section of the vehicle seat across the
child’s lap then insert the buckle tongue in the belt
buckle (A). Ensuring the lap portion is positioned
under the armrests and over the child’s thighs.
“INSTALLING IN VEHICLE” (refer page 20).
DO NOT USE WITH JUST A LAP BELT.
You must use a lap-sash seat belt.
SAFE GRIP BELT CLAMP
It is important that the lap belt must be firmly across
the thighs.The Safe Grip locks the lap belt to
ensure a rm t across the thighs, and avoids slack in
the lap belt. This t ensures that the lap belt does not
ride up into the soft abdominal region of the child,
which may cause internal injury.
To install the Safe Grip (red belt clamp), open it and clamp the “sash section” of the vehicle
seat belt by closing the barrel section of the red belt clamp in the direction of arrow 1 in
Figure 2 and then locking with the toggle section by pushing in the direction of arrow 2 in
Figure 2 when the Safe Grip (red belt clamp) is secured in place, the lap section is now
tightly holding your child in place, independent of the sash section. The Safe Grip (red belt
clamp) must be removed when the child restraint is not installed to allow other users to use
the seat belt as a lap/sash seat belt. Always keep the Safe Grip (red belt clamp) in pocket
provided when not in use.
WARNING
!
B
A
IMPORTANT
!
Ensure that you use the BOOSTER SEAT
BELT PATH indicators, marked in “red”.
TOGGLE
SECTION (2)
LAP SECTION
BARREL SECTION (1)
SAFE GRIP (B)
(red belt clamp)
ATTACH TO
SASH SECTION
ONLY
SASH SECTION
BUCKLE (A)
(AND TONGUE)

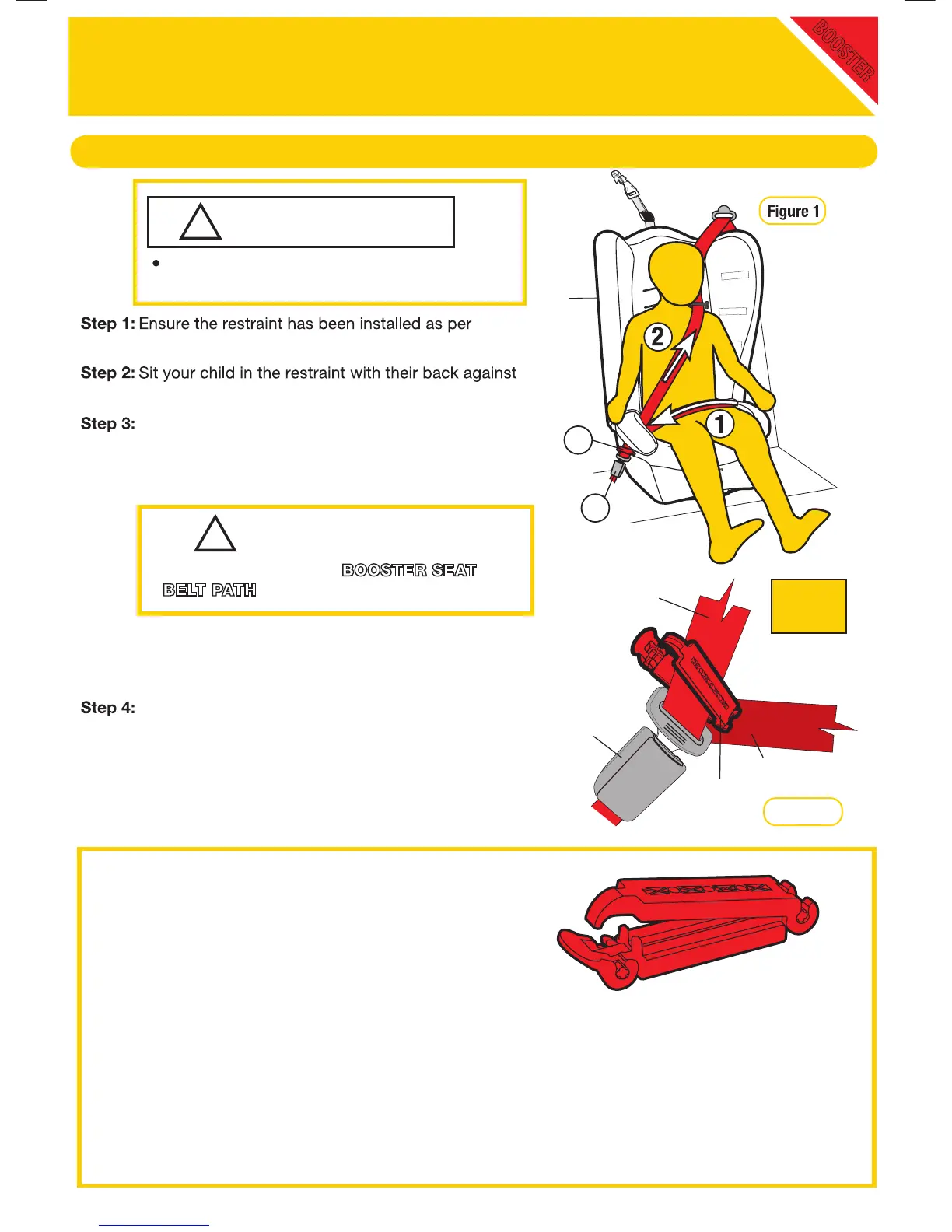

Figure 2
