CHILD
WITH INBUILT HARNESS

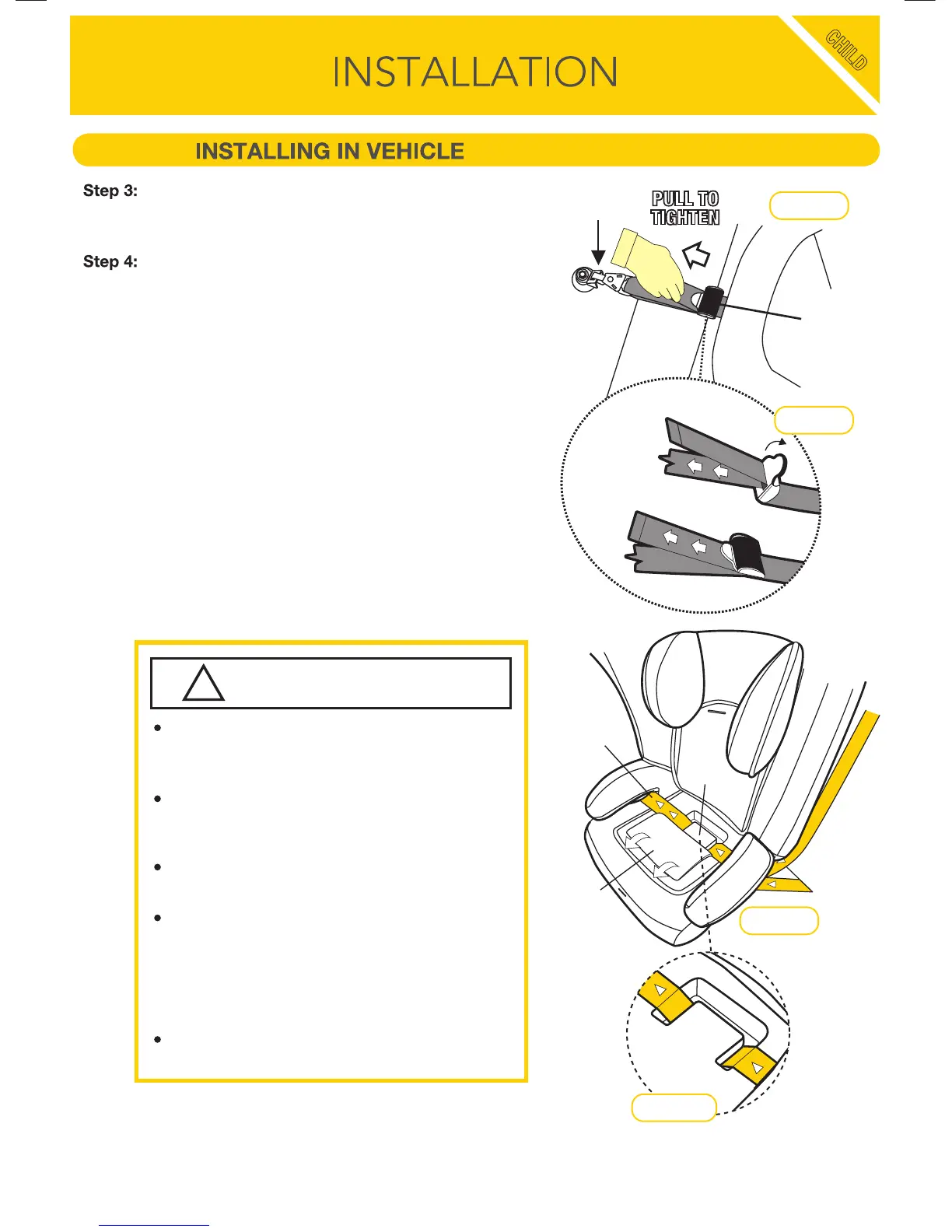

Fold the rear of seat base cover and foam forward to
expose the seating surface of the base. Fully extend
the seat belt and pass the lap and sash sections of
the vehicle belt under the rst armrest, across the
seat base ensuring you pass the seat belt beneath
the tongue in the plastic moulding (refer Figure 4A)
then under the second armrest, “click” the buckle
tongue into the buckle (Refer to Figure 4).
Important notes: The vehicle belt is now located
across the seat base. The belt path is shown by the
arrows in Figure 4 & 4A.
Step 5:
Hook the attachment clip to the anchor tting. Ensure
there are no twists in the upper anchorage strap
(Refer to Figure 2).
Pull to tighten to remove all the slack, from the upper
anchorage strap. Do not overtighten as this could
cause the restraint to lift off the vehicle seat (Refer to
Figure 3)
Lap and
sash belt
pass across
the seating
surface of
the base.
Seat cover
& foam
folded back
Figure 4
Figure 2
Always use a lap or lap-sash seat belt and
upper anchorage strap to attach the child
restraint to the vehicle.
Do not use the restraint without the upper
anchorage strap correctly attached and
adjusted.
Do not use on any vehicle seat which faces
sideways or rearwards.
IF AN AIRBAG IS FITTED IN THE SEATING
POSITION WHERE THE CHILD RESTRAINT
IS TO BE FITTED, FOLLOW THE VEHICLE
MANUFACTURER’S WARNINGS AND
INSTRUCTIONS.
Fit the restraint rmly to the car seat.
(Using Lap-sash Seat Belt)
Tongue
ADJUSTER
ATTACH
PULL TO
TIGHTEN
Tilt
Pull to
lengthen
Pull to
tighten
TONGUE
IN PLASTIC
MOULDING
Figure 4A
Figure 3
WARNING
!
13
