Installing Using Vehicle Seatbelt
Installation
Child Car Seat
SAFE GRIP BELT CLAMP
The Safe Grip (red belt clamp) locks the lap
belt
slack in the lap belt.
To install the Safe Grip (red belt clamp), open it
and clamp the “sash section” ONLY of the
vehicle seat belt by closing the barrel section of
the red belt clamp in the direction of arrow 1 in
Figure 5 and then locking with the toggle
section by pushing in the direction of arrow 2 in
Figure 5 when the Safe Grip (red belt clamp) is
secured in place, the lap section is now tightly
holding your child restraint in place, independ-
ent of the sash section. The Safe Grip (red belt
clamp) must be removed when the child
restraint is not installed to allow other users to
use the seat belt as a lap/sash seat belt. Always
keep the Safe Grip (red belt clamp) in pocket
provided when not in use.

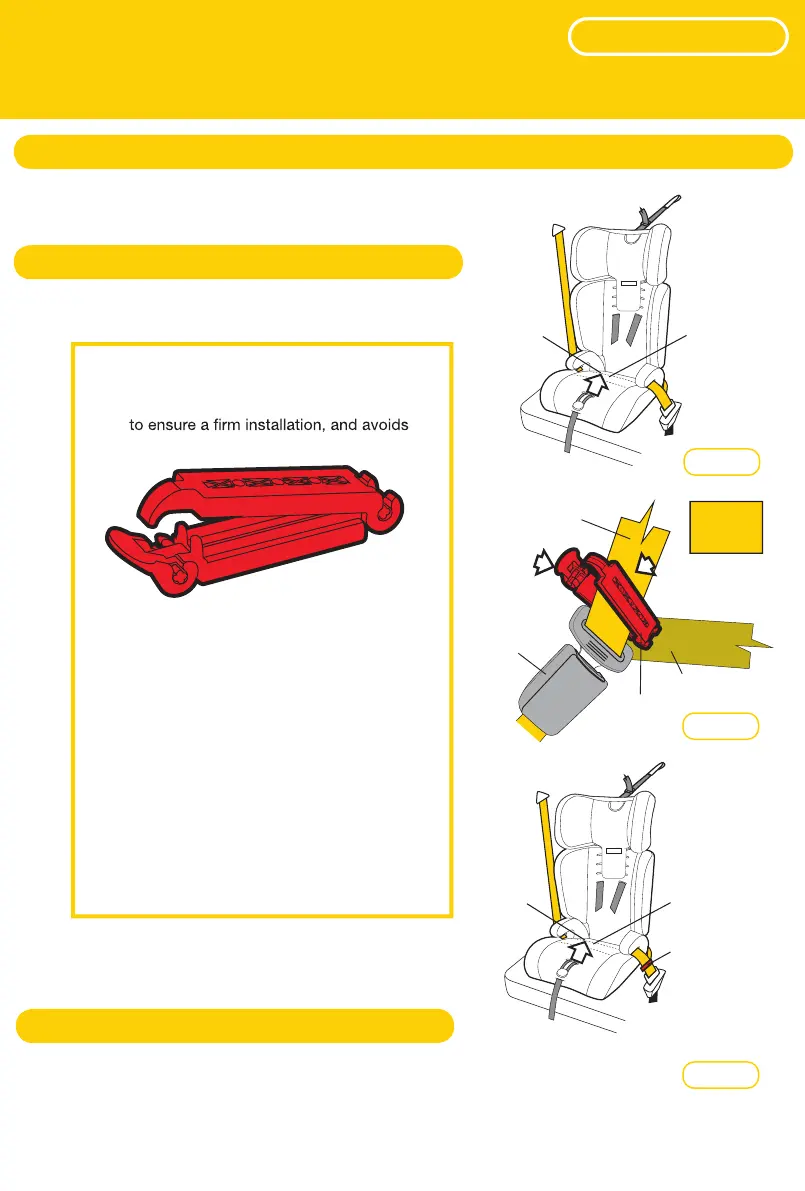

TOGGLE
SECTION (2)
LAP SECTION
BARREL SECTION (1)
SAFE GRIP (B)
(red belt clamp)
ATTACH TO
SASH SECTION
ONLY
SASH SECTION
BUCKLE (A)
(AND TONGUE)
Figure 9
NOTE: Do not place the
*Can be purchased separately visit
http://store.infasecure.com.au/product
Safe Grip (red belt clamp)
around both the lap and sash sections of the belt. This
could cause the Safe Grip (red belt clamp) to break.
Safe Grip (if supplied)
Figure 8
Follow the instructions covered by “Installing in
Vehicle (Using lap sash seat belt)” Steps 1 to 4 (refer
pages 13 & 15).
Place layer of foam and seat cover back into position
over the top of the vehicle belt (refer Figure 8).
Step 1:
Step 4:
(Using Lap Seat Belt)
NOTE: Shown with
in built harness
cut away
Layer of foam
& seat cover
placed back
into position
over the top
of the belts
Lap and sash
belts pass
across the base
Figure 10
NOTE: Shown with
in built harness
cut away
Layer of foam
& seat cover
placed back
into position
over the top
of the belts
Lap and sash
belts pass
across the base
Safe Grip
(Red belt clamp)
in position
To Next Page
