Mount the gauge so that no vibrations occur. Vibrations at the
gauge cause a deviation of the measured values.
The gauge may be mounted in any orientation. To keep conden-
sates and particles from getting into the measuring chamber
preferably choose a horizontal to upright position.
For potentially contaminating applications and to protect the
measurement system against contamination, installation of the
optional seal with centering ring and filter is recommended
(Options → 57).
Remove the protective lid and connect the product to the
vacuum system.
or

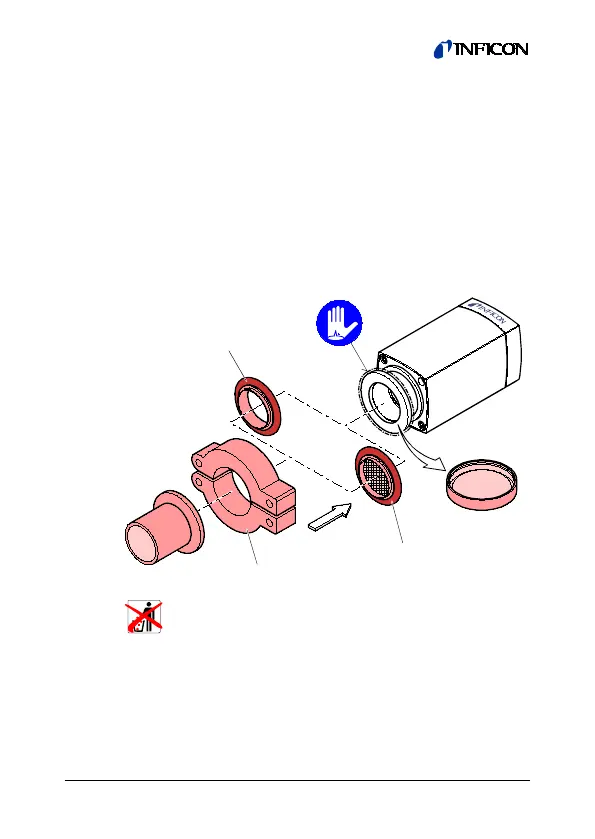

Protective lid
Seal with centering
ring and filter
Clamp
Seal with centering ring
Keep the protective lid.
