3.2.2 D-sub, 9-pin Connector

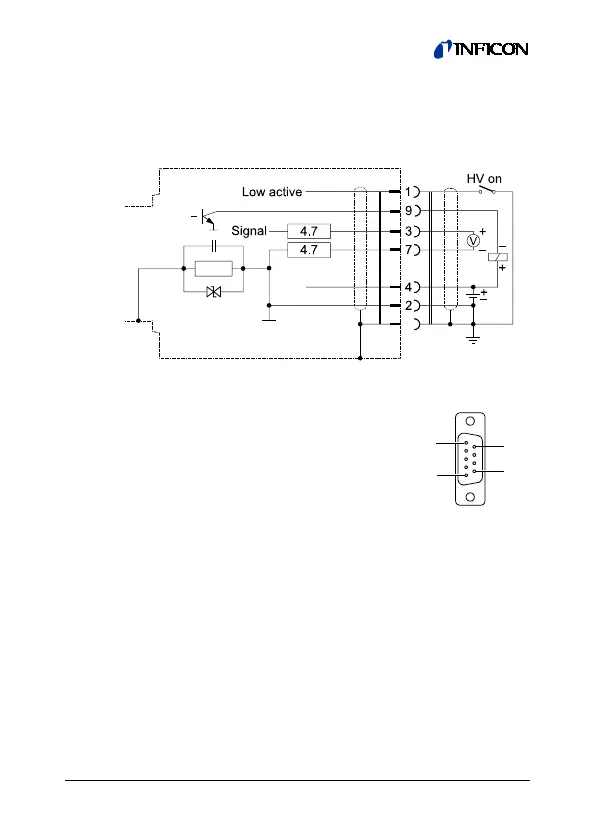

If no sensor cable is available, make one according to the
following diagram. Connect the sensor cable.
Electrical connection
Pin 1
*)
High voltage on/off (low active)
Pin 2 Supply common GND
Pin 3 Signal output (measuring signal)
Pin 4 Supply (14.5 … 30 V (dc))
Pin 5 not assigned
Pin 6 do not connect
Pin 7 Signal common
Pin 8 not assigned
Pin 9 Status signal
*)
MAG only. Pin 1 is not assigned in the
MPG gauge.
1
5
6
9
D-sub
9-pin
female
soldering side
