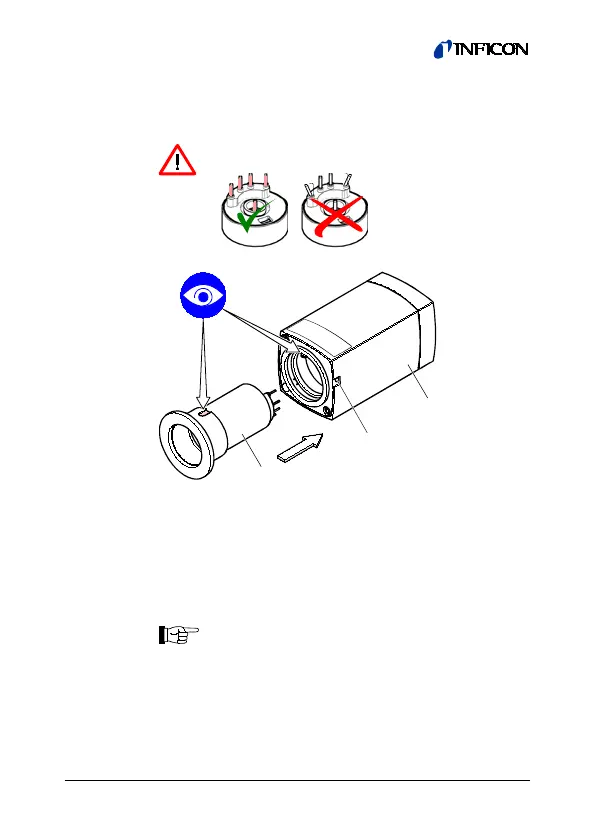

Carefully slide the measuring chamber cpl. (3) into the
electronics unit (5) until the mechanical stop is reached.
Pins aligned straight.
Fasten the measuring chamber (3) by means of the
hexagon socket set screw (4).
MPG5xx gauge only: Perform an ATM and HV adjustment
of the Pirani measuring circuit via the <ADJ> button
(→ 40).
A recalibration of the MAG5xx gauge is not
necessary.
