tina56e1-f (2015-09) 33

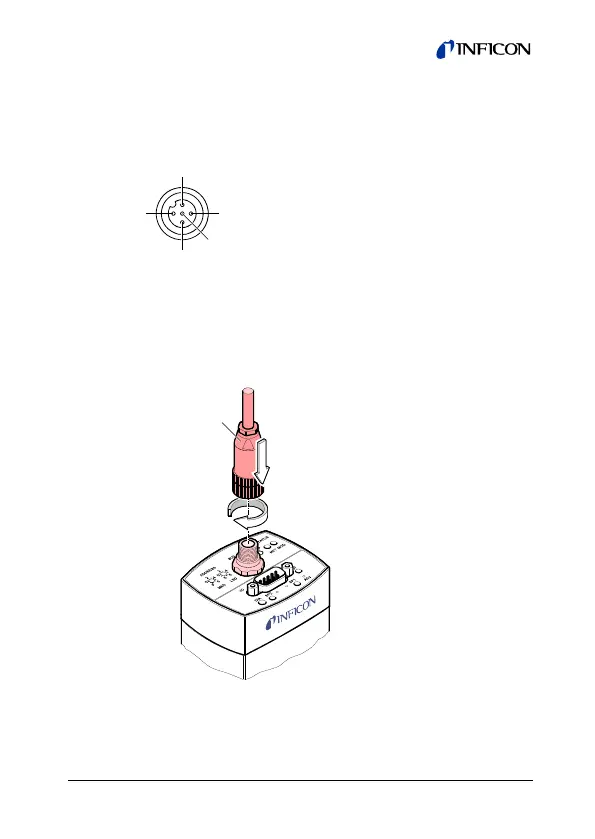

3.2.5 DeviceNet Connector
If no DeviceNet cable is available, make one according to the
following diagram. Connect the DeviceNet cable.
3
1
42
5
Micro-Style, 5-pin, (DeviceNet), female,
soldering side
Pin 1 Drain
Pin 2 Supply +15 … +30 V (dc)
Pin 3 Supply common GND
Pin 4 CAN_H
Pin 5 CAN_L
DeviceNet cable
