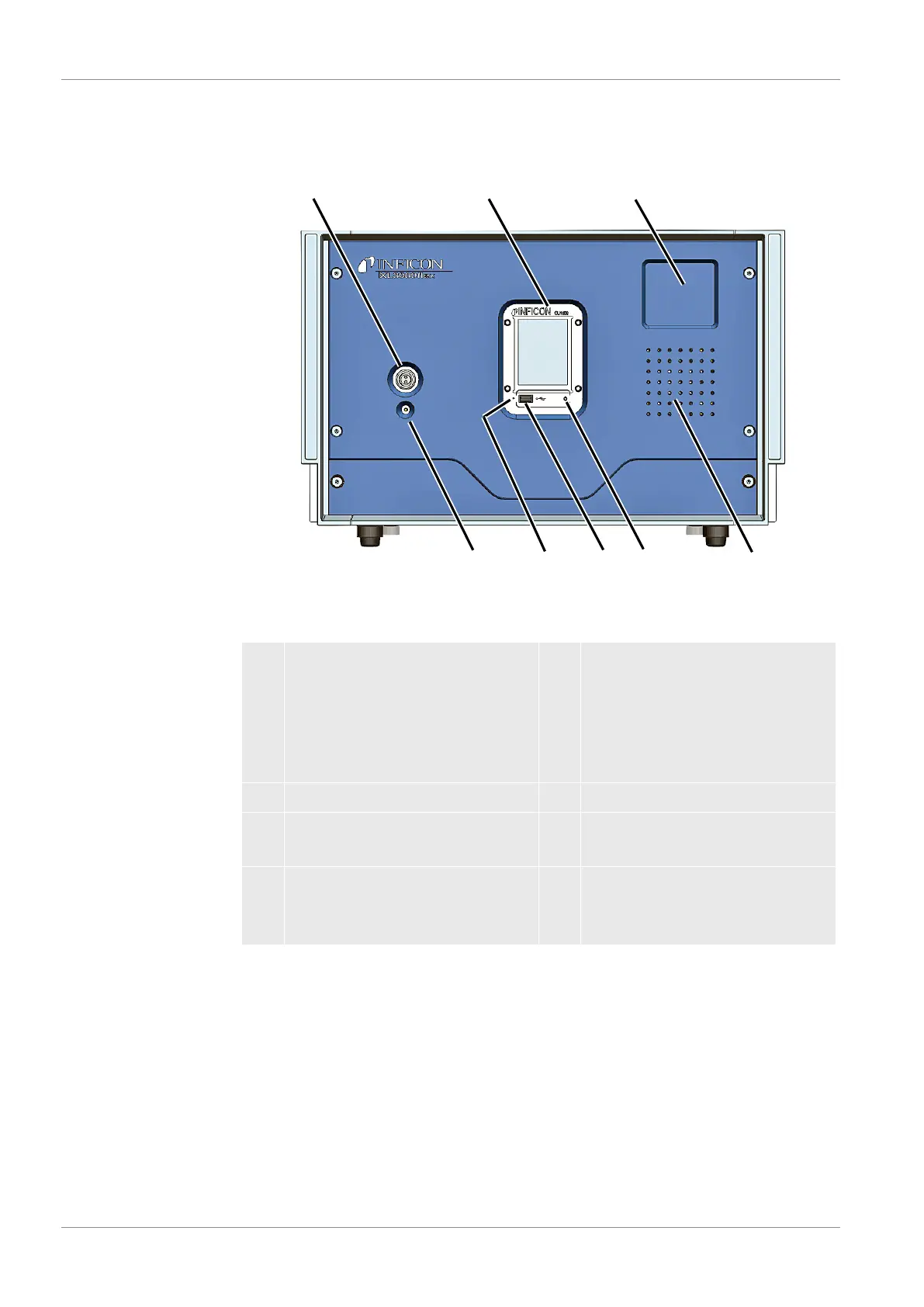

Front view
1
2
3
4
5
6
8 7
1 Connection for sniffer line
SL3000XL
5 Status LED of the operating unit.
Shines: Control unit operates
normally
Flashes: Display in power saving
mode
2 Touchscreen 6 Connection for USB stick
3 Area for fixing a holder for the
sniffer line
7 Reset button, can be triggered by
key PIN
4 Speaker 8 Status LED. A permanently lit
status LED shows that the sniffer
line is supplied with voltage.
