User Manual AURIX™ TCxx4 lite Kit
AURIX™ TCxx4 lite Kit
1 Introduction
1.1 Block diagram
• The block diagram in Figure 1 shows the main components of the AURIX™ TCxx4 lite Kit and their
interconnections.

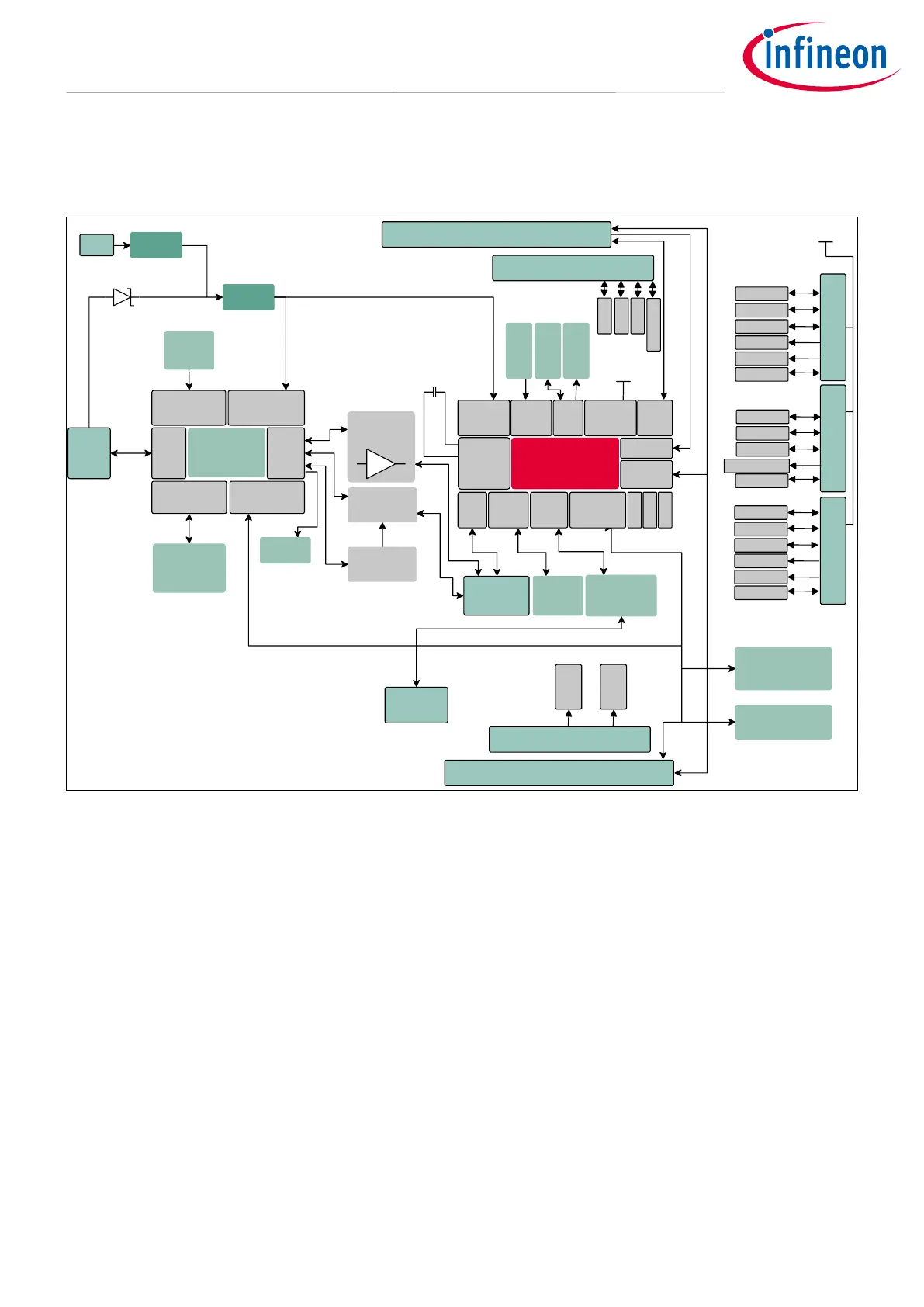

Figure 1 Block Diagram of the AURIX™ TCxx4 lite Kit
AURIXä TC334, TC324,
TC234, TC224 or TC214
Micro
USB2.0
UTMI
PHY
EEPROM
Interface
FTDI
FT2232HL
EEPROM 1kB
93LC46B-I/SN
Octal Bus
Buf fer Gate
2 x Single-Bit
Bus Tranceiver
Single Bus
Buf fer Gate
MPSSE
Channel
A
OCDS
DAP
Connector
Ext. Oscillator
Input
2x LEDs
for OCDS
Power
LDO
Power
Interface
Ext. Power
Input
Pin Header X1
2x20, 0.1"
Pin Header X2
2x20, 0.1"
Arduinoä Pin Header (DIGITAL)
Arduinoä Pin Header (ANALOG IN)
ADC
GPIO
LED1/LED2
Button 1
Reset
Button
3.3V
Dig. Core
Supply
VDD
Ext. Osci
Input
20 MHz
External
Crystal
Port 11, 13,
14, 15, 20,
21, 22, 23
P00.5/P00.6
PORSTN
Port
33,34
Port 0
Infineon
CAN Tranceiver
TLE9251VSJ
12 MHz
External
Crystal
CAN0
Node0
CAN Header
1x2, 0.1"
QSPI1
I2C0
ASCLIN
Mikrobus
ä Connector
Shield2GO Slot1 S2G2
I2C0
ASCLIN1
QSPI2
I2C0
ASCLIN3
QSPI0
UART
Shield2GO Slot1 S2G1
I2C0
ASCLIN2
QSPI0
UART
UART
ADC/AN34(18)
ADC/AN8
ADC/AN9
ADC/AN11
ADC/AN10
GPIO
GPIO
GPIO
3.3V
AN36-39
(20-23)
ASCLIN0
I2C0
GPIO
QSPI1
AN32-33
(16-17)
Power
LDO
DC IN
C26/C27 1µF
Optional Semper
(secure) Flash
Optional F-RAM
MPSSE
Channel B
3.3V
5V
P00.7
DP/DM
ADBUS2
ACBUS4
ADBUS1
DAP1
P21.7
Ext.
Gate
Ctrl
Please note:
ANaa (bb) -> ANaa for TC3xx and ANbb for TC2xx
No I2C module, I2C must be emulated e.g. via pin toogling
