In addition, Infineon oers magnet heads which can be mounted on the EvalBoard. Currently two magnetic
heads are available, a joystick and a rotation knob.
Table 1 Magnet heads order codes
Magnet head for the 3D Magnetic Sensor 2 Go kit SP Number
Joystick SP001491834
Rotation knob SP001504602

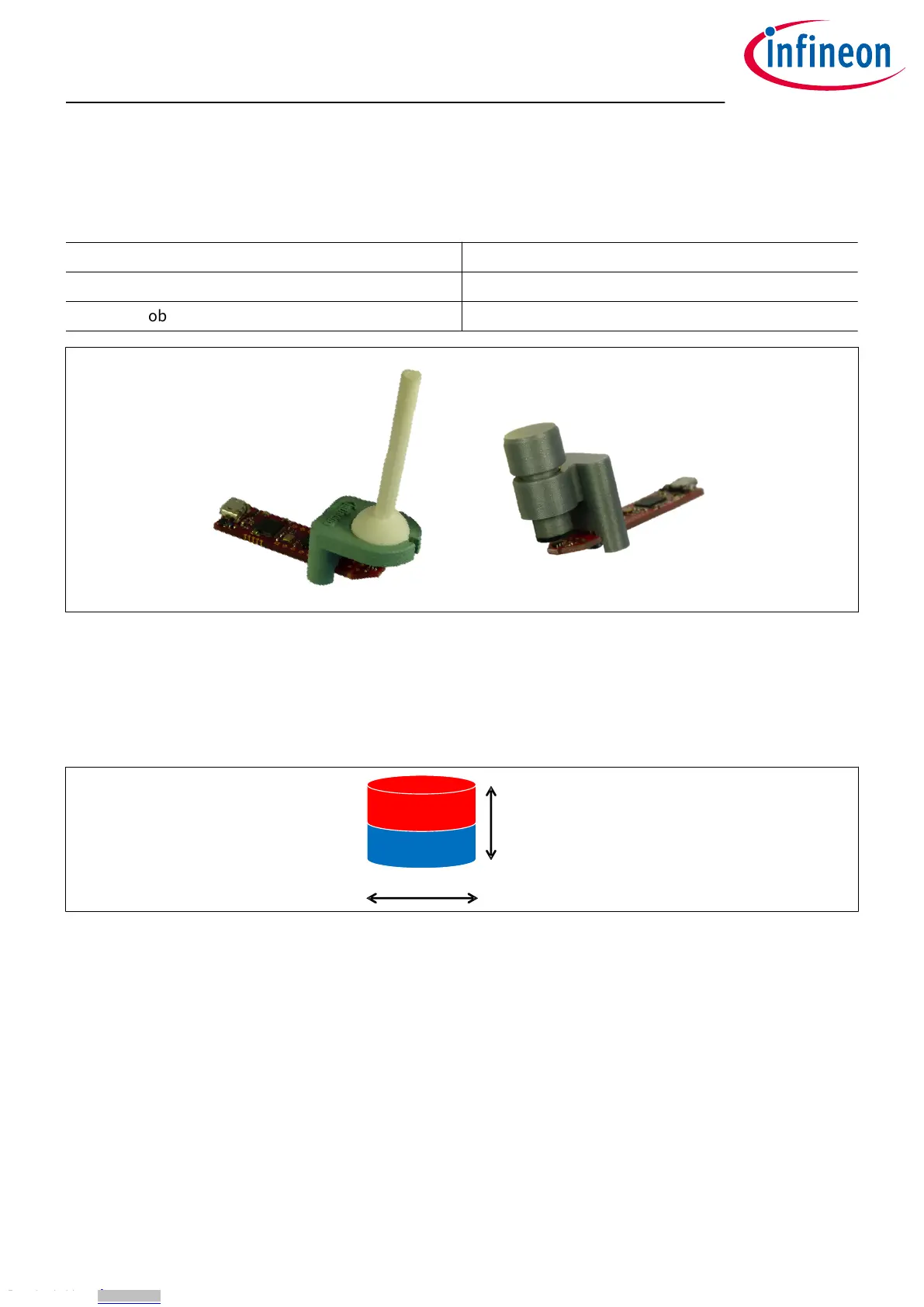

Figure 2 Magnet heads for the 3D Magnetic Sensor 2 Go kit
The magnet used in the joystick magnet head is an axial magnetized magnet as shown in Figure 3. The magnet
material is ferrite, of class Y35, which is equivalent to a remanence of between 400 mT and 410 mT. The magnet
disk has a size of 5 mm diameter and 5 mm thickness. For more information about the magnet, please follow
this link: https://www.supermagnete.de/eng/disc-magnets-neodymium/disc-magnet-diameter-5mm-
height-5mm-neodymium-n45-nickel-plated_S-05-05-N
Figure 3 Magnet used in the joystick magnet head
The magnet used in the rotate knob magnet head is a diametrically magnetized magnet as shown in Figure 4.
The magnet material is Neodymium Iron Boron (NdFeB) of class N45. The magnet is protected against corrosion
with Nickel coating (Ni-Cu-Ni). The magnet size is 4 mm diameter and 10 mm thickness. For more information
about the magnet, please follow this link: https://www.supermagnete.de/eng/rod-magnets-neodymium/rod-
magnet-diameter-4mm-height-10mm-neodymium-n45-nickel-plated_S-04-10-AN
