Infineon TLE493D-A2B6 User Manual

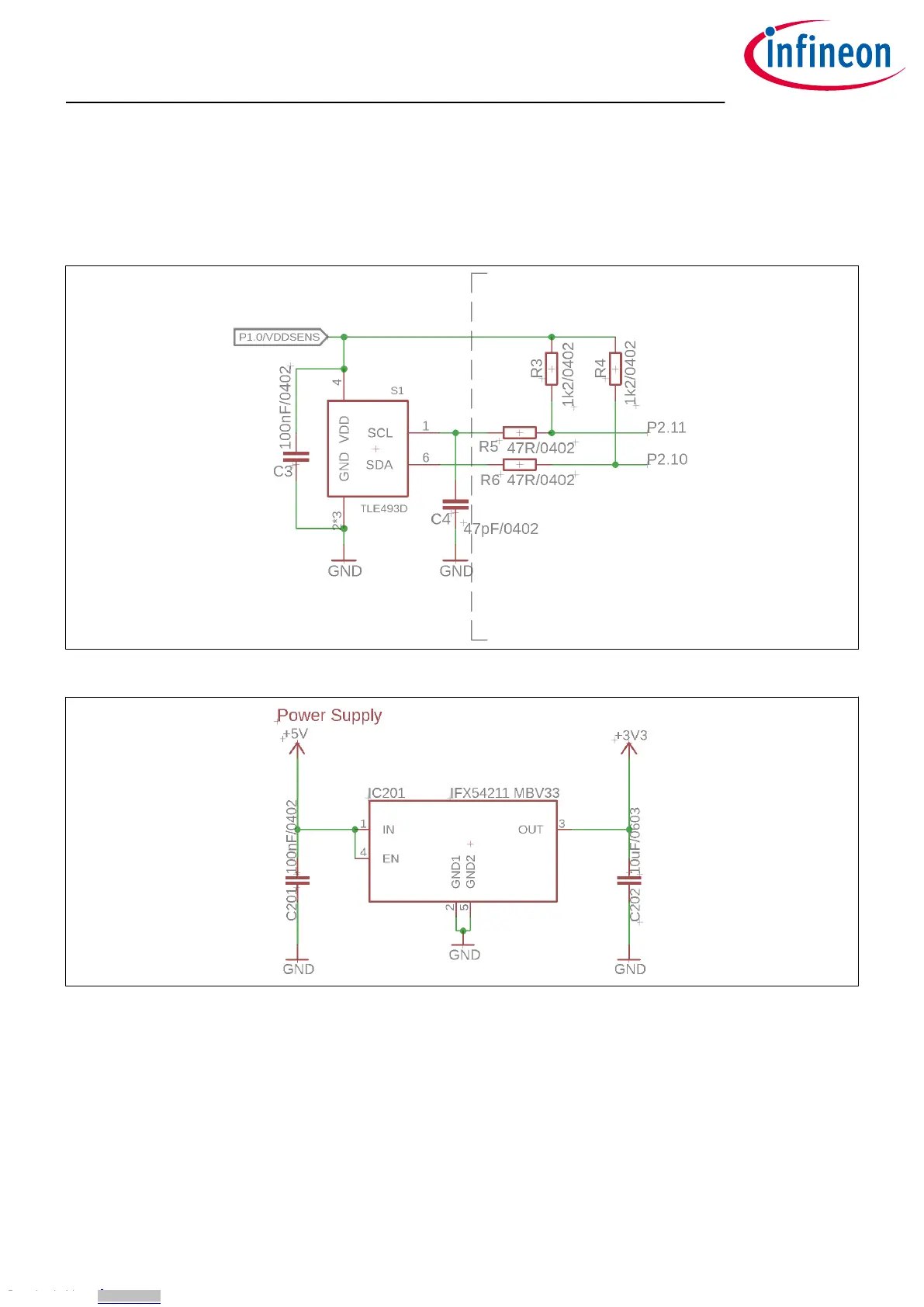

2.3 EvalBoard schematics
The schematics of the dierent blocks from the EvalBoard of the3D Magnetic Sensor 2 Go kit are provided in
this chapter. They can be used to design customized PCBs. The user (integrator) is responsible for the correct
functioning on system level as well as for the validation and testing.
Figure 7 EvalBoard schematic: 3D magnetic sensor
Figure 8 EvalBoard schematic: the voltage regulator (for the power supply)
3D Magnetic Sensor 2 Go - TLE493D-A2B6
Low Power 3D Hall Sensor with I²C Interface
EvalBoard description
User Manual 8 1.0
2018-05-16
