It is not recommended to apply an additional power supply to the V
DD
pin of X1 (3.3 V) when the board is
powered via USB, because the 3.3 V supply could drive against the on-board power supply. The V
DD
pin can be
used to power an external circuit. But care must be taken not to draw more current than 150 mA, which is the
maximum current the on-board voltage regulator can deliver. Aer power-up the Debug LED starts blinking. In
case there is connection to a PC with correctly installed drivers, the Debug LED will turn from blinking to
constant illumination.
2.2 Pin header connector
The pin headers X1 and X2 can be used to extend the evaluation board or to perform measurements on the
XMC1100. The order of pins available at X1 and X2 corresponds to the pinning schema of the XMC1100
microcontroller in the TSSOP-16 pin package. The pinning table is also printed onto the bottom side of the PCB
(depending on the version). The pin header X3 can be used to access directly the 3D magnetic sensor pins.
X1
X2
X3
P0.5
P0.0
3.3 V
GND
P2.11
P2.10
P2.9
P2.7
P0.6
P0.7
P0.8
P0.9
P0.14
P0.15
P2.0
P2.6
V
DD
(P1.0)
GND
SDA (P2.10)
SCL (P2.11)

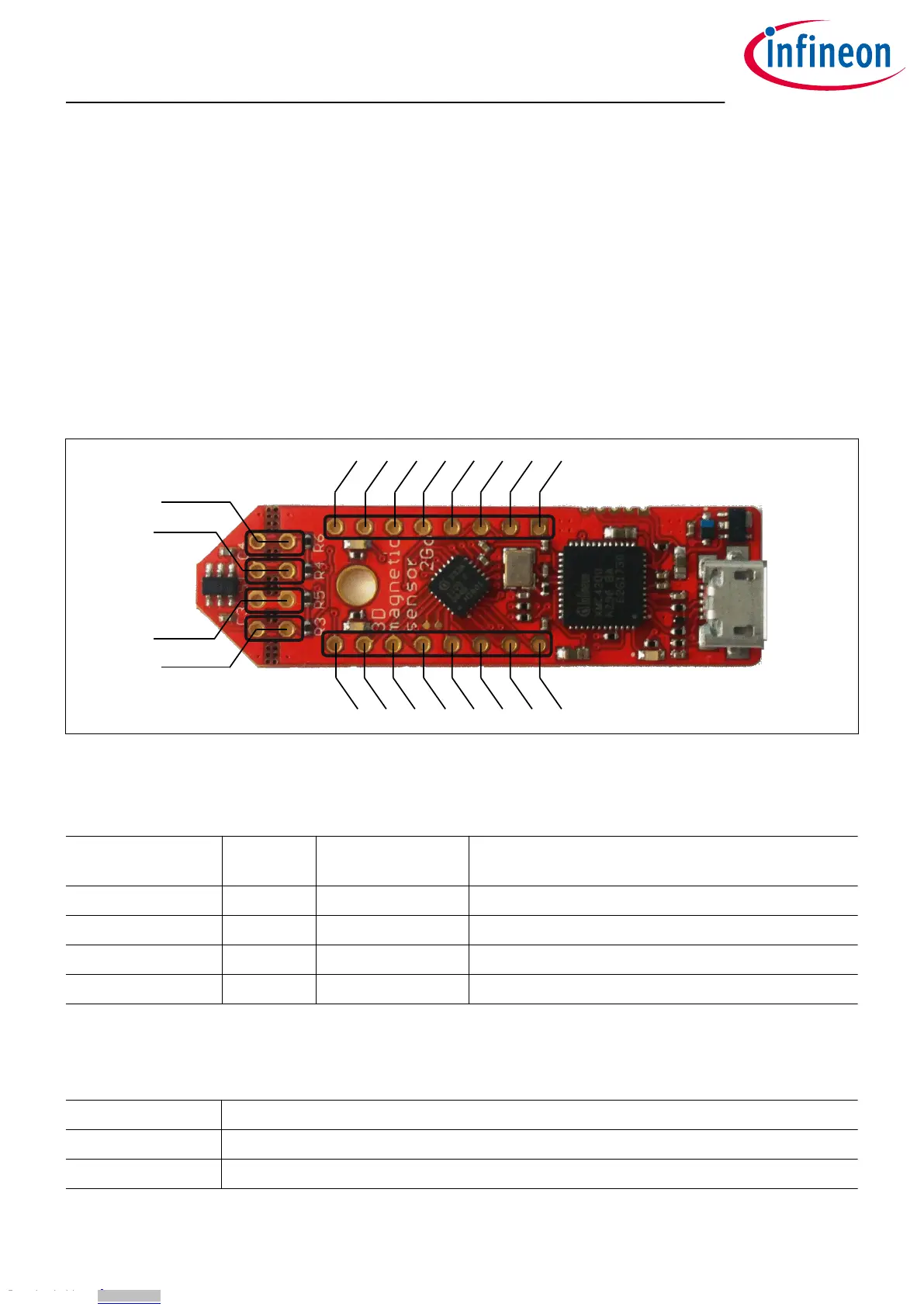

Figure 6 EvalBoard pin header connectors
The 3D Hall sensor pins can be accessed via the pin headers as shown in Table 2.
Table 2 Pin header description for the 3D magnetic sensor (X3)
TLE493D-A2B6 pin
number
Pin name
on board
XMC1100 port pin Sensor pin description
1 SCL P2.11 Interface clock and \INT pin, open drain
3 GND GND Ground pin
4 +3V3 P1.0 Supply pin
6 SDA P2.10 Interface data pin, open drain
The XMC1100 port pins P0.12 and P1.1 are connected the two user LEDs and are not available on the pin
headers.
Table 3 Pins used for the user LEDs
LED XMC1100 port pin
LED1 P0.12
LED2 P1.1
3D Magnetic Sensor 2 Go - TLE493D-A2B6
Low Power 3D Hall Sensor with I²C Interface
EvalBoard description
User Manual 7 1.0
2018-05-16
