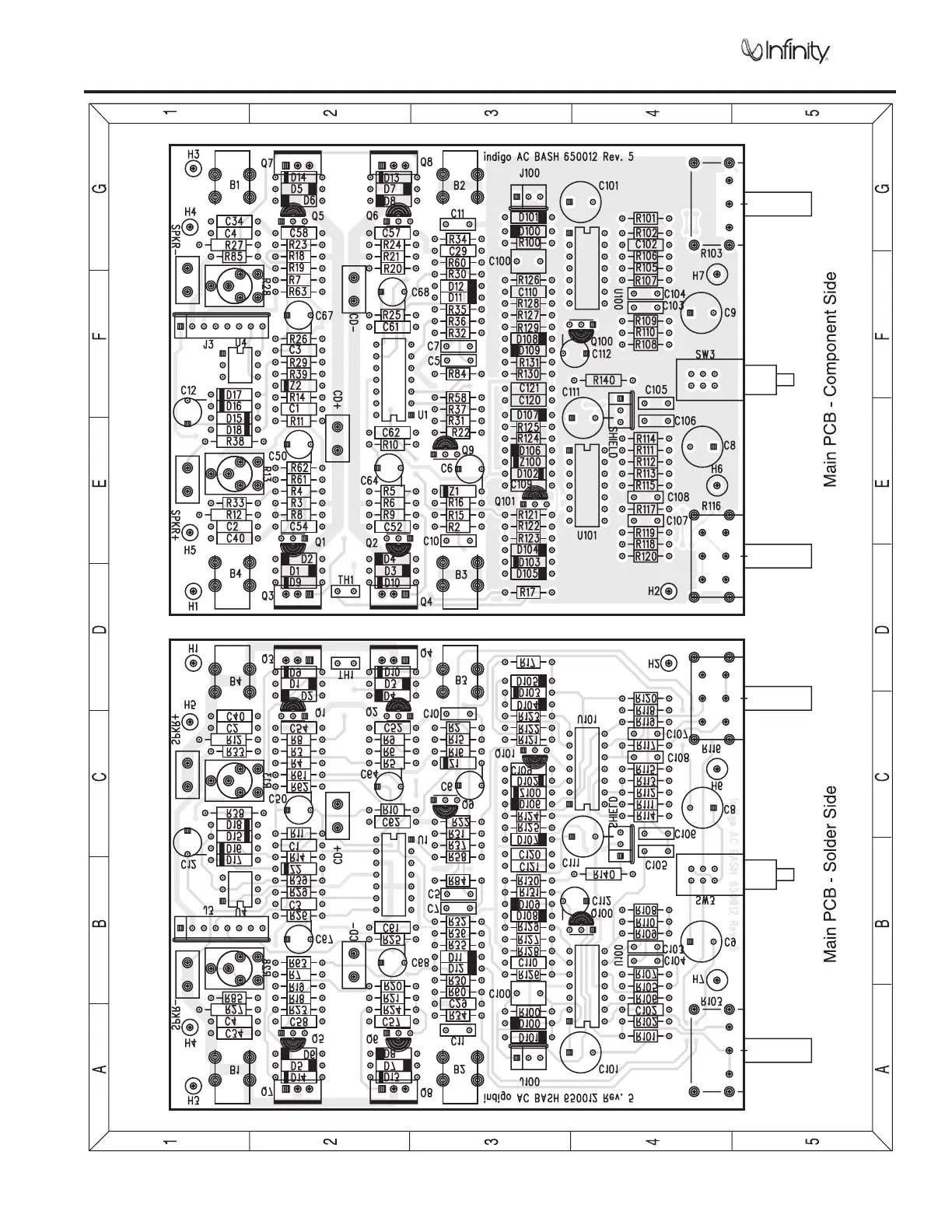

Infinity HPS250 - Printed Circuit Board - Main Board; Main PCB Component Side Layout; Main PCB Solder Side Layout

23 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

14

Powered Subwoofer HPS-250

PRINTED CIRCUIT BOARD - MAIN BOARD
