3.4 Site Layout Solution
1）、Reference layout
Refer to Figure 8 for the layout plan in a wide space area. The external reference blackbody
is placed directly in front of the infrared camera and made it observable in the imaging field of
view . Pedestrians need to be guided and make sure all of them can be observed with the thermal
imaging camera.

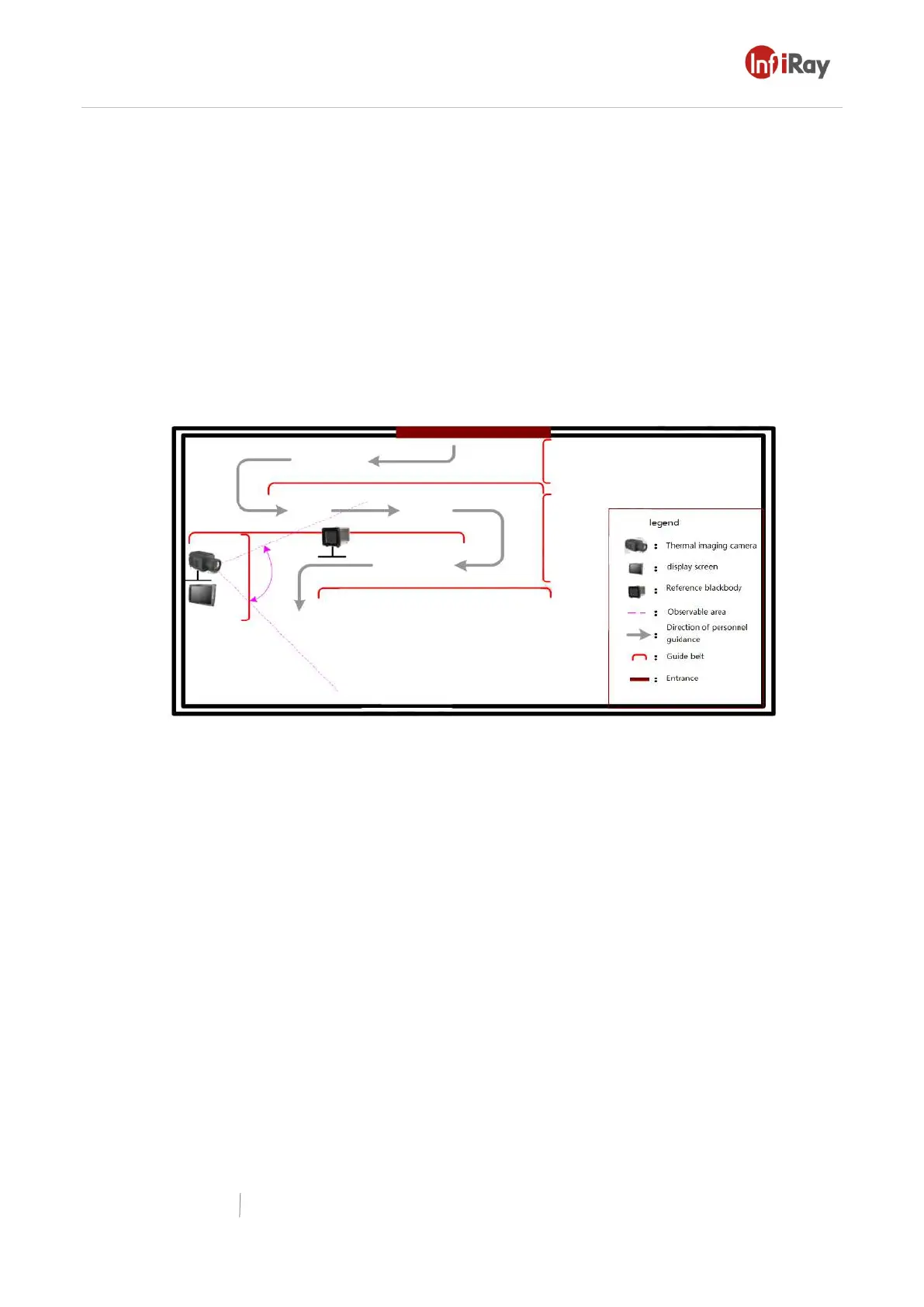

Figure 8 Arrangement of infrared human body thermal imaging camera
Installation direction and height of camera
The installation distance and height of the camera should be arranged according to the actual
situation, the recommended distance is 2m, and the installation height should ensure that all of the
observed pedestrians can appear in the field of view.
Reference black body layout
As shown in Figure 9, adjust the direction and position of the infrared human body thermal
imaging camera and the reference black body so that the reference black body appears in the 2/3
central area of the camera market and shall not be shielded by pedestrians.
