3. Operate the FINDERV2 via the App:
a. Take real-time photos and videos, with or without audio.
b. View, share, download, and delete photos and videos taken
via the App, which are saved to the mobile device.
c. Change the Wi-Fi password and SSID.
d. Synchronize the date and time from the mobile device.
e. Update the firmware of the FINDERV2.
NOTE: When a factory reset is performed, the Wi-Fi SSID and
password are reset to the defaults, FINDER_XXXXXXXXXXXXX
and 12345678. See Main Menu > Factory Reset on page32.

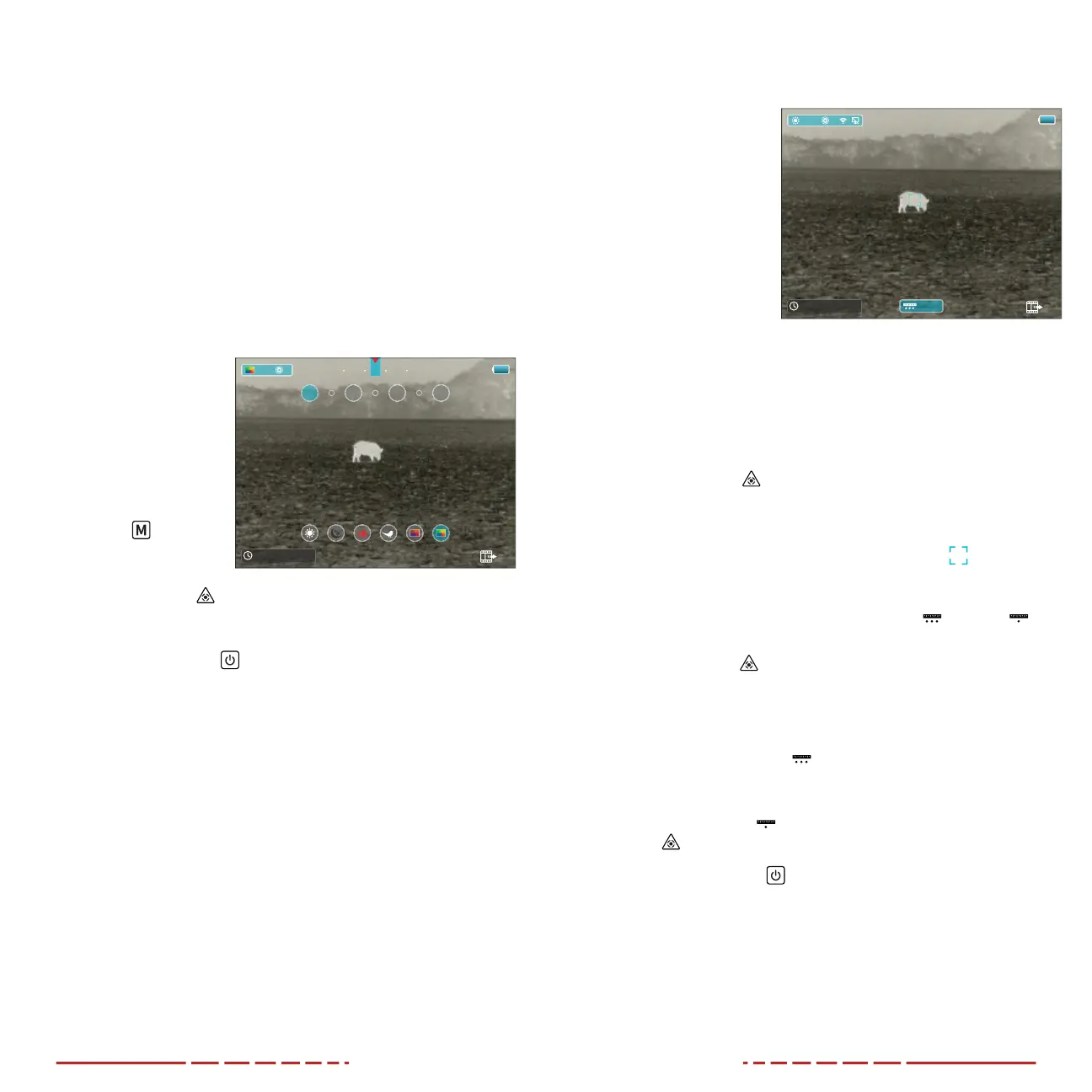

19. DIGITAL ZOOM
The FINDERV2 will
quickly increase the base
magnification by enlarging
the image from 1 to 4 times
digitally.
To adjust the digital zoom:
1. From the home
screen, short press
the Menu
Button
to enter the quick
menu.
2. Short press the Up
Button to adjust the digital zoom, from 1×–4×, in increments of
0.5×. The selected zoom level is displayed in the status bar.
3. Short press the Power
Button to exit the laser rangefinder.
20. ULTRA- CLEAR MODE
Ultra-clear mode improves the image quality in inclement weather
conditions, such as rain, fog, high humidity, or high temperatures as
these conditions all result in lower thermal contrast. Ultra-clear mode
enhances the NETD value of the thermal sensor and improves the
sensor’s response rate to these challenging environment conditions.
Ultra-clear mode provides:
Improved image quality and clarity; images are crisper and sharper.
Increased image detail.
Improved recognition of observed targets.
See Main Menu > Ultra-clear on page24.
× 2
× 4
× 3
× 1
×1.0
M
O u t
14 :4 6/2019 /05/08
N W N EN
21. INTEGRATED LASER
RANGEFINDER
The FINDERV2 is
equipped with an
integrated, precision
laser rangefinder which
allows the user to
measure the distance
to objects up to 800yd
away, with ±1yd accuracy.
The laser rangefinder
has two rangefinding
modes: continuous and
single-measurement
capture. Continuous
rangefinding allows the user to adjust quickly to changing distances
for better shot placement.
CAUTION: Do not stare directly into the laser.
To use the laser rangefinder:
1. Short press the Up
Button to turn on the laser rangefinder
and enter the rangefinder interface.
2. The rangefinder interface has the following features:
1 Cursor: The square blue rangefinder cursor
appears in
the center of the screen.
2 Tooltip: The tooltip at the bottom of the screen shows the
selected rangefinding mode, continuous
or single
ranging, and the distance to the target.
3. Long press the Up
Button to toggle between the two
rangefinding modes.
4. Locate the target. The distance to the target will be updated in
the rangefinder according to the rangefinding mode selected:
a. In continuous ranging
mode, the distance to the target
indicated by the cursor will be refreshed automatically by the
rangefinder every second.
b. In single ranging
mode, the user must short press the
Up
Button to take a rangefinding measurement.
5. Short press the Power
Button to exit the laser rangefinder.
ACCURACY NOTES:
The measurement accuracy and maximum range depend on the
reflection ratio on the target surface, the angle at which the laser
beam falls on the target surface, and environmental conditions.
Reflectivity depends on the surface texture, color, size, and
shape of the object. Typically, a glossy, bright surface will have
higher reflectivity than a darker surface.
×1.0
M
O u t
14 :4 6/2019 /05/08 239 m
