1
WARNING: CHOKING HAZARD
Children under 3 years old can choke or suocate on small parts in this
product. This product is not a toy; keep out of reach of children.
TABLE OF CONTENTS
1. Overview ........................................................ 2
2. Features ......................................................... 2
3. Tech Specs .......................................................3
4. Accessories ..................................................... 4
5. Components and Controls ............................. 5
6. Description of Control Buttons & Shortcuts ... 6
7. Quick Start Guide............................................ 8
8. Charging the Battery Packs ............................ 9
9. Installing a Battery Pack ................................ 10
10. Removing the Battery Pack.............................11
11. Battery Safety Warnings .................................11
12. External Power Supply ................................... 12
13. Operating Instructions ................................... 13
14. Non-Uniformity Correction............................. 17
15. Photography and Video Recording ................ 19
16. Accessing the Internal Memory .................... 20
17. Video Output.................................................. 21
18. Using the InfiRay OutdoorApp ...................... 21
19. Digital Zoom ................................................. 22
20. Ultra-clear Mode ........................................... 22
21. Integrated Laser Rangefinder ....................... 23
22. Main Menu Options and Descriptions........... 24
23. Basic Inspection ........................................... 33
24. Basic Maintenance ........................................ 33
25. Warranty........................................................ 34
26. FCC Statement .............................................. 35
27. General Troubleshooting .............................. 35
NOTE: There is no scheduled maintenance or service necessary to keep this product in
compliance and no user service or maintenance is required.
This Laser Product is designated as Class 3R during all procedures of operation.
Wavelength: 905nm
Laser Power for Classification: <800nJ
Emission Type: Pulsed, Invisible
Emission Frequency 5kHz
Beam Diameter: 20mm*5mm
Divergence: 2mRad*0.5Rad
INVISIBLE LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
NOTES:
There is no service required or allowed of this product by the end user.
This product is to be serviced or repaired only by factory authorized technicians.
This product is not to be opened or modified by the user.
The user is not to modify the unit or remove protective covers or housing. Service is
only to be handled by authorized factory trained technicians. This product has no user-
serviceable parts.
Do not point laser or allow laser light to be directed or reflected toward other people or
reflective objects.
Operators should be trained to not target the eyes of people, animals, and pets or aim at
reflective objects, etc.
There is a potential hazard of eye or skin exposure to laser radiation if the included
instructions are not followed.
This laser is never to be operated if the unit is defective or the cover or seal is damaged.
Always operate the product with the aperture pointed downrange.
CAUTION
Use of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure.
2601 State Hwy 121, Building 3, Suite 306, Lewisville, TX 75056
800.769.7125 info@irayusa.com
NOTICE: This product is a Class 3R laser product.
WARNING!
ITAR REQUIREMENTS
These products may be subject to export and foreign trade control laws of
the United States and may not be exported without prior approval of the U.S.
Department of State. Learn more at irayusa.com/ITAR.

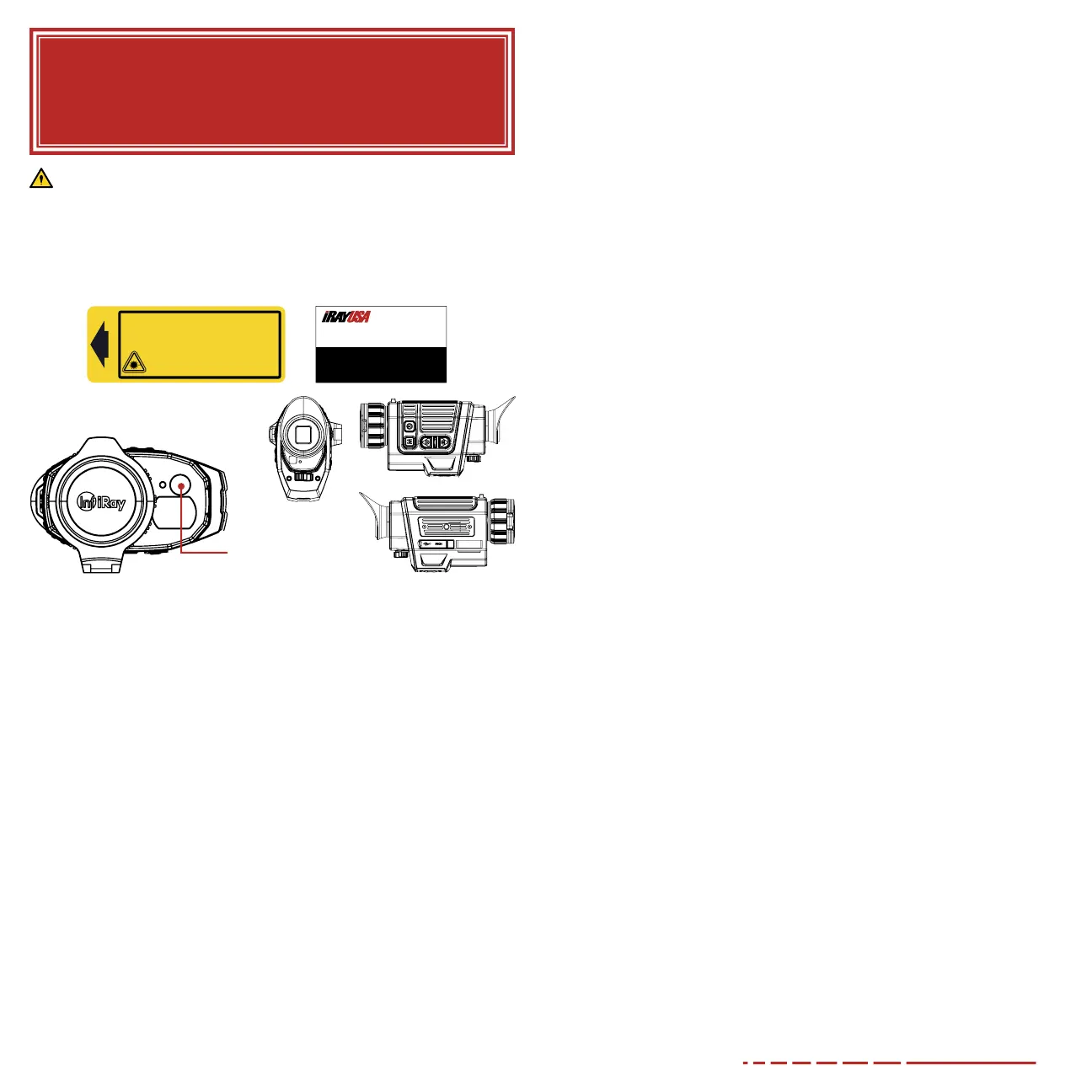

Explanatory Label Mfr ID and Certification Label
INVISIBLE LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
905nm <800nJ 25nSec 5kHz
EN/IEC 60825-1 2014
LASER APERTURE
Complies with FDA performance standards for
laser products except for conformance with IEC
60825-1 Ed. 3., as described in Laser Notice No.
56, dated May 8, 2019.
SN:XXXXXX
800 Railhead Rd
STE #316
Fort Worth, TX 76106
IRAY-FH35RV2
FCC ID: 2AYGT-26-00
.94 in
Laser
Aperture

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the InfiRay FINDER FH35R V2 and is the answer not in the manual?

InfiRay FINDER FH35R V2 Specifications

General IconGeneral
Resolution384x288
Pixel Size12 μm
NETD<40 mK
Frame Rate50 Hz
Lens35 mm
Detection Range1818 m
Ingress ProtectionIP67
Internal Memory16 GB
Detector TypeUncooled Vox
Battery TypeLi-ion
Battery Life6 hours
Diopter Adjustment-5D to +5D
Operating Temperature-20°C to +50°C
Storage Temperature-30°C to 60°C
Dimensions160x70x60 mm
