InfiRay TD50L User Manual

XIV. Shortcut Menu
The shortcut menu can be used for a quick setup of the basic settings of some common
functions, including reticle style, reticle color, image sharpness, and zeroing distance. Press and
hold the encoder (7) to save the operation and return to the home screen.


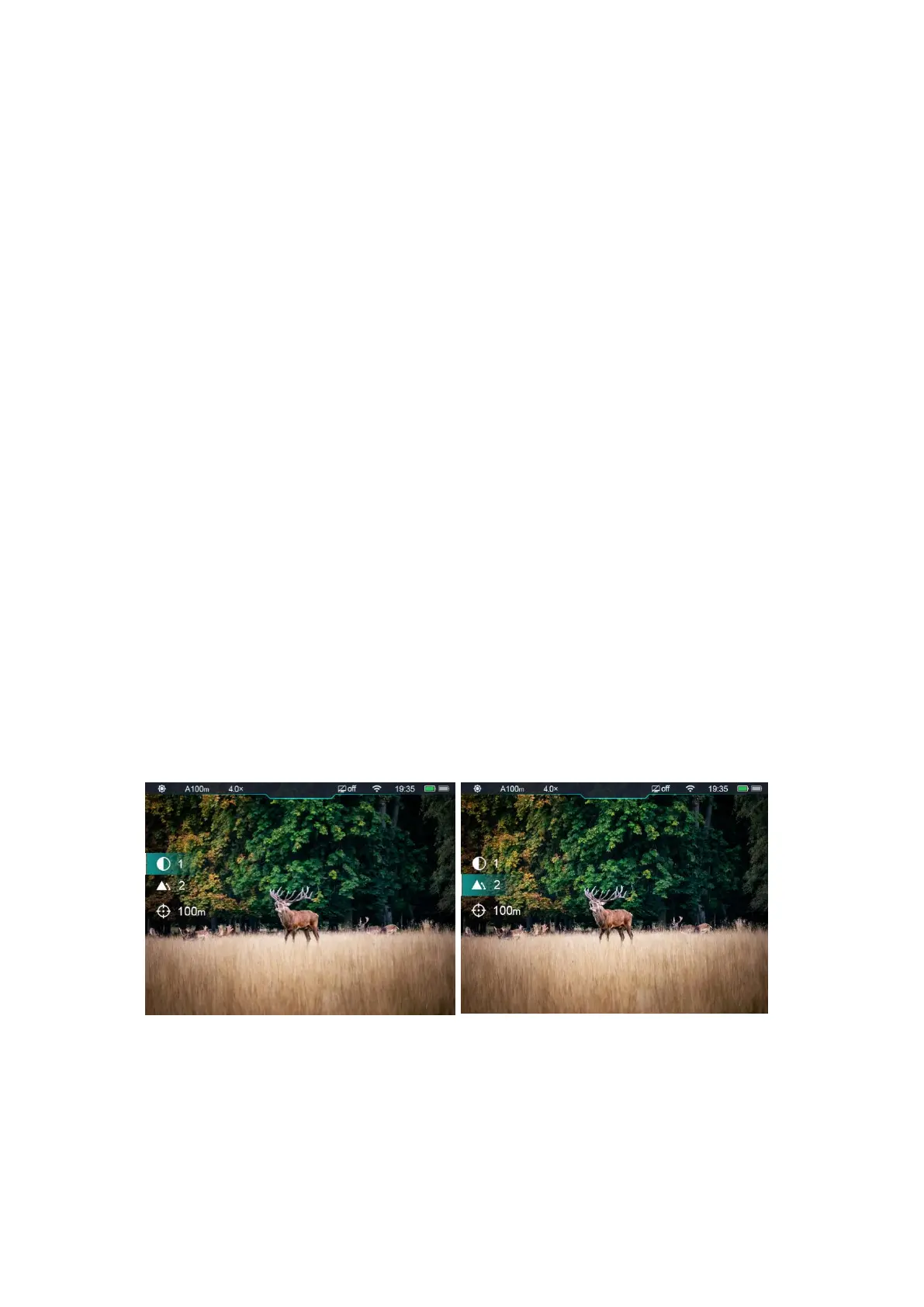

On the home screen, press the rotary encoder (7) to go to the shortcut menu screen;
Turn the rotary encoder (7) to switch between the following function options, and the icon
background of the selected option will be highlighted:
Image contrast: Turn the encoder (7) to select the option, and press the encoder (7) to adjust
the image contrast from level 1 to 5;
Image sharpness: Turn the encoder (7) to select the option, and press the encoder (7) to
adjust the image sharpness from level 1 to 5;
Zeroing distance: Turn the encoder (7) to select the option, and press the encoder (7) to
switch between the preset distances;

Press and hold the rotary encoder (7) to save the changes and return to the home
screen.
Note: In the shortcut menu, if there is no operation within 15s, the device will automatically save
the changes and return to the home screen.

InfiRay TD50L Specifications

General

Objective lens diameter	50 mm
Pixel size	12 μm
Frame rate	50 Hz
Display type	AMOLED
Sensor resolution	384x288 pixels
Digital zoom	4x
Thermal Sensitivity	<40mK
Spectral Range	8-14μm
Display	1.03-inch
Operating Temperature	-20°C to +50°C
