InfiRay TD50L User Manual

Zeroing
Please set up the zeroing profile and zeroing distance before carrying out any
zeroing operation.
The Tube series supports any zeroing distance between 1 and 999 meters.

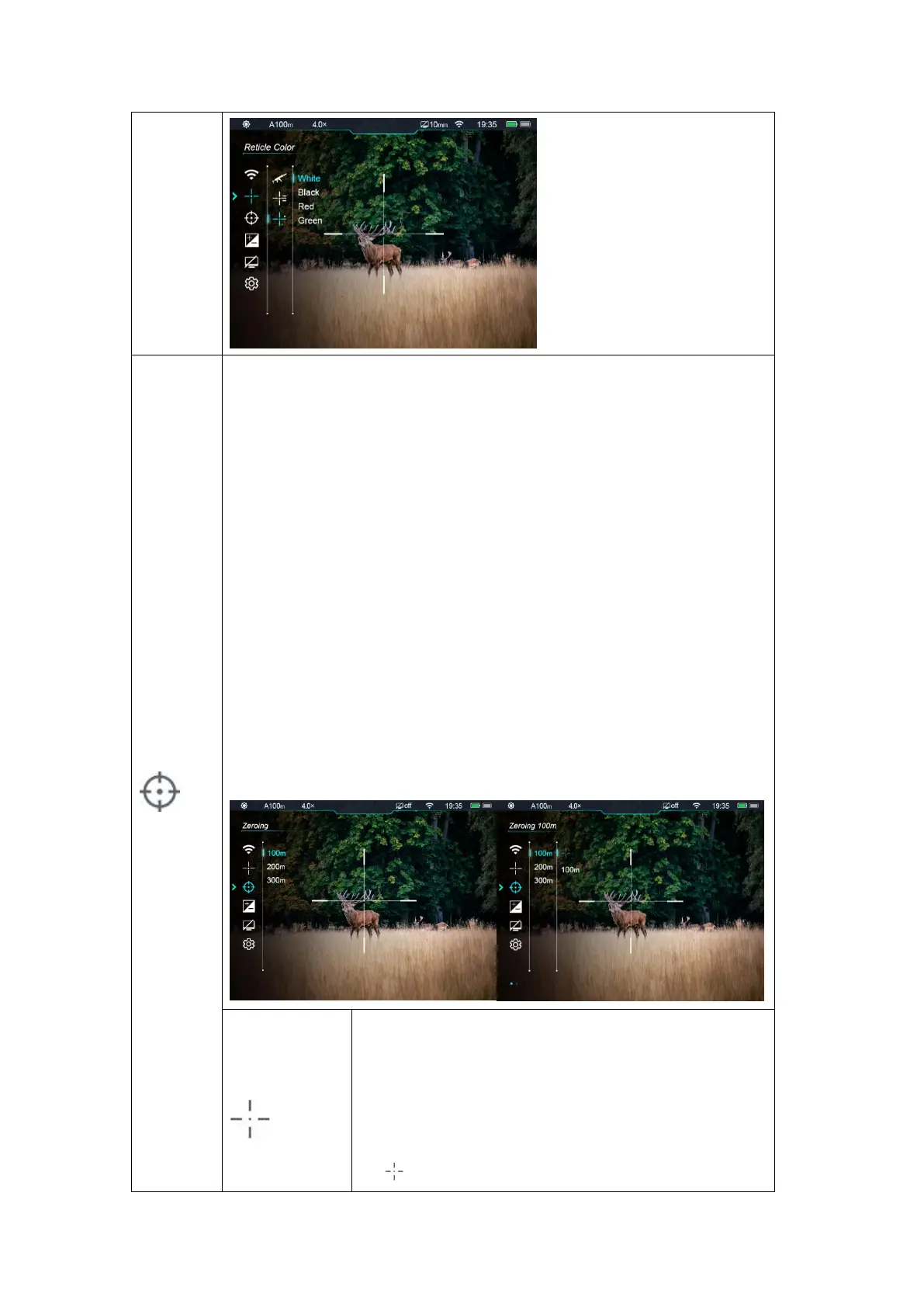

 Press and hold the rotary encoder (7) to open the advanced menu;
 Turn the rotary encoder (7) to select the "Zeroing" function option;
 Press the rotary encoder (7) to open the secondary menu of the zeroing
function, where displays 3 zeroing distances;
 Turn the rotary encoder (7) to select the zeroing distance according to the
distance set for the target;
 Press the rotary encoder (7) to confirm the zeroing distance, and open the
zeroing distance submenu, including two options, that is "Zeroing" and
"Zeroing Distance";
Zeroing
 If the preset zeroing distance is consistent with that
displayed on the device, you can perform zeroing directly
following the steps as below:
 Turn the rotary encoder (7) to select the zeroing function
;

InfiRay TD50L Specifications

General

Objective lens diameter	50 mm
Pixel size	12 μm
Frame rate	50 Hz
Display type	AMOLED
Sensor resolution	384x288 pixels
Digital zoom	4x
Thermal Sensitivity	<40mK
Spectral Range	8-14μm
Display	1.03-inch
Operating Temperature	-20°C to +50°C
