InFocus IN116 User Manual

7
Connecting a computer source
VGA connection
Connect one end of the provided computer cable to the Computer in 1/Computer
in 2 connector on the projector and the other to the VGA connector on your
computer. If you are using a desktop computer, you will need to disconnect the
monitor cable from the computer’s video port first.
HDMI connection (IN116 only)
HDMI is a standard, uncompressed, all-digital audio/video interface. HDMI
provides an interface between sources, such as set-top boxes, DVD players, and
receivers and your projector. Plug an HDMI cable into the video-out connector on
the video device and into the HDMI connector on the projector.
Connecting power
Connect the black power cord to the Power connector on the rear of the projector
and to your electrical outlet. If the Power Saving Mode feature is off, the Power
LED on the Status Indicator Panel (page 11) blinks blue. If the Power Saving Mode
feature is on, the Power LED is steady blue. By default, this feature is
off. You can
change the setting, see page 28. NOTE: Always use the
power cord that shipped
with the projector.
Optional computer connections
To get sound from the projector, connect an audio cable (optional cable, not
included) to your computer and to the Audio in connector on the projector. You
may also need an adapter.
If you are using a desktop computer and want to see the image on your computer
scre
en as well as on the projection screen, connect to the desktop’s computer cable
to Computer 1 and the desktop’s monitor cable to the Computer out connector on
the projector.

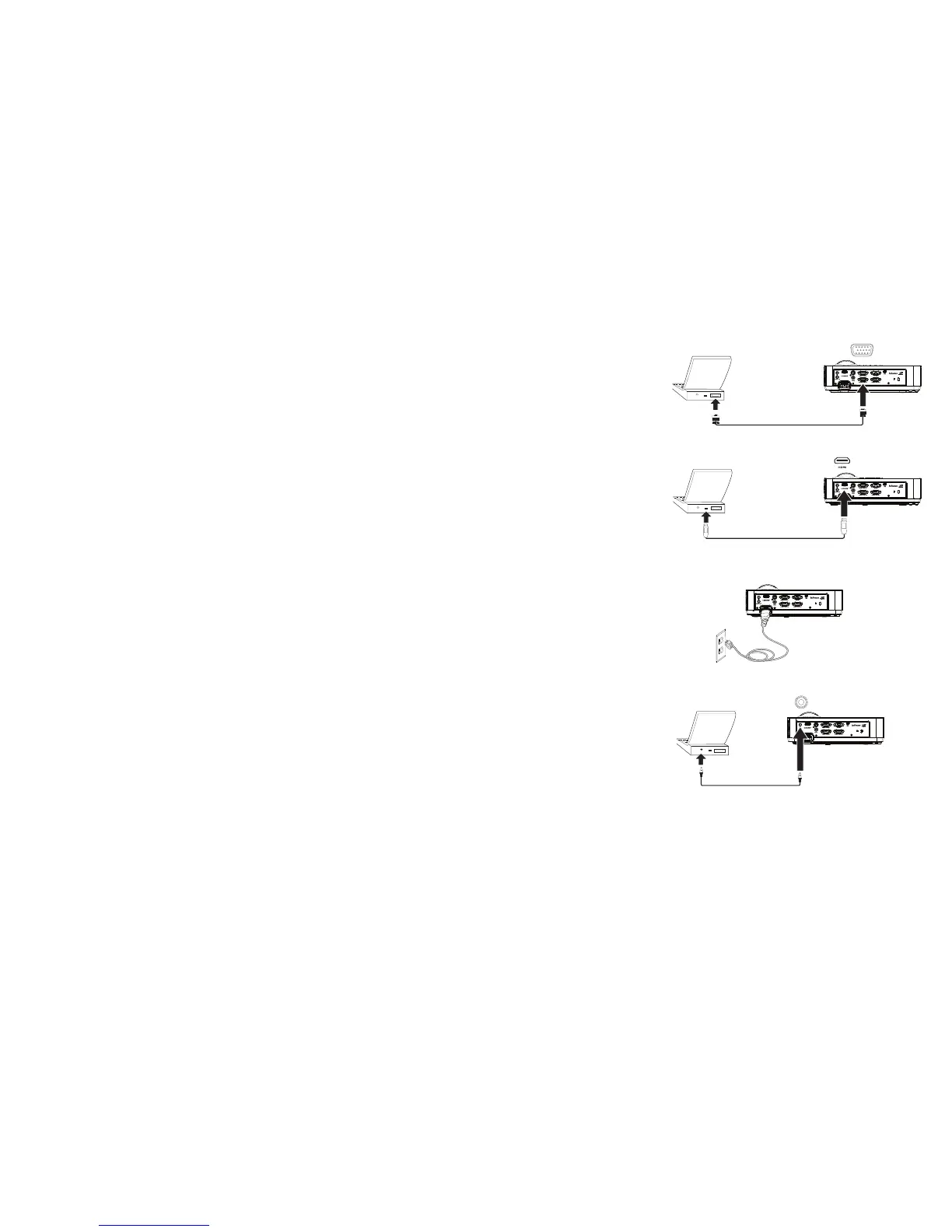

connect VGA cable
connect HDMI (IN116 only)
connect power
connect audio cable

InFocus IN116 Specifications

General

Matrix size	0.65 \
Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1.41 - 9.66 m
Projection technology	DLP
Supported aspect ratios	4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)	4000:1
Screen size compatibility	45 - 303 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	± 40 °
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	100 kHz
Horizontal synchronization (min)	31 kHz
Projector brightness (economic mode)	2200 ANSI lumens
Focus	Manual
Offset	13 %
Throw ratio	1.47 - 1.83:1
Zoom capability	Yes
Focal length range	- mm
Lamp type	UHP
Lamp power	180 W
Light source type	Lamp
Lamp power (economic mode)	150 W
Service life of light source	5000 h
Service life of light source (economic mode)	6000 h
DVI port	No
HDMI version	1.3
Audio (L/R) in	-
USB connector type	Mini-USB B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1920 x 1200 (WUXGA)
RMS rated power	2 W
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
Power consumption (max)	260 W
Power consumption (standby)	- W
Power consumption (typical)	235 W
Noise level	30 dB
Preset modes	Beige wall, Blackboard, Bright, Cinema, Custom, Presentation, Whiteboard
Certification	UL, c-UL, FCC, CE
Noise level (economic mode)	28 dB
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, KOR, NOR, POL, POR, RUS, SWE, TUR
Operating altitude	0 - 3048 m
Operating temperature (T-T)	5 - 35 °C
Cables included	AC, VGA

Weight and Dimensions

Depth	235 mm
Width	284 mm
Height	70 mm
Weight	2170 g
Package width	330 mm
Package height	150 mm
Package weight	3670 g
