InFocus IN116 User Manual

6
Positioning the projector
To determine where to position the projector, consider the size and shape of your
screen, the location of your power outlets, and the distance between the projector
and the rest of your equipment. Here are some general guidelines:
• Position the projector on a flat
surface at a right angle to the screen. The IN112
and IN114 must be at least 45.3” (1.2m) from the projection screen, the
IN114ST must be at least 31” (.8m) from the projection screen, and the IN116
must be at least 55.4” (1.4m) from the projection screen.
• If you are installing the projector on the ceiling, we strongly recommend using
InFocus approved ceiling mounts for proper fitting, ventilation and
installation. Refer to the installation guide that comes with the InFocus Ceiling
Mount Kit (p/n PRJ-MNT-UNIV) for more information. The warranty does
not cover any damage caused by use of non-approved ceiling mount kits or by
installing in an improper location. To turn the image upside down, see “Ceiling
mount” on page 27. We recommend using an InFocus authorized ceiling
mount.
• Position the projector the de
sired distance from the screen. The distance from
the lens of the projector to the screen and the video format determine the size
of the projected image.
• The image offset for the IN112/IN114/IN1
14ST is
115% +/-5%. This means
that if you have an image 60 inches (1.5 meters) tall from a table-mounted
projector, the bottom of the image will be 9 inches (22.9 cm) above the
centerline of the lens. The image offset for the IN116 is 113% +/-5%. This
means that if you have an image 60 inches (1.5 meters) tall from a table-
mounted projector, the bottom of the image will be 7.8 inches (19.8 cm) above
the centerline of the lens.

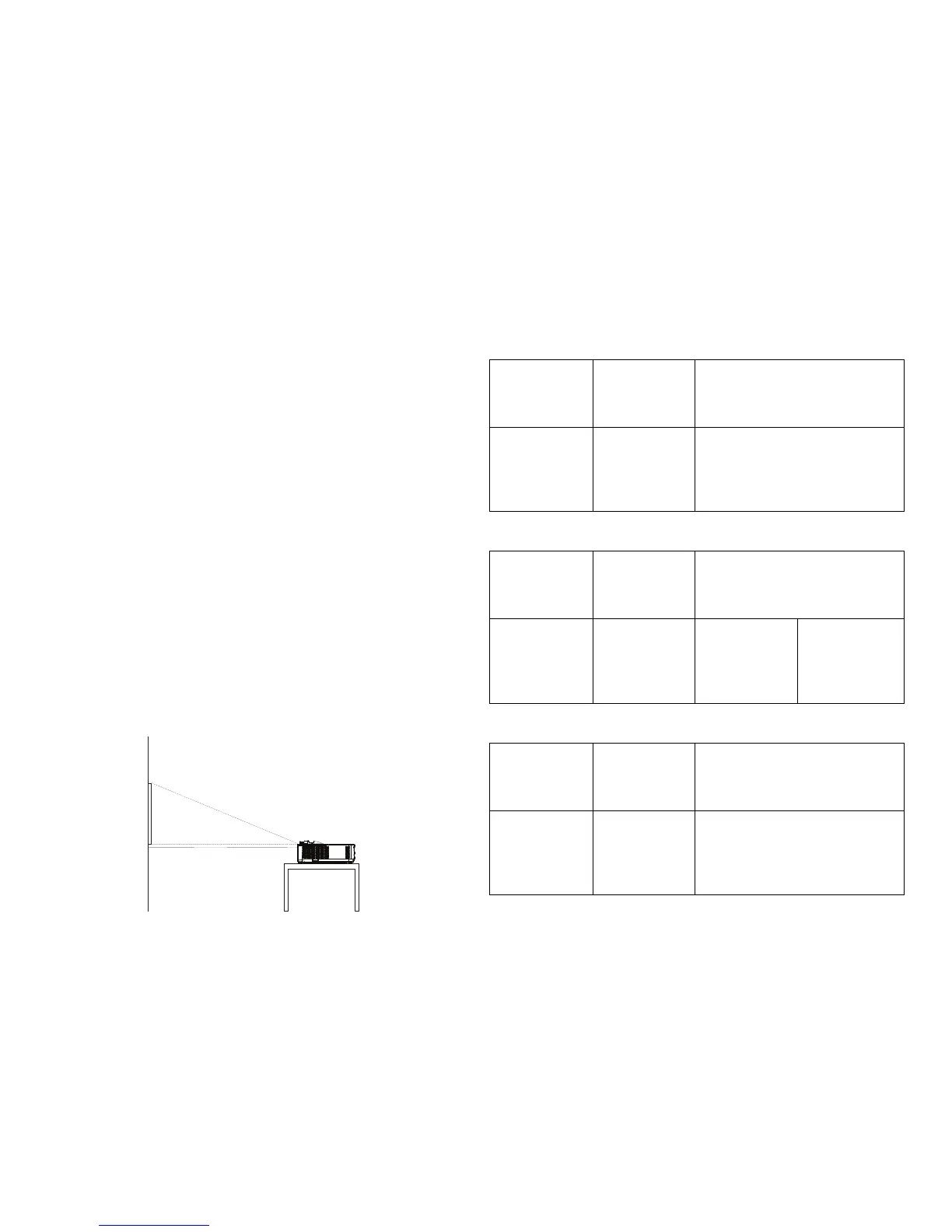

60 inches
high image
bottom of image 9
inches above center
of lens
Projection angle
lens center
Table 1: IN112 (SVGA)/IN114 (XGA) Screen size
Diagonal Screen
Size (inches/m)
Size of the
Projected Image
Width
(inches/m)
Distance to screen
Minimum
distance
(inches/m)
Maximum
distance
(inches/m)
30”/0.8m 24”/0.6m 45.3”/1.2m 50.6”/1.3m
60”/1.5m 48”/1.2m 92.2”/2.3m 102.9”/2.6m
80”/2.0m 64”/1.6m 123.5”/3.1m 137.7”/3.5m
100”/2.5m 80”/2.0m 154.8”/3.9m 172.5”/4.4m
150”/3.8m 120”/3.0m 233.0”/5.9m 259.6”/6.6m
Table 2: IN114ST (XGA) Screen size
Diagonal Screen
Size (inches/m)
Size of the
Projected Image
Width
(inches/m)
Distance to screen
Minimum
distance
(inches/m)
Maximum
distance
(inches/m)
65”/1.6m 52”/1.3m 31”/.8m 65”/1.6m
81”/2.1m 65”/1.6m 39”/1.0m 81”/2.1m
100”/2.5m 80”/2.0m 48”/1.23m 100”/2.5m
120”/3.0m 96”/2.4m 58”/1.48m 120”/3.0m
150”/3.8m 120”/3.0m 73”/1.85m 150”/3.8m
Table 3: IN116 (WXGA) Screen size
Diagonal Screen
Size (inches/m)
Size of the
Projected Image
Width
(inches/m)
Distance to screen
Minimum
distance
(inches/m)
Maximum
distance
(inches/m)
45”/1.1m 38”/1.0m 55.4”/1.4m 69.3”/1.8m
60”/1.5m 51”/1.3m 74.5”/1.9m 92.9”/2.4m
80”/2.0m 68”/1.7m 100.0”/2.5m 124.4”/3.2m
100”/2.5m 85”/2.2m 125.5”/3.2m 155.8”/4.0m
150”/3.8m 128”/3.2m 189.2”/4.8m 234.6”/6.0m

InFocus IN116 Specifications

General

Matrix size	0.65 \
Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1.41 - 9.66 m
Projection technology	DLP
Supported aspect ratios	4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)	4000:1
Screen size compatibility	45 - 303 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	± 40 °
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	100 kHz
Horizontal synchronization (min)	31 kHz
Projector brightness (economic mode)	2200 ANSI lumens
Focus	Manual
Offset	13 %
Throw ratio	1.47 - 1.83:1
Zoom capability	Yes
Focal length range	- mm
Lamp type	UHP
Lamp power	180 W
Light source type	Lamp
Lamp power (economic mode)	150 W
Service life of light source	5000 h
Service life of light source (economic mode)	6000 h
DVI port	No
HDMI version	1.3
Audio (L/R) in	-
USB connector type	Mini-USB B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1920 x 1200 (WUXGA)
RMS rated power	2 W
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
Power consumption (max)	260 W
Power consumption (standby)	- W
Power consumption (typical)	235 W
Noise level	30 dB
Preset modes	Beige wall, Blackboard, Bright, Cinema, Custom, Presentation, Whiteboard
Certification	UL, c-UL, FCC, CE
Noise level (economic mode)	28 dB
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, KOR, NOR, POL, POR, RUS, SWE, TUR
Operating altitude	0 - 3048 m
Operating temperature (T-T)	5 - 35 °C
Cables included	AC, VGA

Weight and Dimensions

Depth	235 mm
Width	284 mm
Height	70 mm
Weight	2170 g
Package width	330 mm
Package height	150 mm
Package weight	3670 g
