InFocus IN24 Reference Guide

2
Table of Contents
Introduction 3
Positioning the projector 5
Projector and device connector guide 6
Connecting a computer source 9
Required computer connections 9
Optional computer connections 9
Displaying an image 10
Adjusting the image 11
Connecting a video device 12
Video device connections 13
Composite video connection 13
S-video connection 13
VESA connection 13
Component video connection 13
Shutting down the projector 14
Troubleshooting your setup 14
Using the remote control 22
Using the audio 23
Using the keypad buttons 24
Optimizing computer images 25
Presentation features 25
Optimizing video images 26
Customizing the projector 26
Using the menus 27
Picture menu 28
Advanced menu 29
Settings menu 31
Maintenance 35
Cleaning the lens 35
Replacing the projection lamp 35
Using the security lock 37
Important Operating Considerations for Safety
• Place the projector in a horizontal position no greater than 15 degrees
off axis.
• Locate the projector in a well-ventilated area without any obstructions
to intake or exhaust vents. Do not place the projector on a tablecloth or
other soft covering that may block the vents.
• Locate the projector at least 4' (1.2 m) away from any heating or cooling
vents.
• Use only InFocus-approved ceiling mounts.
• Use only the power cord provided. A surge-protected power strip is
recommended.
• Refer to this guide for proper startup and shutdown procedures.
• Warning: Hg – Lamp contains mercury. Manage in accordance
with local disposal laws. See www.lamprecycle.org.

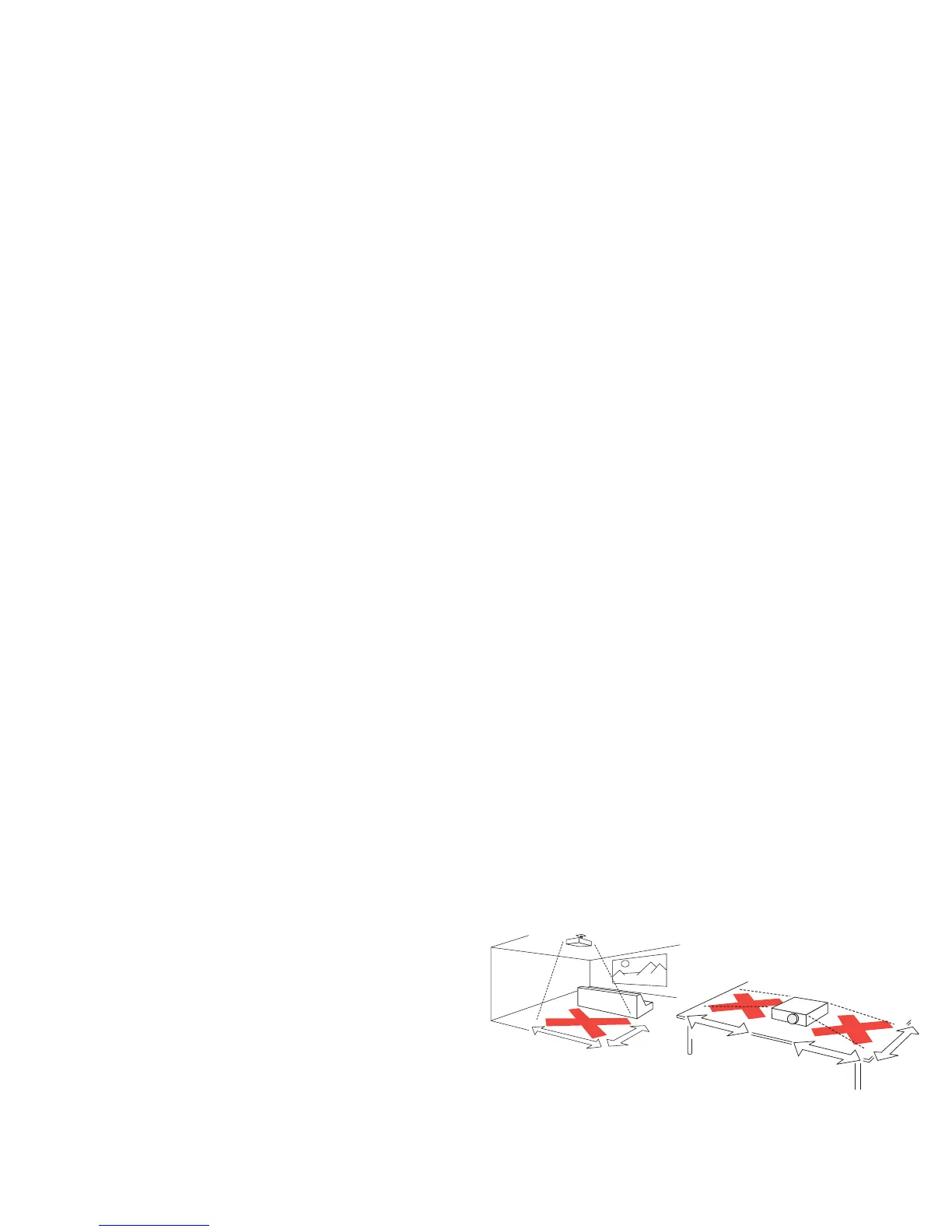

• In the unlikely event of a lamp rupture, particles may exit through the
projector side vents. When the projector is turned on, keep people,
food, and drinks out of the "keep out" area under and around the pro-
jector, as indicated by the "X" areas below.
Follow these instructions to help ensure image quality and lamp life over
the life of the projector. Failure to follow these instructions may affect the
warranty. For complete details of the warranty, see the Warranty booklet.
5
’
/1.5m
8
’
/2.4m
2
’
/0.6m
3
’
/1m
3
’
/1m

InFocus IN24 Specifications

General

Matrix size	0.55 \
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	- m
Vertical scan range	50 - 85 Hz
Horizontal scan range	15.85 - 85 kHz
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (typical)	2000:1
Screen size compatibility	33.6 - 248.4 \
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	25 - 30 °
Projector brightness (economic mode)	1360 ANSI lumens
Lamp type	SHP
Lamp power	200 W
Light source type	Lamp
Lamp power (economic mode)	160 W
Service life of light source	3000 h
3D	-
Full HD	No
Supported video modes	1035i, 1080i, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Noise level	35 dB
Plug and Play	Yes
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	250 W
Operating temperature (T-T)	10 - 40 °C
Focal length range	- mm
RS-232 ports	0
Maximum analog resolution	1024 x 768 pixels
RMS rated power	1 W
Number of built-in speakers	1
USB connector type	USB Type-B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black, Silver

Weight and Dimensions

Weight	2700 g
