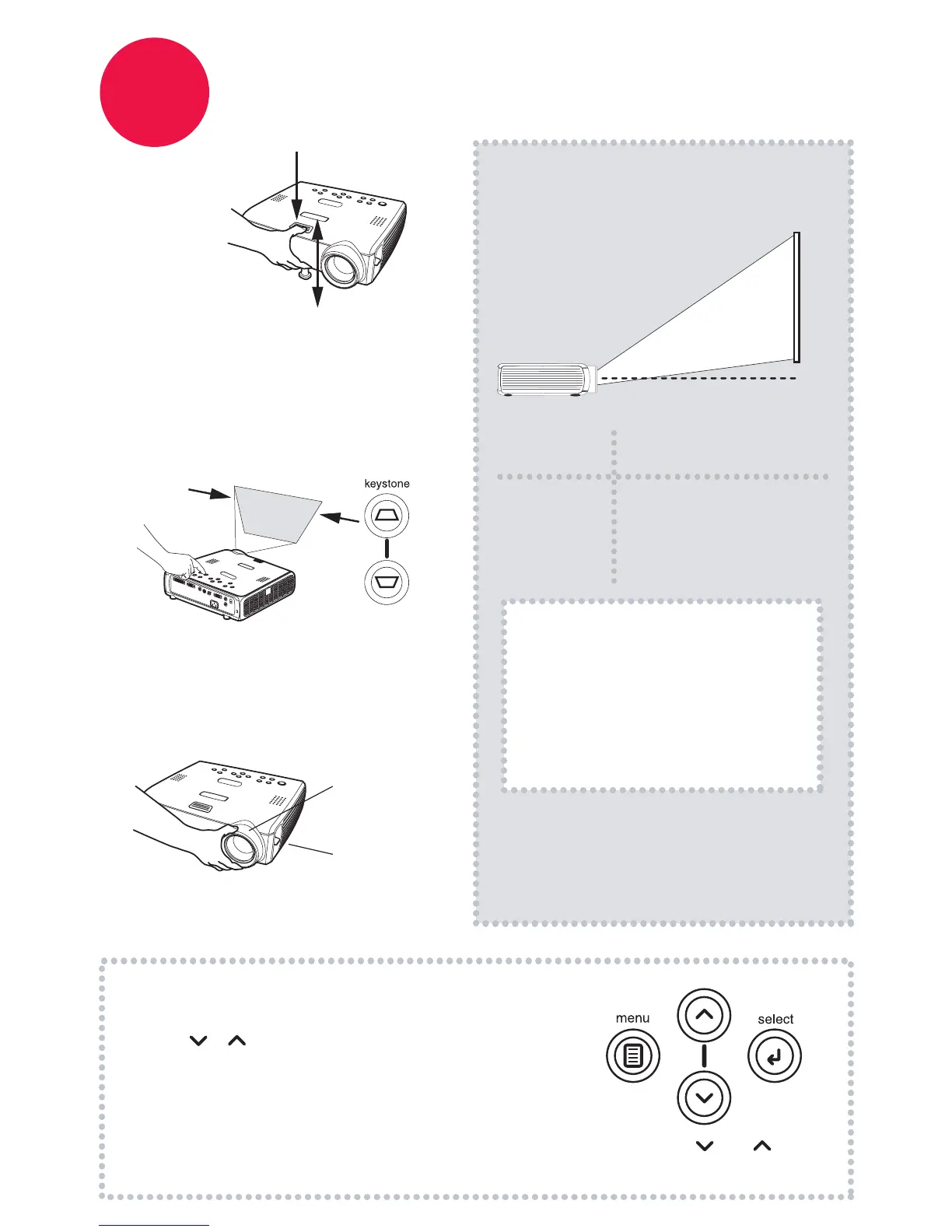

1 Height
2 Keystone
3 Zoom and focus
1 Hold down the release button on
top of the projector.
2 Lift the front of the projector to
the desired height.
3 Release the button.
1 Press menu to show menus
2 Press or to choose items (or adjust setting)
3 Press select to confirm menu choice
4 Press menu to hide menus
Press the keystone buttons to
make the picture square.
Adjust zoom first, then focus the
center of the image.
To flip the image, enable Ceiling in the
System menu (press menu, then select
Settings > System > Ceiling).
Using the menus
Ceiling mount?
Adjust the picture
Projector Location
As distance increases, the
image gets larger and
moves upwards.
Diagonal
Screen Size
Distance to Screen
Minimum Maximum
60" / 1.5m
80" / 2m
92" / 2.3m
150" / 3.8m
7'4" / 2.2m
9'9" / 3m
11'3" / 3.4m
18'4" / 5.6m
9'1" / 2.8m
12'1" / 3.7m
13'11" / 4.2m
22'8" / 6.9m
Lens center line
Focus
Zoom
1
2
Controlling your presentations
Connect the computer cable (including USB) to your computer, then use and to
move through your presentation slides.
Interactive Screen Size and
Distance Calculator
www.infocus.com/calculator
Buy a Screen and Other Custom
Accessories
www.infocus.com/store
