InFocus IN5122 Quick Start Guide

10
Displaying the picture
1.
Activate your signal source. Turn the
signal source on, and make it send the
signal to the projector.
2.
Use the VOLUME + / VOLUME - buttons
to adjust the volume.
To silence the projector, press the MUTE
button on the remote control.
3.
Press the SOURCE button on the
projector. Each time you press the button,
the projector rotates through each input
port.
You can also use the remote control to
select an input signal.
4.
Press the RESIZE button on the remote
control. Each time you press the button,
the projector rotates through each aspect
ratio mode.
5.
Use the ZOOM ring to adjust the screen
size.
6.
Use the FOCUS ring to focus the picture.
7.
Turn the VERTICAL adjuster completely
counter-clockwise. Then turn it clockwise
and adjust the vertical lens position
upward.
8.
Turn the LOCK counter clockwise to
loosen the lock of the HORIZONTAL
adjuster.
9.
Turn the HORIZONTAL adjuster
clockwise or counter-clockwise to adjust
the horizontal lens position.
10.
Turn the LOCK completely clockwise
to tighten it and lock the horizontal lens
position.
(continued on next page)

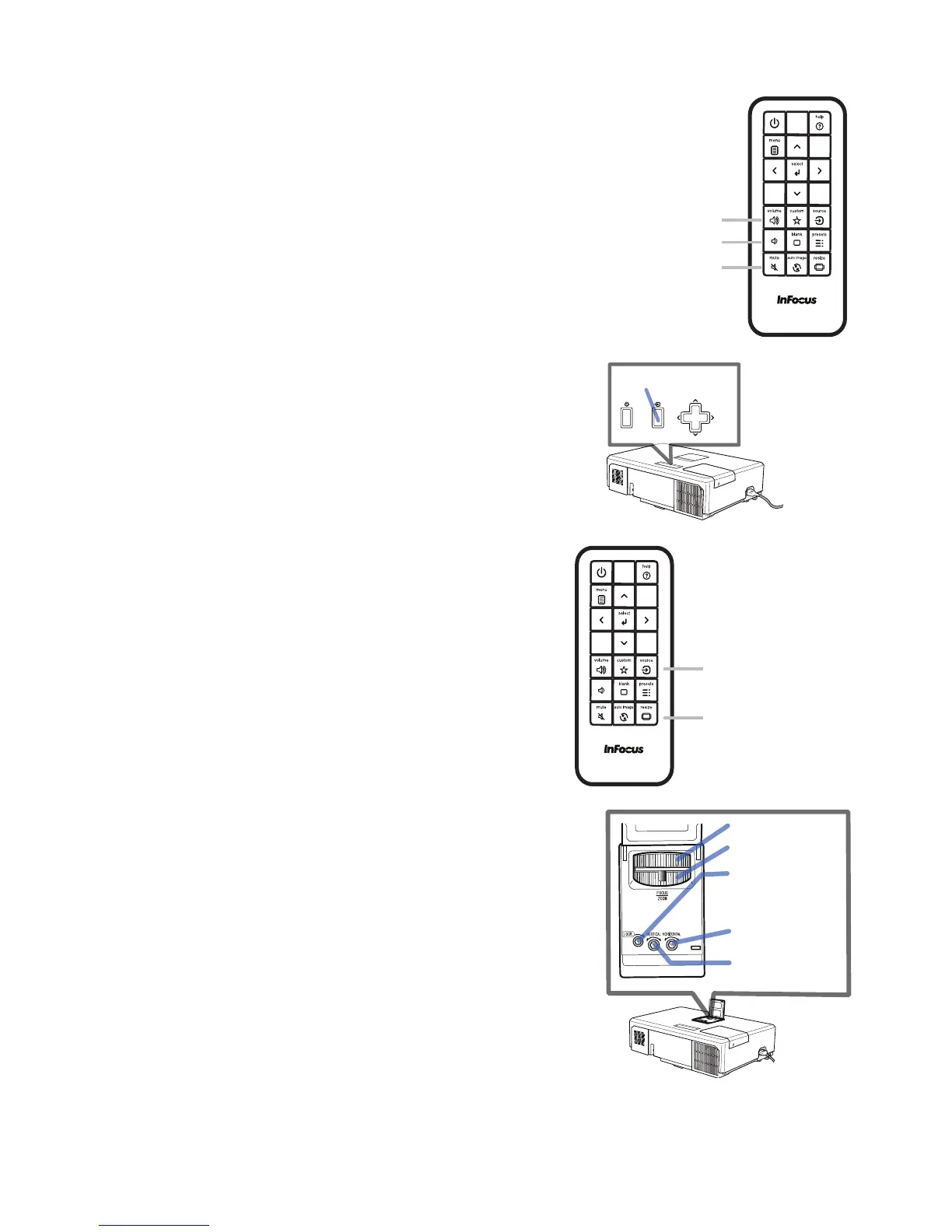

STANDBY/ON SOURCE MENU
SOURCE button
VOLUME+ button
VOLUME- button
MUTE button
SOURCE button
RESIZE button
LOCK
FOCUS ring
ZOOM ring
LOCK
(horizontal lens
position lock)
HORIZONTAL
adjuster
VERTICAL
adjuster

InFocus IN5122 Specifications

General

Matrix size	0.63 \
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Supported aspect ratios	4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)	2000:1
Screen size compatibility	35.4 - 358 \
Projector native resolution	XGA (1024x768)
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	106 kHz
Horizontal synchronization (min)	15 kHz
Focus	Manual
Throw ratio	1.5 - 2.5:1
Zoom capability	Yes
Focal length range	- mm
Vertical lens shift range	-20 - 0 °
Horizontal lens shift range	-20 - 20 %
Lamp type	UHP
Lamp power	245 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	5000 h
3D	-
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1600 x 1200 (UXGA)
RMS rated power	16 W
Number of built-in speakers	2
BNC input ports	5
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Cables included	AC, RCA, VGA
Power consumption (standby)	- W
Noise level	32 dB
Certification	UL, c-UL, FCC, CE
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, KOR, NOR, POL, POR, RUS, SWE, TUR
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Cable lock slot type	Kensington
Operating altitude	0 - 2286 m
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	318.5 mm
Width	401 mm
Height	111 mm
Weight	4800 g
Package depth	420 mm
Package width	560 mm
Package height	197 mm
Package weight	8200 g
