Setting up the Projector
Connecting the CableWizard™
3
to the Projector
CAUTION: Turn off the
computer, monitor and projector
whenever you connect or
disconnect cables.
The CableWizard
3
(referred to as “CableWizard” in this manual
for brevity) simplifies the connection process by providing a cen-
tral hub for all the connections between the projector and your
computer. The connectors on the CableWizard are labeled with
icons. The CableWizard also has an LED that lights solid green
when the projector is on and CableWizard is functioning prop-
erly. A slowly blinking LED indicates CableWizard is waiting to
initialize with the projector; a rapidly blinking LED indicates a
problem with CableWizard.
Connect the end of the CableWizard cable to the
connector on the projector’s connector panel (Figure 4).
NOTE: The LP750 is optimized
for use with newer CableWizards
(2 and 3). If you have a
CableWizard 1from older models
of In Focus projectors, we do not
recommend using it as image
quality is reduced. The label on the
bottom reads CableWizard or
CableWizard II or CableWizard
3
.
F

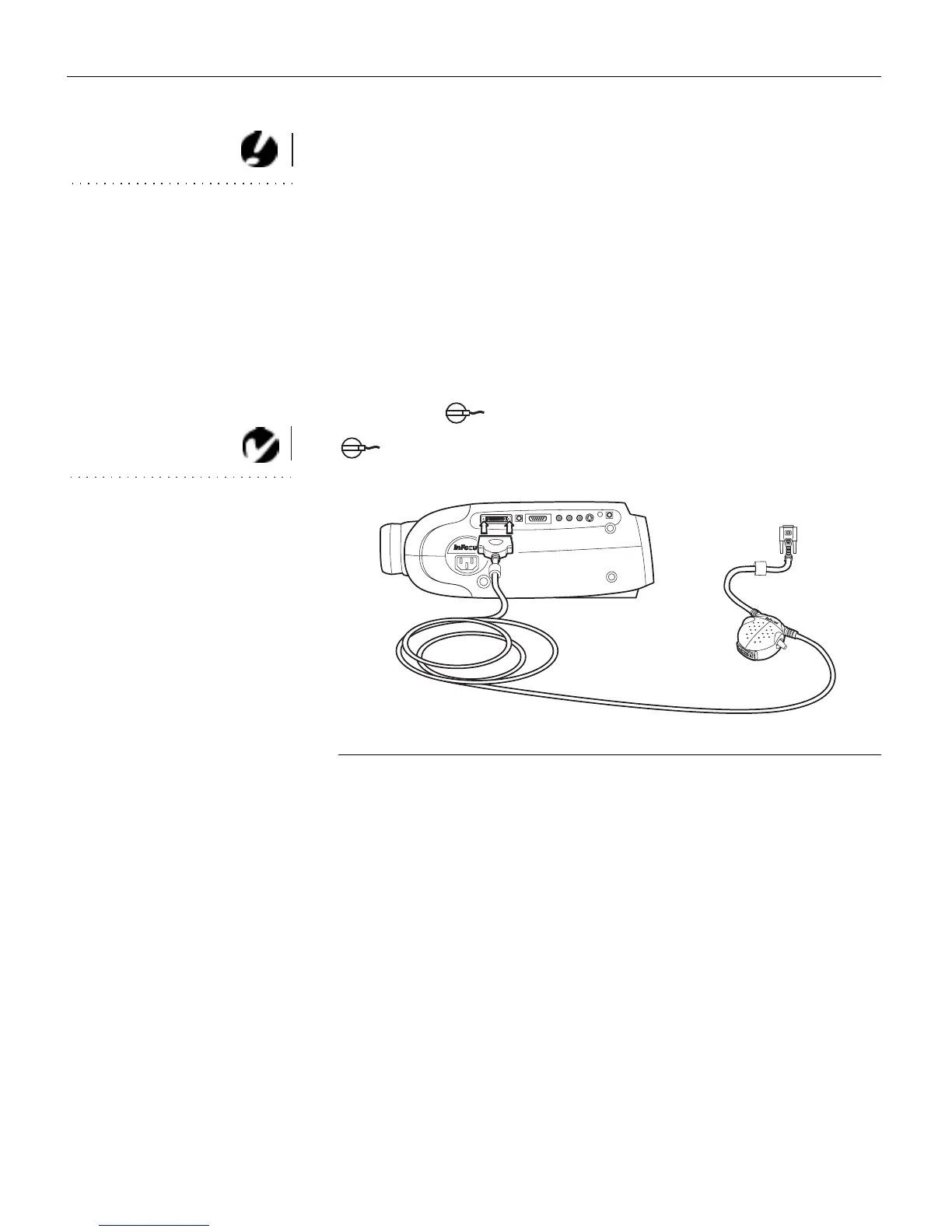

IGURE 4
Connecting the CableWizard to the projector
