InFocus Quantum Laser Core Series User Manual

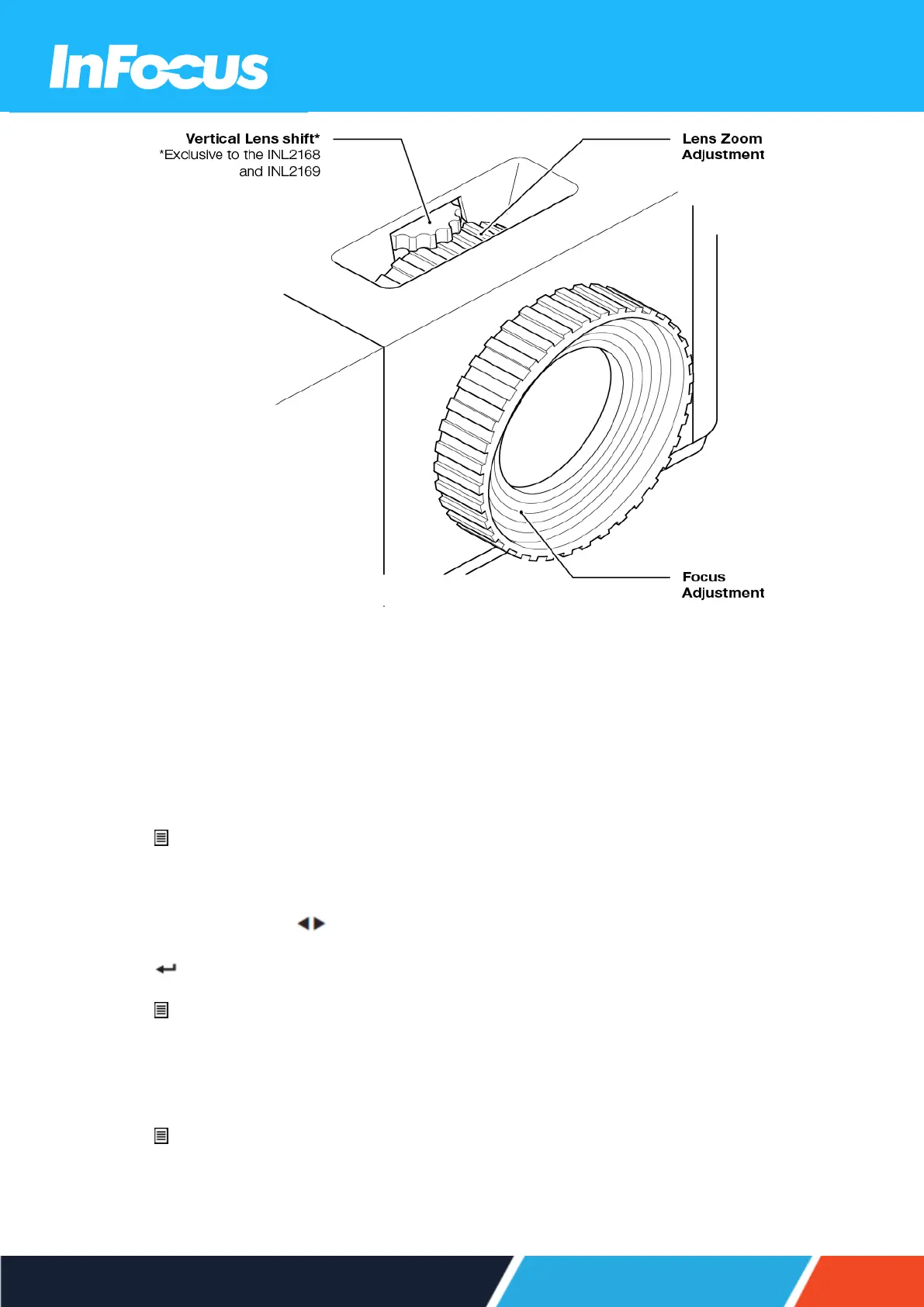

5.3 ADJUSTING THE VERTICAL OR HORIZONTAL KEYSTONE
If one side of the image is shorter than the other, for example the top is shorter than the bottom, you can either reposition the
projector or use keystone correction.
To adjust the top or bottom of the picture (the pitch), angle the projector lower or higher. If that is not possible, adjust the vertical
keystone:
l
Press the button on the projector keypad or the Menu button on the remote control to open the OSD menu.
l
Select Image > V Keystone.
l
Adjust the settings by using the keys.
l
Press the or Enter button to select a setting.
l
Press the or Menu button to close the OSD menu.
The menu will close and the projector will automatically save the new settings.
To adjust the left or right side of the picture (the yaw), turn the projector slightly left or right. If that is not possible, adjust the
horizontal keystone:
l
Press the button on the projector keypad or the Menu button on the remote control to open the OSD menu.
l
Select Image > H Keystone .
26
