Engineering Information
Technical Specifications
Power supply Provided by the host control panel
Power supply voltage 10 to 18V (max)
Power supply current 50mA quiescent, 200mA (max) when operating
Negative Input Trigger voltage < 1.0V
Positive input Trigger voltage 3.5V to 15V (max)
Temperature range (operating) 0 to 60ºC
Dialling method DTMF (tone)
Ringer Equivalence Number REN = 1
14
The Informa may be used as a standalone unit, i.e.
NOT connected to an Intruder Alarm Panel. In this
case, an external supply and switches can be used to
operate the Inputs IP1, IP2 and IP3 to trigger the
Informa. The Inputs can be configured for Active
Low or Active High operation.

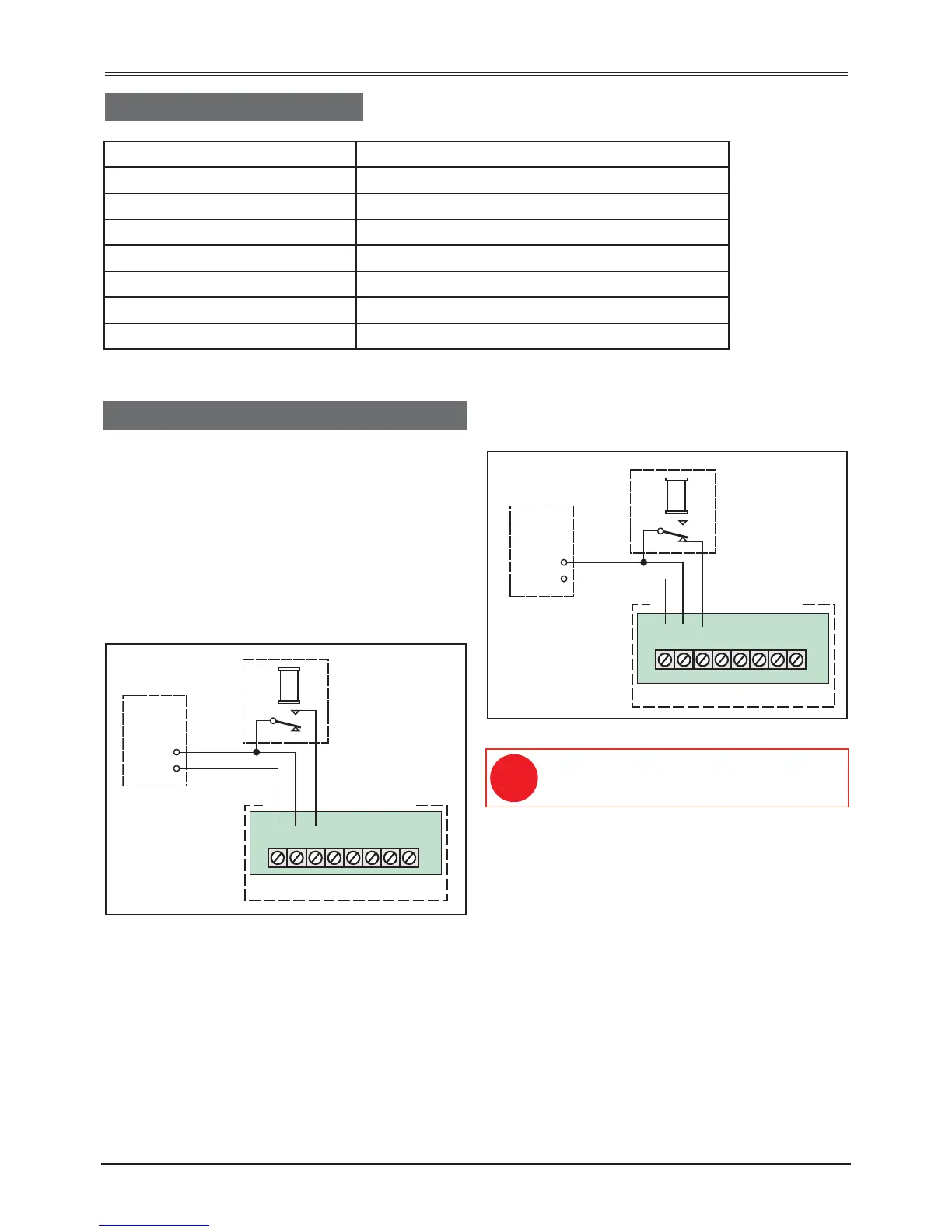

a) The diagram below is for an Active Low input
configured using a relay to trigger IP1.
b) The diagram that follows is for an Active High
input configured using a relay to trigger IP1. In this
case the wiring is reversed, and the inputs are
connected to -ve.
Using the Informa as a Standalone Unit
