INSTALLATION
Unpacking and Inspection
Before installation, please inspect the unit. Make sure that nothing inside the package is damaged. The package
should contain the following items:
The unit x1
User manual x1
Communication cable x1
Software CD x1
Preparation

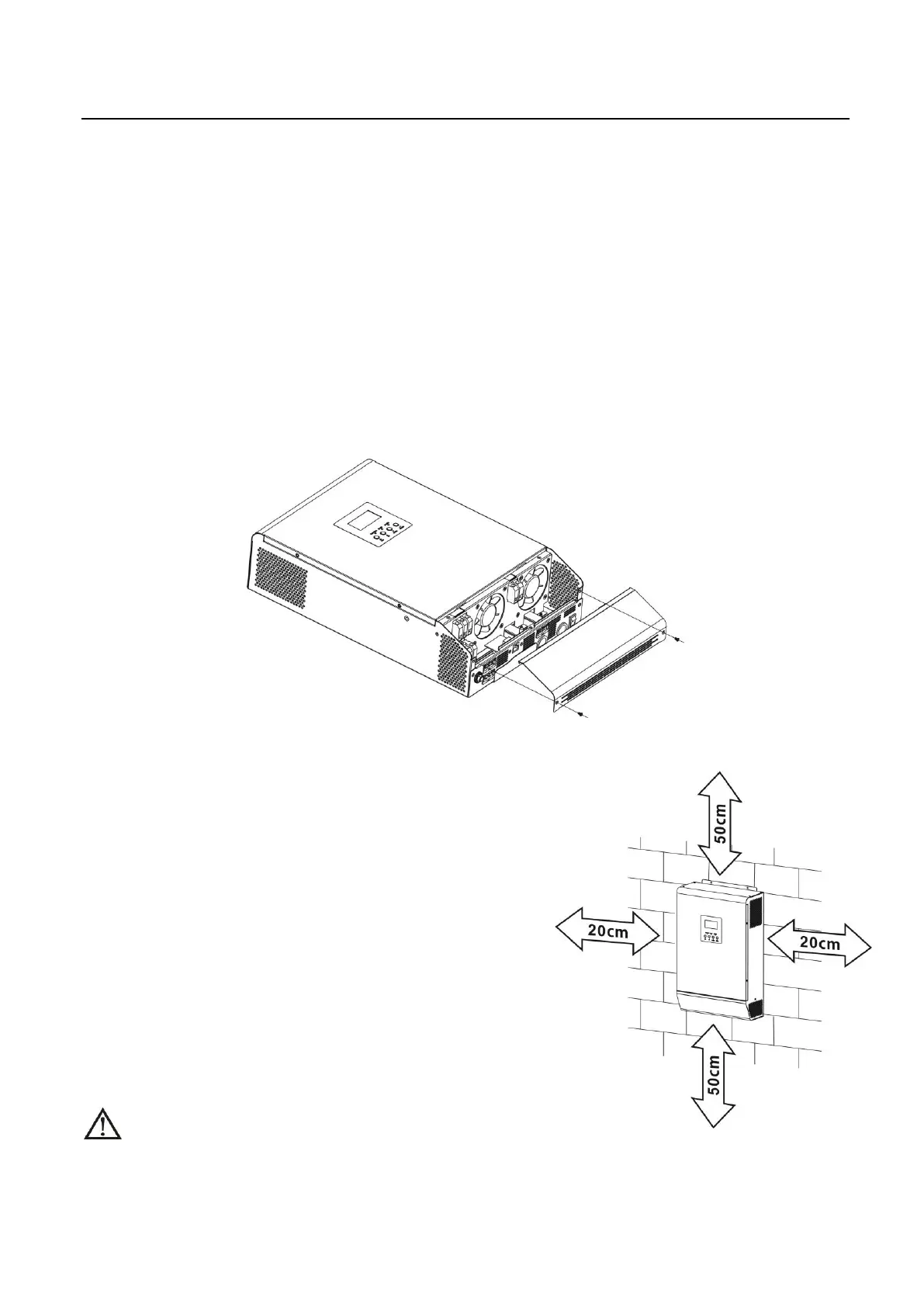

Before connecting all wirings, please take off the bottom cover by removing the two screws as shown below.
Mounting the Unit
Consider the following points before selecting where to install:
Do not mount the inverter on flammable construction
materials.
Mount on a solid surface
Install this inverter at an eye level in order to allow the LCD
display to be read at all times.
For proper air circulation to dissipate heat, allow a clearance
of approx. 20 cm to the side and approx. 50 cm above and
below the unit.
The ambient temperature should be between 0°C and 55°C
to ensure optimal operation.
The recommended installation position is to be adhered to
the wall vertically.
Make sure to keep other objects and surfaces as shown in
the diagram to guarantee sufficient heat dissipation and to
have enough space for removing wires.
SUITABLE FOR MOUNTING ON CONCRETE OR
OTHER NON-COMBUSTIBLE SURFACE ONLY.
