OPERATION
Power ON/OFF
Once the unit has been properly installed and the batteries are correctly connected, simply press the On/Off
switch (located on the button of the case) to switch on the unit.

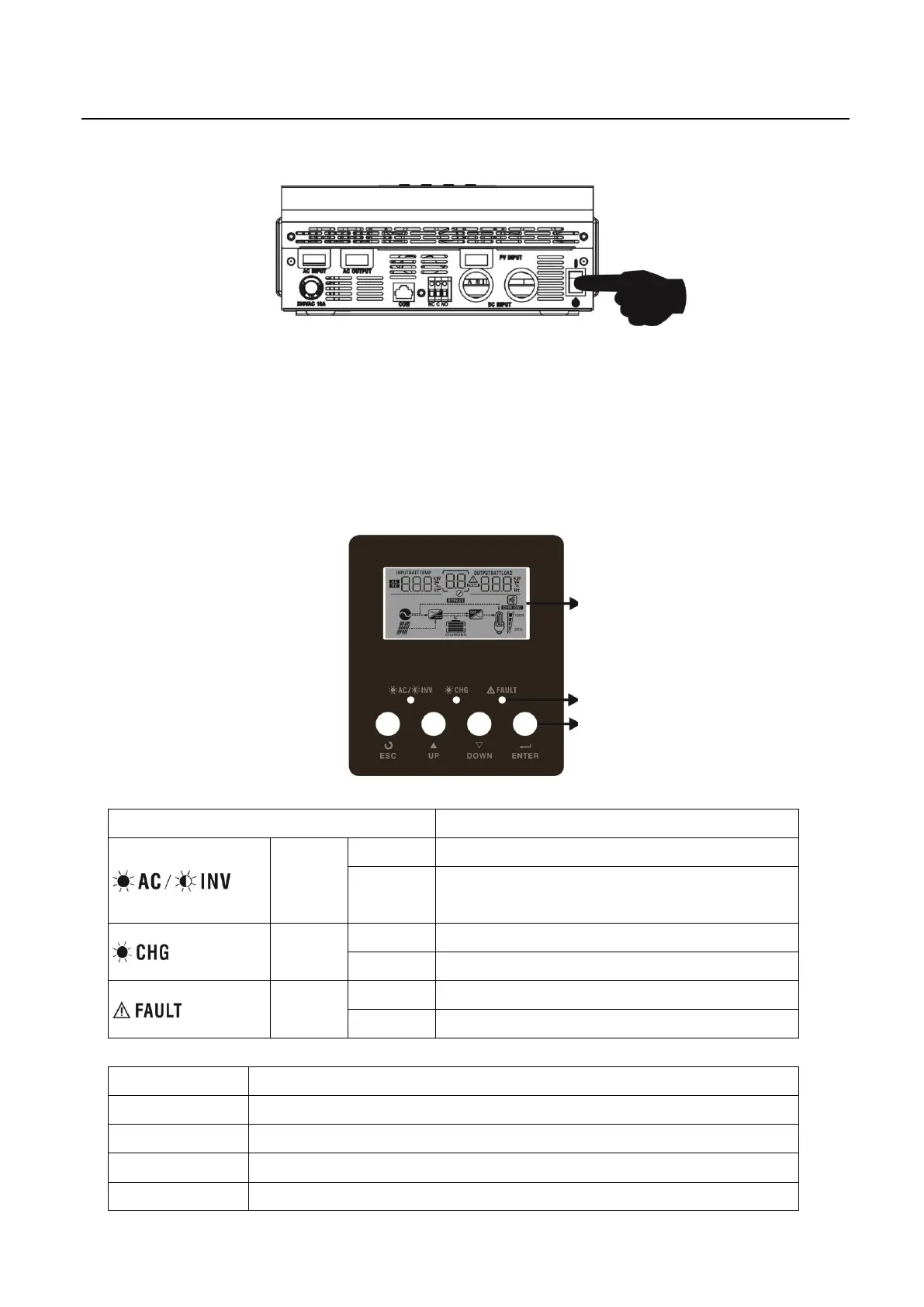

Operation and Display Panel
The operation and display panel, shown in the table below, is on the front panel of the inverter. It includes
three indicators, four function keys and an LCD display, indicating the operating status and input/output
power information.
LED Indicator
LED Indicator
Messages
Green
Solid On
The output is powered by utility in Line mode.
Flashing
The output is powered by battery or PV in battery
mode.
Green
Solid On
The battery is fully charged.
Flashing
The battery is charging.
Red
Solid On
A fault is occurring in the inverter.
Flashing
A warning condition is occurring in the inverter.
Function Keys
Function Key
Description
ESC
Exit setting mode
UP
Go to previous selection
DOWN
Go to next selection
ENTER
Confirm the selection in setting mode or enter setting mode
LCD display
LED indicators
Function keys
