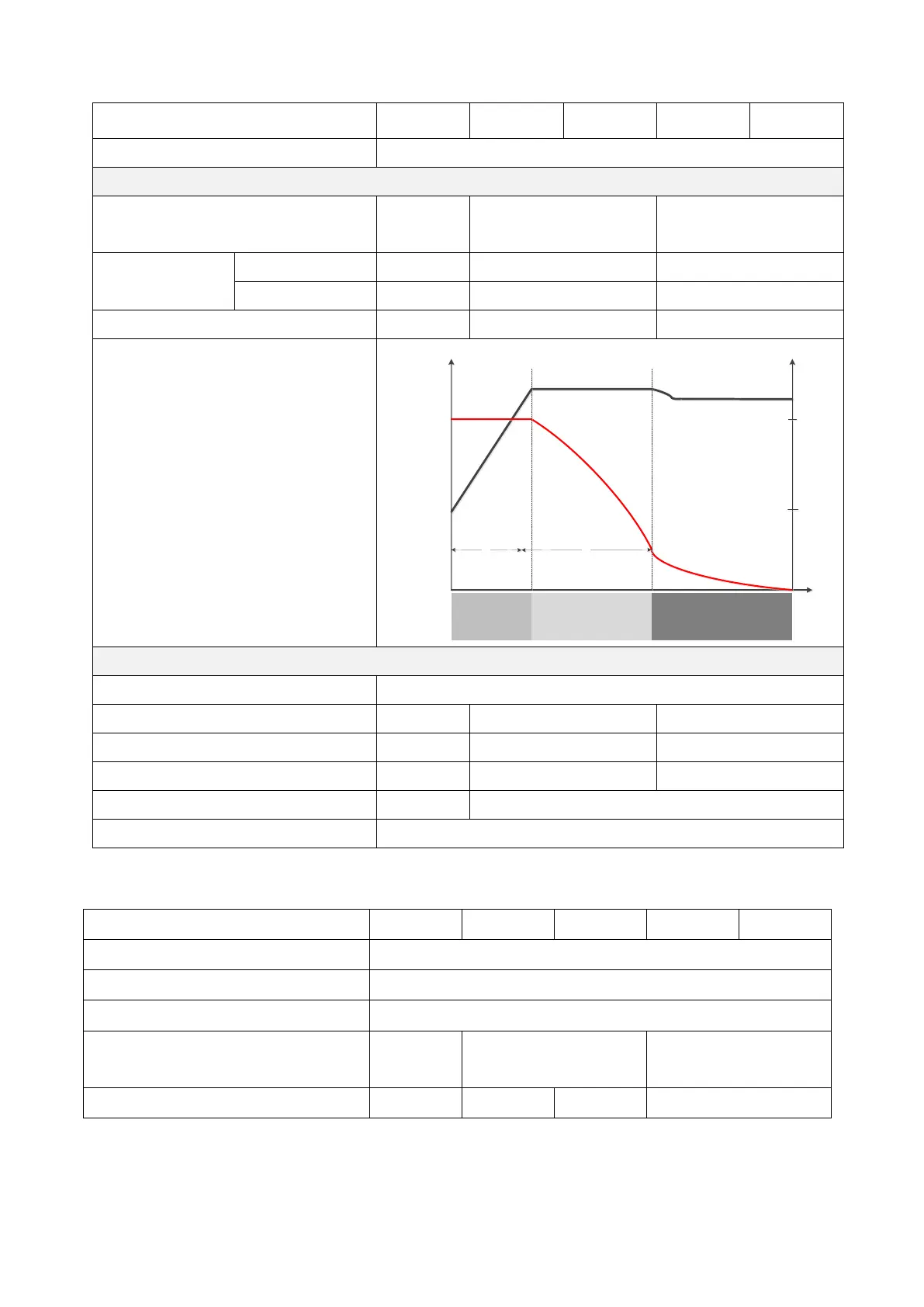

Table 3 Charge Mode Specifications
INVERTER MODEL
1KVA
2KVA
3KVA
4KVA
5KVA
Charging Algorithm
3-Step
Utility Charging Mode
AC Charging Current
10/20Amp
20/30Amp
(@V
I/P
=230Vac)
2/10/20/30Amp
(@V
I/P
=230Vac)
Bulk Charging
Voltage
Flooded Battery
14.6
29.2
58.4
AGM / Gel Battery
14.1
28.2
56.4
Floating Charging Voltage
13.5Vdc
27Vdc
54Vdc
Charging Curve
Time
Battery Voltage, per cell
Charging Current, %
100%
50%
Bulk
(Constant Current)
Absorption
(Constant Voltage)
Maintenance
(Floating)
Current
Voltage
T
1
T1 = 10* T0, minimum 10mins, maximum 8hrs
T
0
2.43Vdc (2.35Vdc)
2.25Vdc
Solar Charging Mode
Charging Current (PWM)
50Amp
System DC Voltage
12Vdc
24Vdc
48Vdc
Operating Voltage Range
15~18Vdc
30~32Vdc
60~72vdc
Max. PV Array Open Circuit Voltage
30Vdc
60Vdc
90Vdc
Standby Power Consumption
1W
2W
DC Voltage Accuracy
+/-0.3%
Table 4 General Specifications
INVERTER MODEL
1KVA
2KVA
3KVA
4KVA
5KVA
Safety Certification
CE
Operating Temperature Range
0°C to 55°C
Storage temperature
-15°C~ 60°C
Dimension (D*W*H), mm
95 x 240 x
316
100 x 272 x 355
120 x 295 x 468
Net Weight, kg
5.0
6.4
6.9
9.8
