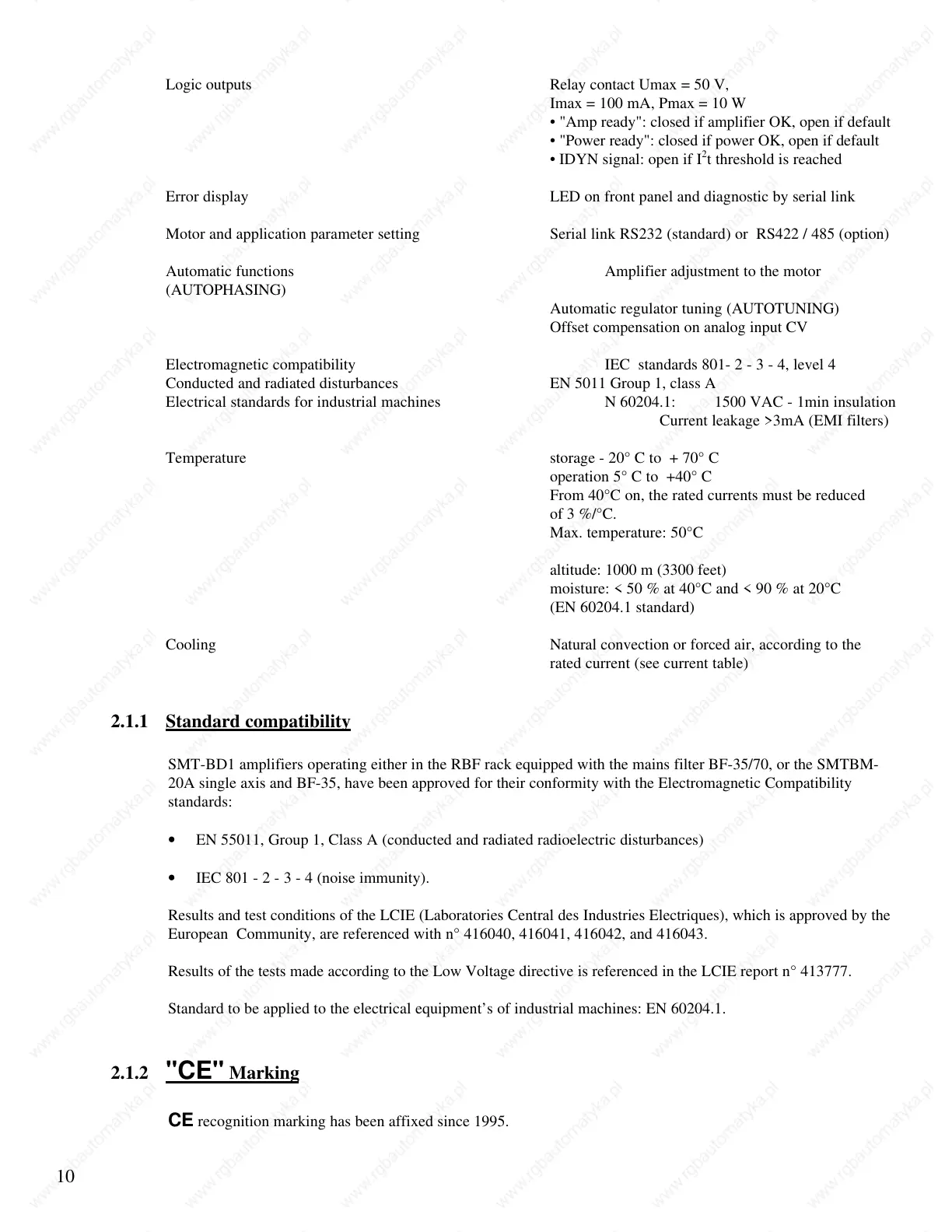

10
Logic outputs Relay contact Umax = 50 V,
Imax = 100 mA, Pmax = 10 W
• "Amp ready": closed if amplifier OK, open if default
• "Power ready": closed if power OK, open if default
IDYN signal: open if I
2
t threshold is reached
Error display LED on front panel and diagnostic by serial link
Motor and application parameter setting Serial link RS232 (standard) or RS422 / 485 (option)
Automatic functions Amplifier adjustment to the motor
(AUTOPHASING)
Automatic regulator tuning (AUTOTUNING)
Offset compensation on analog input CV
Electromagnetic compatibility IEC standards 801- 2 - 3 - 4, level 4
Conducted and radiated disturbances EN 5011 Group 1, class A
Electrical standards for industrial machines N 60204.1: 1500 VAC - 1min insulation
Current leakage >3mA (EMI filters)
Temperature storage - 20° C to + 70° C
operation 5° C to +40° C
From 40°C on, the rated currents must be reduced
of 3 %/°C.
Max. temperature: 50°C
altitude: 1000 m (3300 feet)
moisture: < 50 % at 40°C and < 90 % at 20°C
(EN 60204.1 standard)
Cooling Natural convection or forced air, according to the
rated current (see current table)
2.1.1 Standard compatibility
SMT-BD1 amplifiers operating either in the RBF rack equipped with the mains filter BF-35/70, or the SMTBM-
20A single axis and BF-35, have been approved for their conformity with the Electromagnetic Compatibility
standards:
EN 55011, Group 1, Class A (conducted and radiated radioelectric disturbances)
IEC 801 - 2 - 3 - 4 (noise immunity).
Results and test conditions of the LCIE (Laboratories Central des Industries Electriques), which is approved by the
European Community, are referenced with n° 416040, 416041, 416042, and 416043.
Results of the tests made according to the Low Voltage directive is referenced in the LCIE report n° 413777.
Standard to be applied to the electrical equipment’s of industrial machines: EN 60204.1.
2.1.2 "CE" Marking
CE recognition marking has been affixed since 1995.
