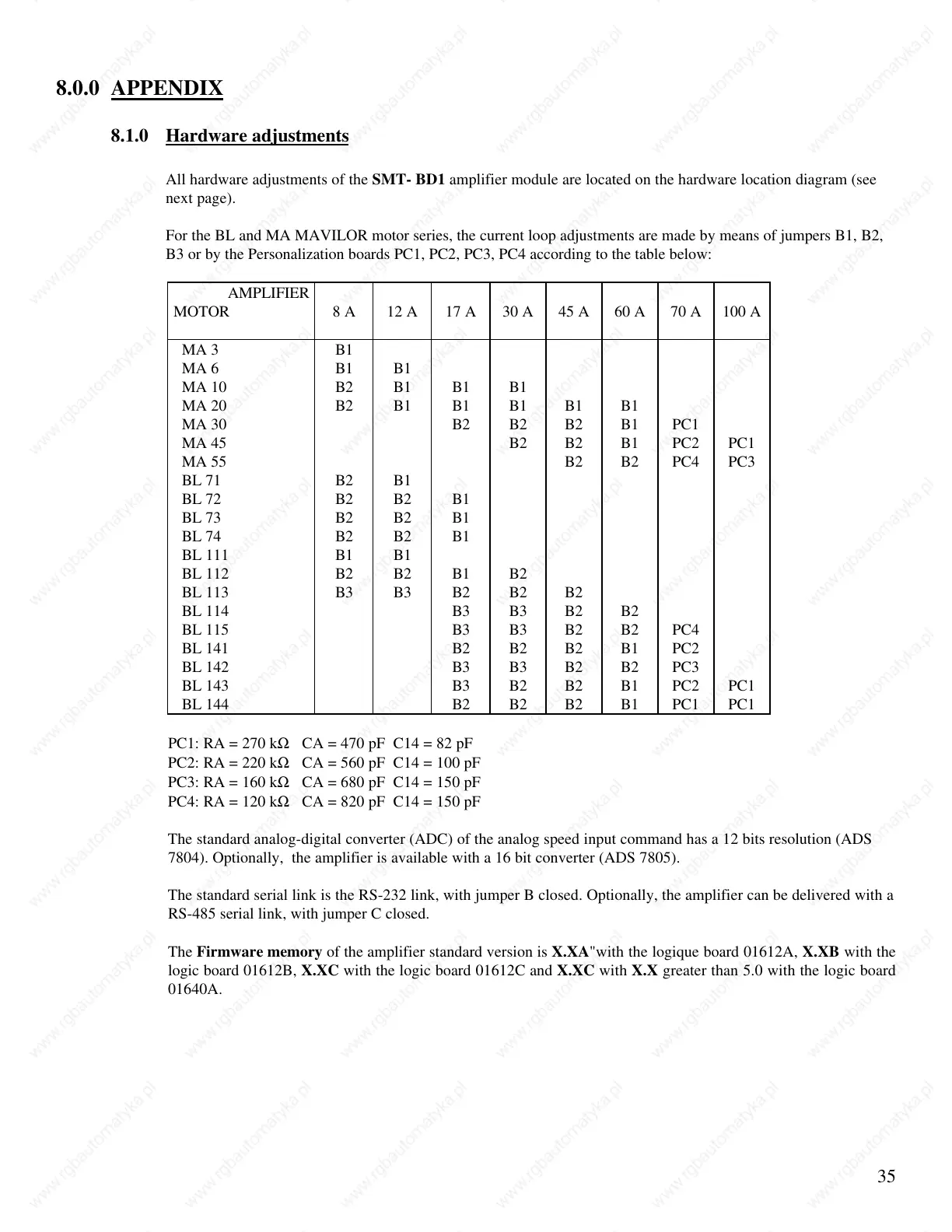

8.0.0 APPENDIX
8.1.0 Hardware adjustments
All hardware adjustments of the SMT- BD1 amplifier module are located on the hardware location diagram (see
next page).
For the BL and MA MAVILOR motor series, the current loop adjustments are made by means of jumpers B1, B2,
B3 or by the Personalization boards PC1, PC2, PC3, PC4 according to the table below:
AMPLIFIER
MOTOR 8 A 12 A 17 A 30 A 45 A 60 A 70 A 100 A
MA 3 B1
MA 6 B1 B1
MA 10 B2 B1 B1 B1
MA 20 B2 B1 B1 B1 B1 B1
MA 30 B2 B2 B2 B1 PC1
MA 45 B2 B2 B1 PC2 PC1
MA 55 B2 B2 PC4 PC3
BL 71 B2 B1
BL 72 B2 B2 B1
BL 73 B2 B2 B1
BL 74 B2 B2 B1
BL 111 B1 B1
BL 112 B2 B2 B1 B2
BL 113 B3 B3 B2 B2 B2
BL 114 B3 B3 B2 B2
BL 115 B3 B3 B2 B2 PC4
BL 141 B2 B2 B2 B1 PC2
BL 142 B3 B3 B2 B2 PC3
BL 143 B3 B2 B2 B1 PC2 PC1
BL 144 B2 B2 B2 B1 PC1 PC1
PC1: RA = 270 kΩ CA = 470 pF C14 = 82 pF
PC2: RA = 220 kΩ CA = 560 pF C14 = 100 pF
PC3: RA = 160 kΩ CA = 680 pF C14 = 150 pF
PC4: RA = 120 kΩ CA = 820 pF C14 = 150 pF
The standard analog-digital converter (ADC) of the analog speed input command has a 12 bits resolution (ADS
7804). Optionally, the amplifier is available with a 16 bit converter (ADS 7805).
The standard serial link is the RS-232 link, with jumper B closed. Optionally, the amplifier can be delivered with a
RS-485 serial link, with jumper C closed.
The Firmware memory of the amplifier standard version is X.XA"with the logique board 01612A, X.XB with the
logic board 01612B, X.XC with the logic board 01612C and X.XC with X.X greater than 5.0 with the logic board
01640A.
