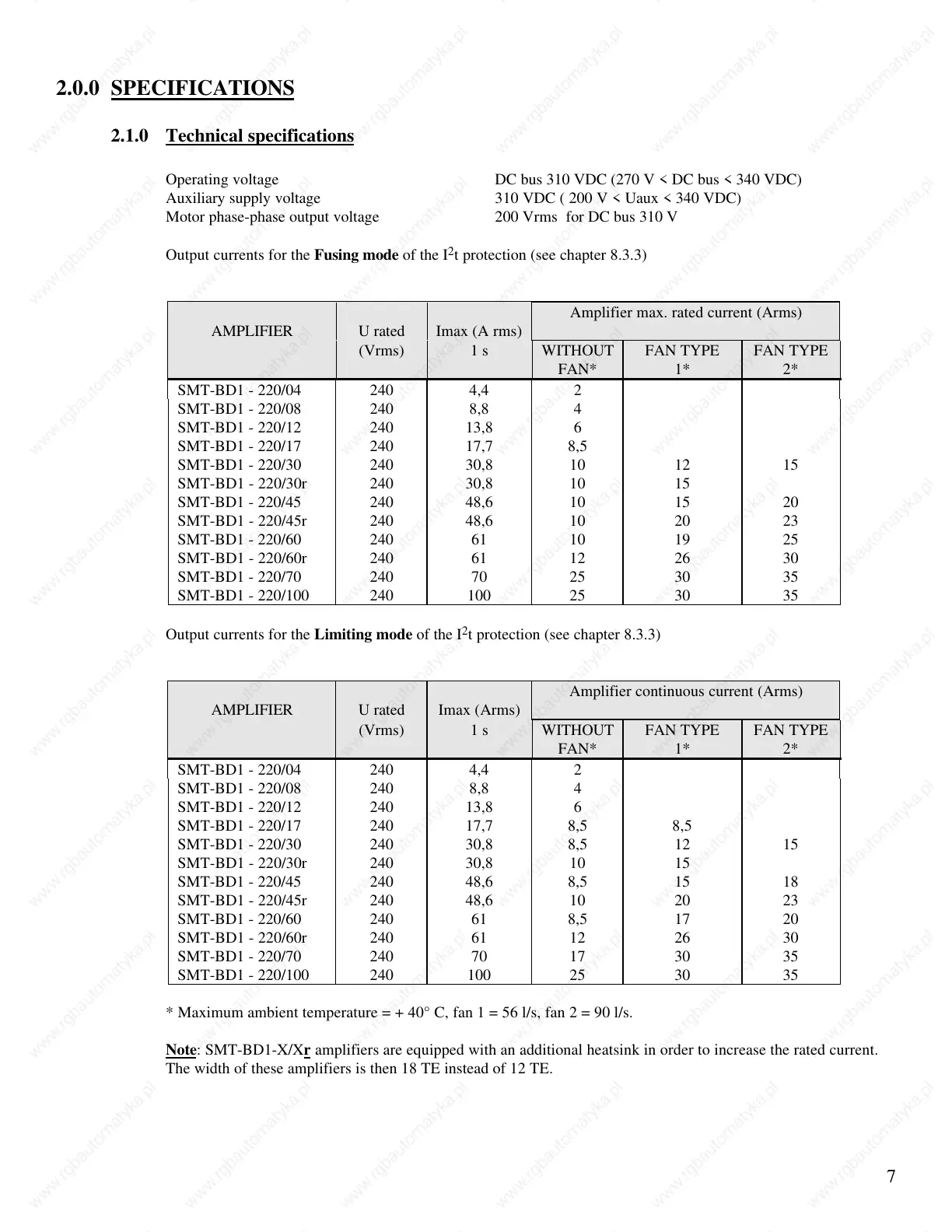

2.0.0 SPECIFICATIONS
2.1.0 Technical specifications
Operating voltage DC bus 310 VDC (270 V < DC bus < 340 VDC)
Auxiliary supply voltage 310 VDC ( 200 V < Uaux < 340 VDC)
Motor phase-phase output voltage 200 Vrms for DC bus 310 V
Output currents for the Fusing mode of the I
2
t protection (see chapter 8.3.3)
AMPLIFIER U rated Imax (A rms)
Amplifier max. rated current (Arms)
(Vrms) 1 s WITHOUT
FAN*
FAN TYPE
1*
FAN TYPE
2*
SMT-BD1 - 220/04 240 4,4 2
SMT-BD1 - 220/08 240 8,8 4
SMT-BD1 - 220/12 240 13,8 6
SMT-BD1 - 220/17 240 17,7 8,5
SMT-BD1 - 220/30 240 30,8 10 12 15
SMT-BD1 - 220/30r 240 30,8 10 15
SMT-BD1 - 220/45 240 48,6 10 15 20
SMT-BD1 - 220/45r 240 48,6 10 20 23
SMT-BD1 - 220/60 240 61 10 19 25
SMT-BD1 - 220/60r 240 61 12 26 30
SMT-BD1 - 220/70 240 70 25 30 35
SMT-BD1 - 220/100 240 100 25 30 35
Output currents for the Limiting mode of the I
2
t protection (see chapter 8.3.3)
AMPLIFIER U rated Imax (Arms)
Amplifier continuous current (Arms)
(Vrms) 1 s WITHOUT
FAN*
FAN TYPE
1*
FAN TYPE
2*
SMT-BD1 - 220/04 240 4,4 2
SMT-BD1 - 220/08 240 8,8 4
SMT-BD1 - 220/12 240 13,8 6
SMT-BD1 - 220/17 240 17,7 8,5 8,5
SMT-BD1 - 220/30 240 30,8 8,5 12 15
SMT-BD1 - 220/30r 240 30,8 10 15
SMT-BD1 - 220/45 240 48,6 8,5 15 18
SMT-BD1 - 220/45r 240 48,6 10 20 23
SMT-BD1 - 220/60 240 61 8,5 17 20
SMT-BD1 - 220/60r 240 61 12 26 30
SMT-BD1 - 220/70 240 70 17 30 35
SMT-BD1 - 220/100 240 100 25 30 35
* Maximum ambient temperature = + 40° C, fan 1 = 56 l/s, fan 2 = 90 l/s.
Note: SMT-BD1-X/Xr amplifiers are equipped with an additional heatsink in order to increase the rated current.
The width of these amplifiers is then 18 TE instead of 12 TE.
